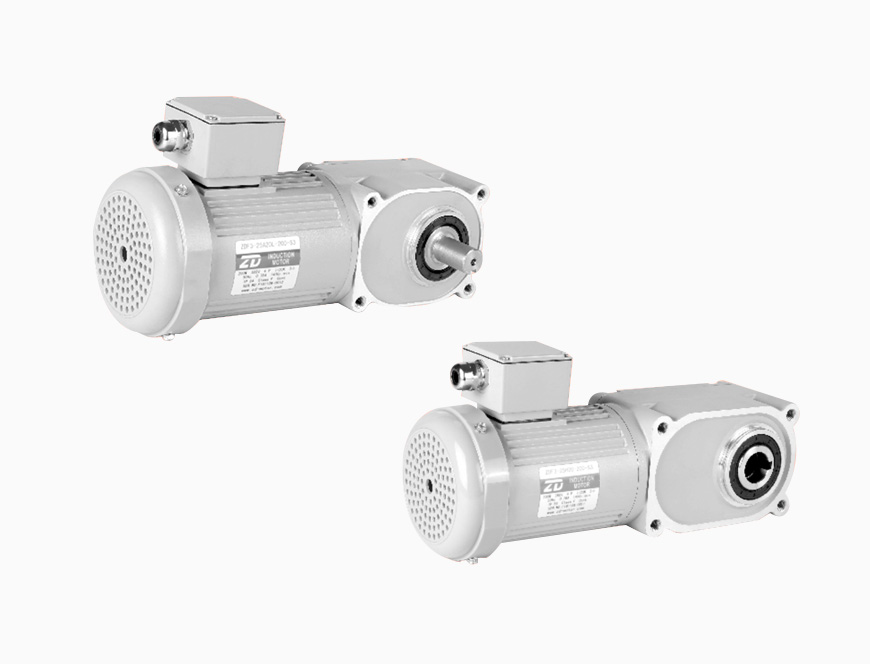

ZDF3 200W Hypoid Gear Motor Suppliers

Home / Products / ZDF2、ZDF3 Hypoid Gear Motor / ZDF3 Hypoid Gear Motor / ZDF3 200W Hypoid Gear Motor

Model

Output Power

Voltage

Frequency

Rated Current

Rated Torque

Rated Speed

Locked Rotor Torque

Locked Rotor Current

Insulation Grade

W

V

Hz

A

N.m

r/min

N.m

A

ZDF3-25H☐-200-S(B)
ZDF3-30H☐-200-S(B)

200

200

60

1.10

1.12

1700

2.25

4.93

F

220

50

1.35

1.36

1400

3.50

5.40

ZDF3-25H☐-200-S3(B)
ZDF3-30H☐-200-S3(B)

380

50

0.78

1.36

1400

3.50

3.10

460

60

0.78

1.12

1740

3.80

3.75



Model

Output Power

Voltage

Frequency

Rated Current

Rated Torque

Rated Speed

Locked Rotor Torque

Locked Rotor Current

Insulation Grade

W

V

Hz

A

N.m

r/min

N.m

A

ZDF3-22A☐-200-S(B)
ZDF3-28A☐-200-S(B)

200

200

60

1.10

1.12

1700

2.25

4.93

F

220

50

1.35

1.36

1400

3.50

5.40

ZDF3-22A☐-200-S3(B)
ZDF3-28A☐-200-S3(B)

380

50

0.78

1.36

1400

3.50

3.10

460

60

0.78

1.12

1740

3.80

3.75



Power

Aperture/Axis Diameter

ReductionRatio

Output Shaft Speed

Output Shaft Torque

Output Shaft Tolerance

Output Shaft Tolerance

r/min

N.m

kgf.m

Axial Force Load

W

mm

i

50Hz

50Hz

50Hz

N

kgf

N

kgf

200

25/22

5

300.0

5.5

0.560

1230

126

307

31

7.5

200.0

8

0.790

1370

140

342

35

10

150.0

11

1.130

1520

155

380

39

12

125.0

13

1.350

1620

165

405

41

15

100.0

17

1.690

1720

176

429

44

20

75.00

22

2.260

1860

190

466

48

25

60.00

28

2.820

2010

205

502

51

30

50.00

33

3.380

2110

215

527

54

40

37.50

44

4.510

2300

235

576

59

50

30.00

55

5.640

2450

250

613

63

60

25.00

66

6.770

2550

260

637

65

30/28

80

18.80

80

8.120

3090

315

775

79

100

15.00

99

10.15

3140

320

785

80

120

12.50

119

12.18

3140

320

785

80

160

9.400

159

16.24

3140

320

785

80

※200

7.500

184

18.80

3140

320

785

80

※240

6.300

184

18.80

3140

320

785

80



Note: The number for the torque limit model, please read this table.

■ ZDF3-25H5~60-200-S(B)    ZDF3-25H5~60-200-S3(B)





■ ZDF3-22A5~60LRT-200S-(B)    ZDF3-22A5~60LRT-200-S3(B)



■ ZDF3-30H80~240-200-S(B)    ZDF3-30H80~240-200-S3(B)



■ ZDF3-28A80~240LRT-200-S(B)      ZDF3-28A80~240LRT-200-S3(B)
