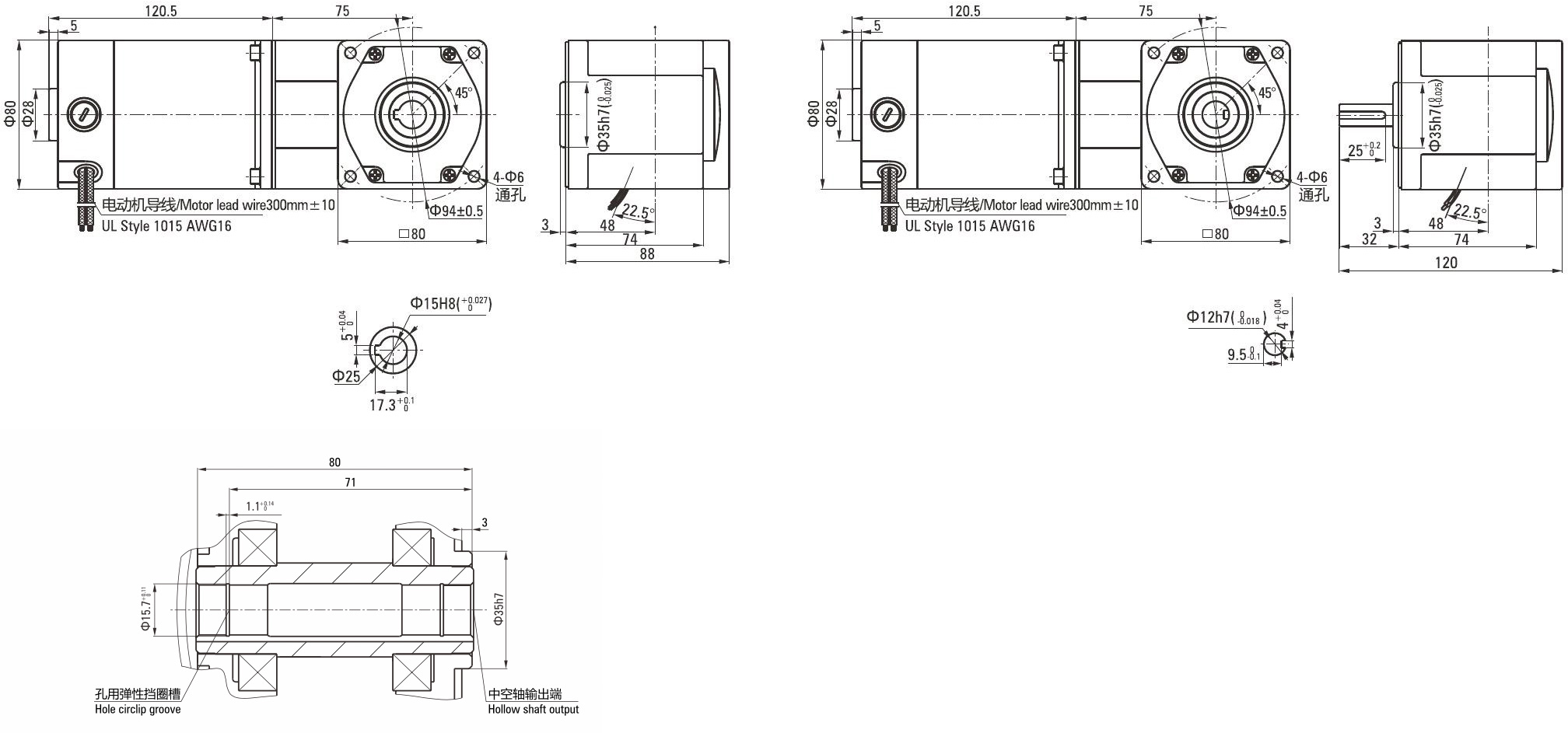

25W-80mm DC Spiral Bevel Right Angle Brush Gear Motor Suppliers

Home / Products / DC Gear Motors / Brush DC Gear Motors / 25W-80mm DC Spiral Bevel Right Angle Brush Gear Motor

•Gearhead and Intermediate gearhead are sold separately.

•Enter the reduction ratio into the blank(□) within the model name.

•The speed is calculated by dividing the motor's synchronous speed by the reduction ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

•To reduce the speed beyond the reduction ratio in the following table, attach an intermediate gearhead (reduction ratio: 10) between the reducer and motor. In that case, the permissible torque is 8 N.m.



Type Motor/Gearhead

Gear Ratio

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed r/min

380

316

228

190

158

114

95

79

57

47

38

31

28

23

19

15

Z4D25-24GN-28.5S

4GN□RC

4GN□RT

0.46

0.55

0.76

0.92

1.10

1.53

1.80

2.20

3.05

3.30

4.12

4.95

5.50

6.60

80.0

80.0

1.69

5.61

7.75

9.38

11.2

15.6

18.4

22.4

31.1

33.7

42.0

50.5

56.1

67.3

80.0

80.0
