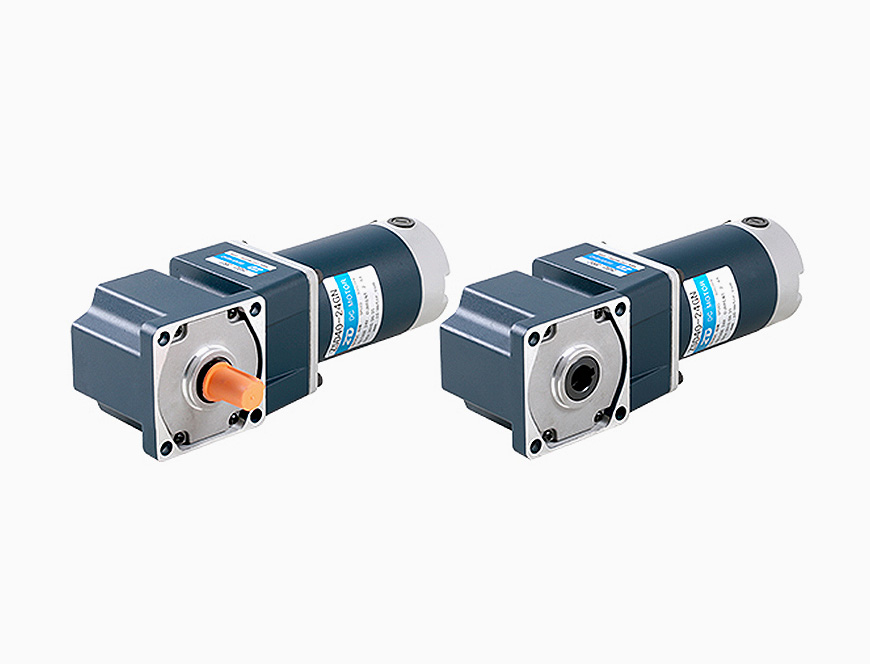

40W-90mm DC Spiral Bevel Right Angle Brush Gear Motor Suppliers

Home / Products / DC Gear Motors / Brush DC Gear Motors / 40W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

•Gearhead and Intermediate gearhead are sold separately.
•Enter the reduction ratio into the blank (□) within the model name.
•The speed is calculated by dividing the motor's synchronous speed by the reduction ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.
•To reduce the speed beyond the reduction ratio in the following table, attach an intermediate gearhead (reduction ratio: 10) between the reducer and motor. In that case, the permissible torque is 20 N.m.



Type  Motor/Gearhead

Gear Ratio

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed r/min

373

311

224

186

155

112

93

77

56

46

37

31

28

23

18

15

Z5D40-24GU-28S

5GU□RC

5GU□RT

0.75

0.90

1.24

1.49

1.79

2.32

2.78

3.01

4.18

5.37

6.71

8.06

8.95

10.7

13.4

16.1

7.65

9.18

12.6

15.2

18.3

23.7

28.4

30.7

42.6

54.8

68.4

82.2

91.3

109

137

164
