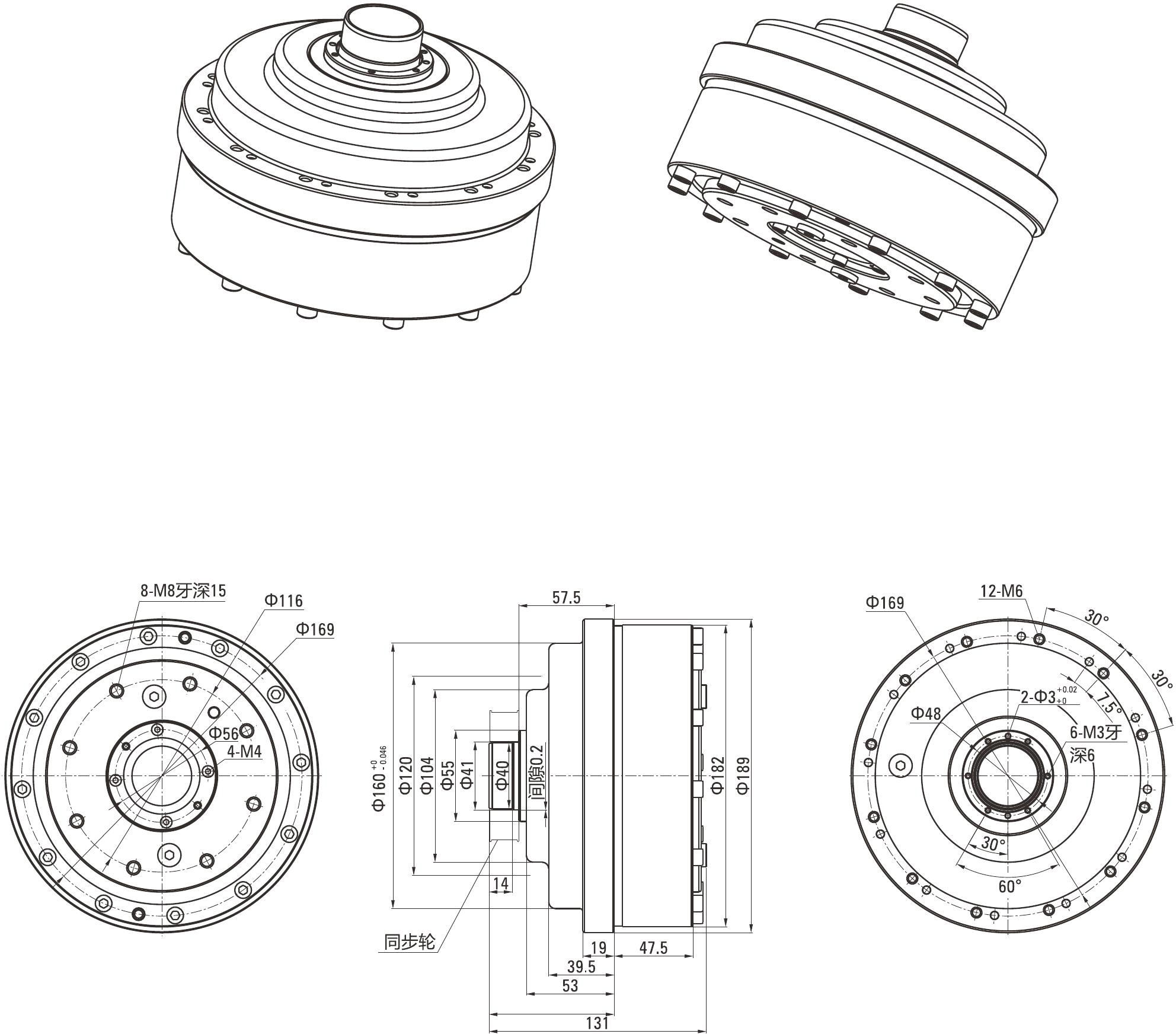

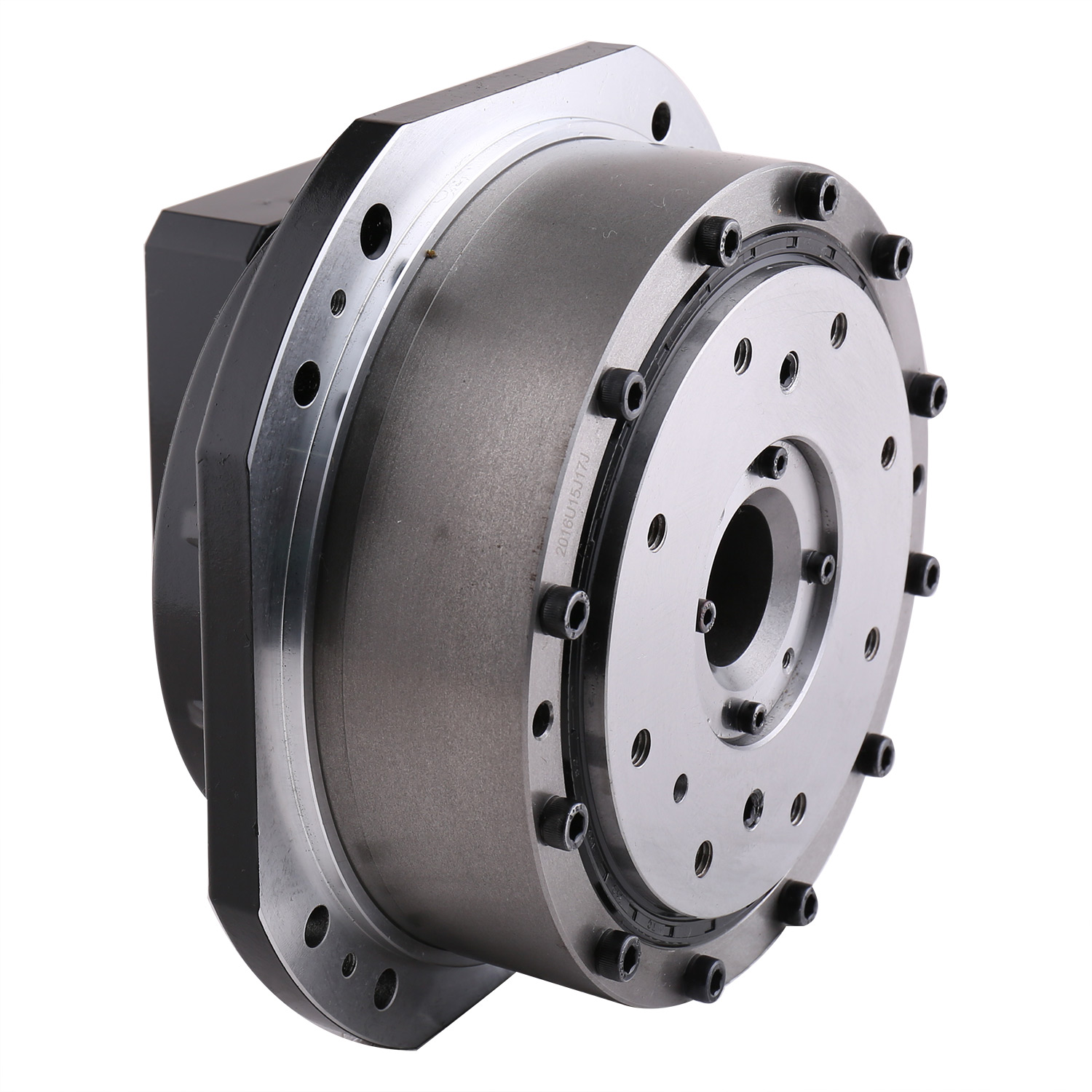

RVA-TB Series Outline Dimension Drawing

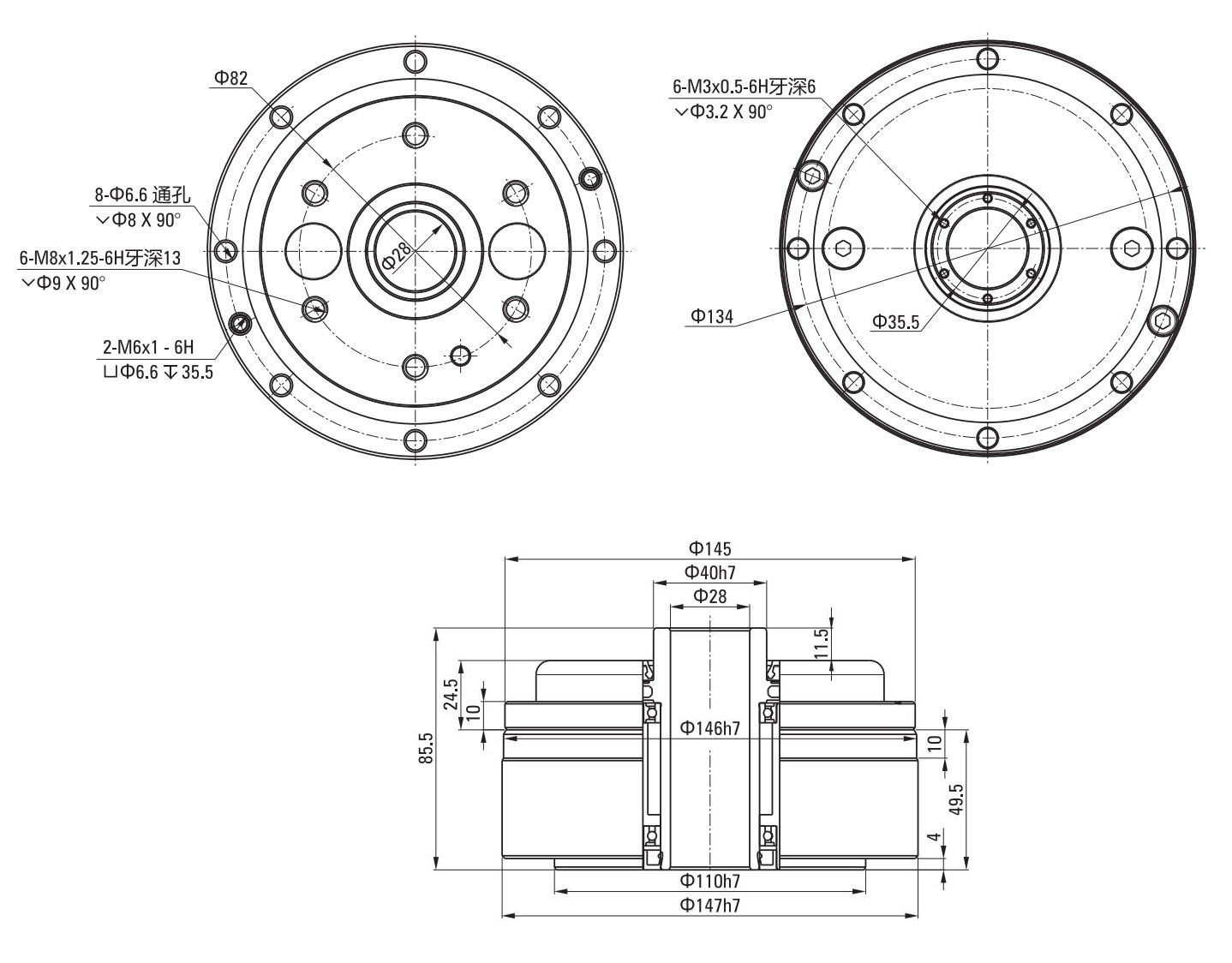

■10CBX-27-RCA-TB Outline Drawing





•Note:
1.This picture shows the hollow 10CBX reducer,the input end with timing pulley;
2.Reducer speed ratio: 27:1;
3.Grease:VIGO GREASE REO Or RE-00(MOLYWHITE);
4.Rated output torque: 98N.m (output speed:15R/Min);
5.The installation flanges shall be specially designed and manufactured to ensure the center distance and the relevant requirements of the PRCs;



■27CBX-36.57-RCA-TB Outline Drawing





•Note:
1.This picture shows the hollow 10CBX reducer,the input end with timing pulley;
2.Reducer speed ratio:27:1;
3.Grease:VIGO GREASE REO Or RE-00(MOLYWHITE);
4.Rated output torque:98N.m(output speed:15R/Min);
5.The installation flanges shall be specially designed and manufactured to ensure the center distance and the relevant requirements of the PRCs;

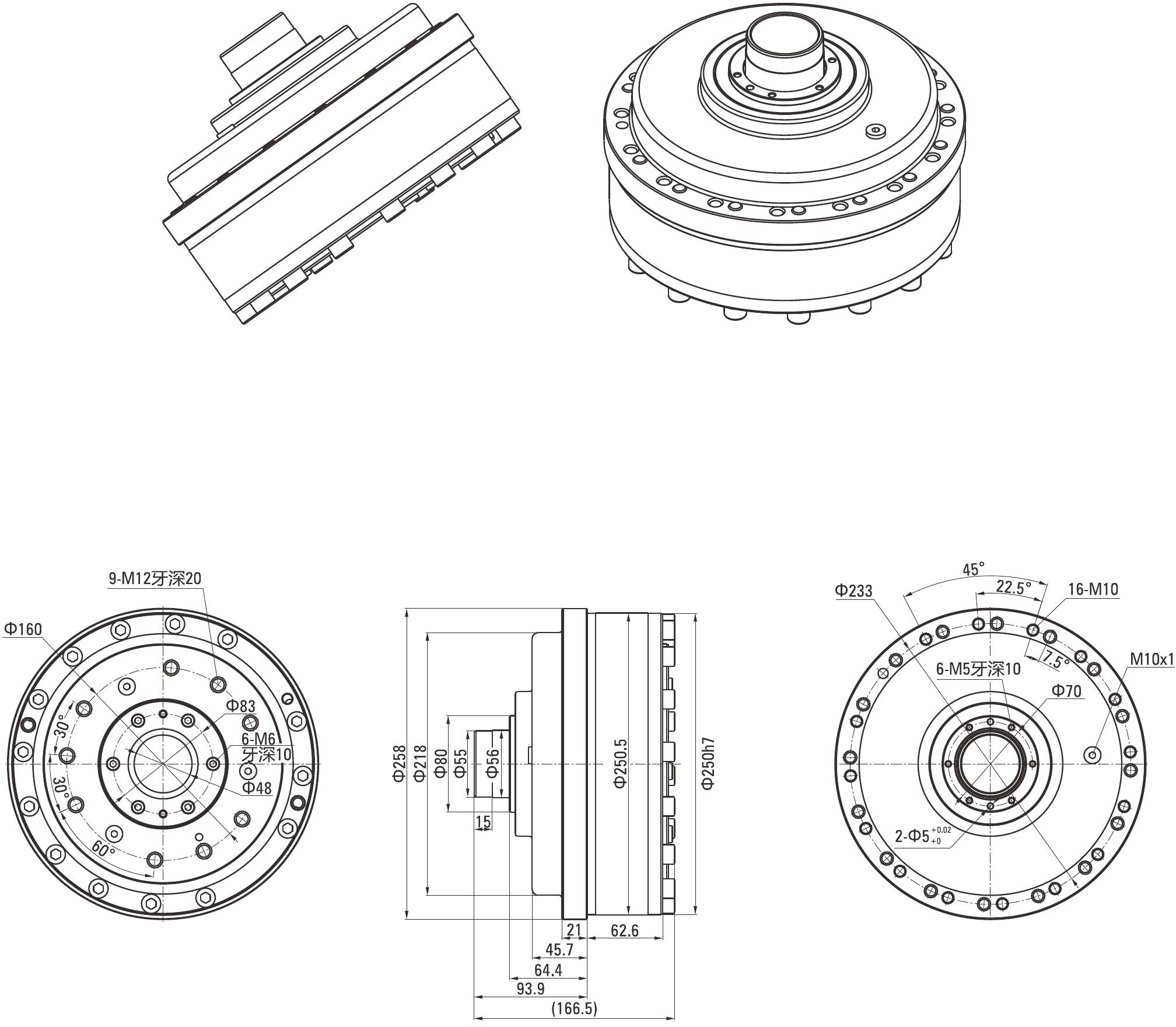

■50CBX-32.54-RCA-TB Outline Drawing





•Note:
1.The figure applies with timing pulley;
2.Reducer speed ratio:32.54:1;
3.Grease:VIGO GREASE REO Or RE-00(MOLYWHITE);
4.Rated output torque:498N.m (output speed:15R/Min);
5.System reduction ratio:32.54 multiplied by the speed ratio belt;

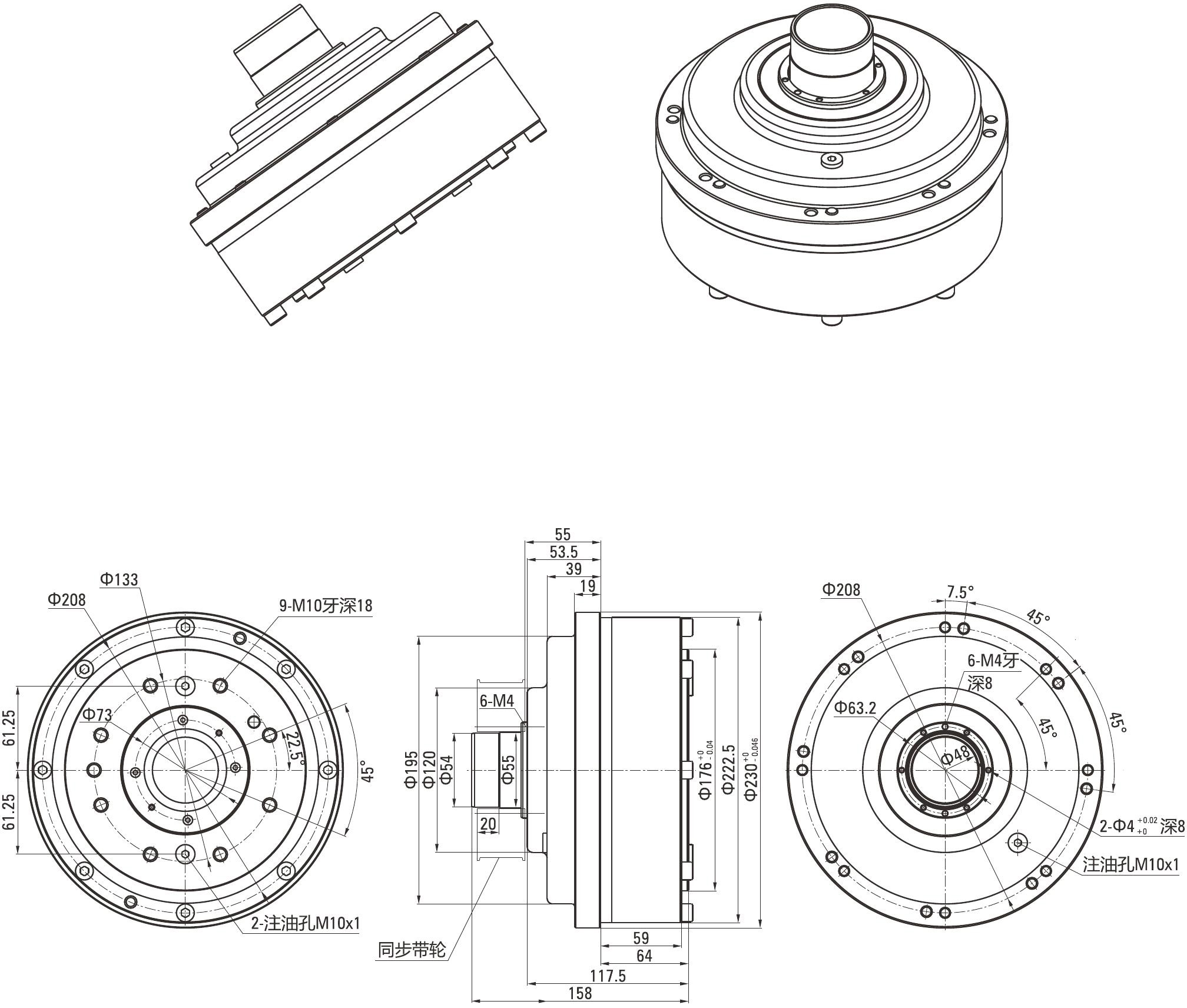

■100CBX-36.75-RCA-TB Outline Drawing





•Note:
1.The figure applies with timing pulley;
2.Reducer speed ratio:36.75:1;
3.Grease:VIGO GREASE REO Or RE-00(MOLYWHITE);
4.Rated output torque:980N.m (output speed:15R/Min);
5.System reduction ratio:36.75 multiplied by the speed ratio belt;
