REA Series Outline Dimension Drawing

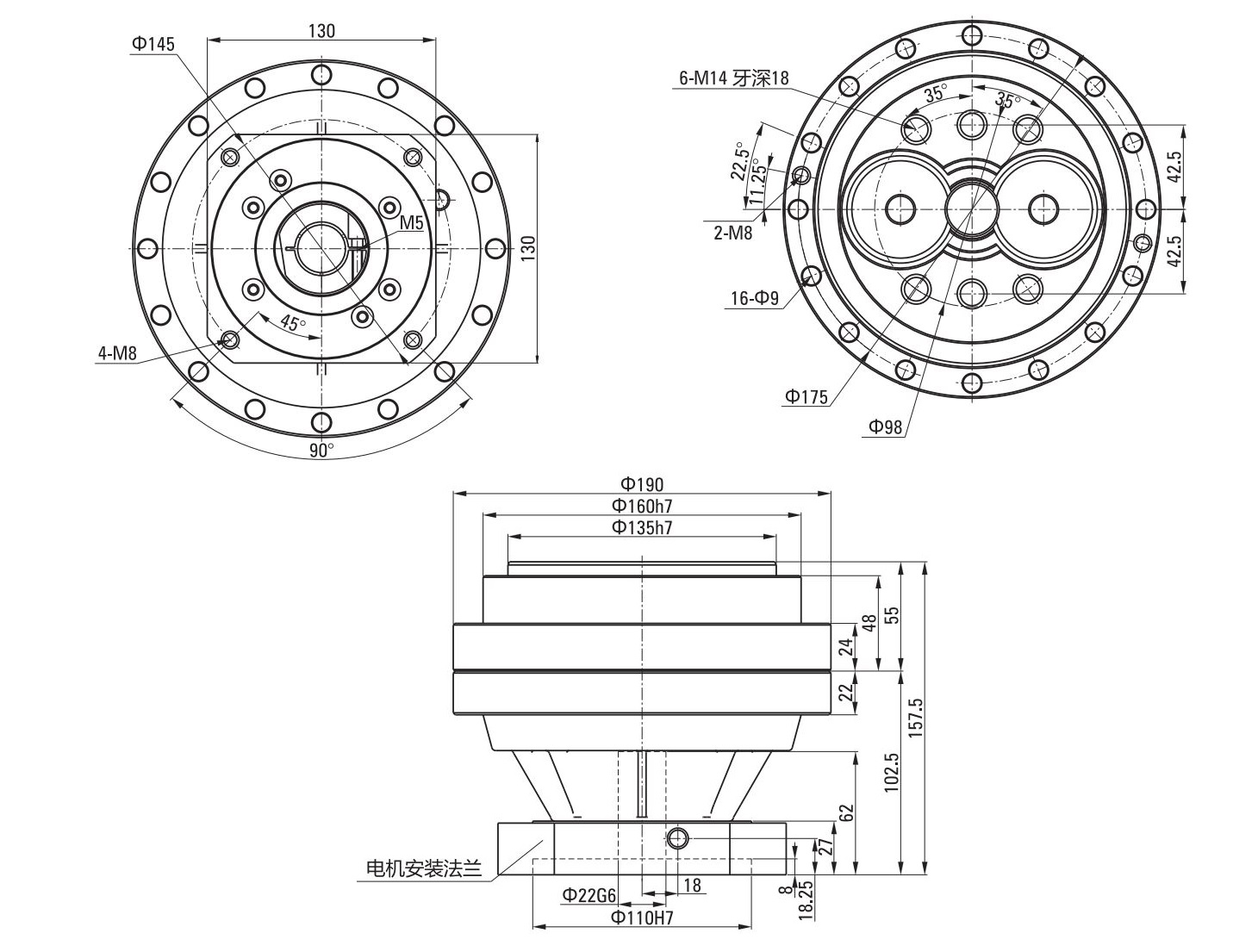

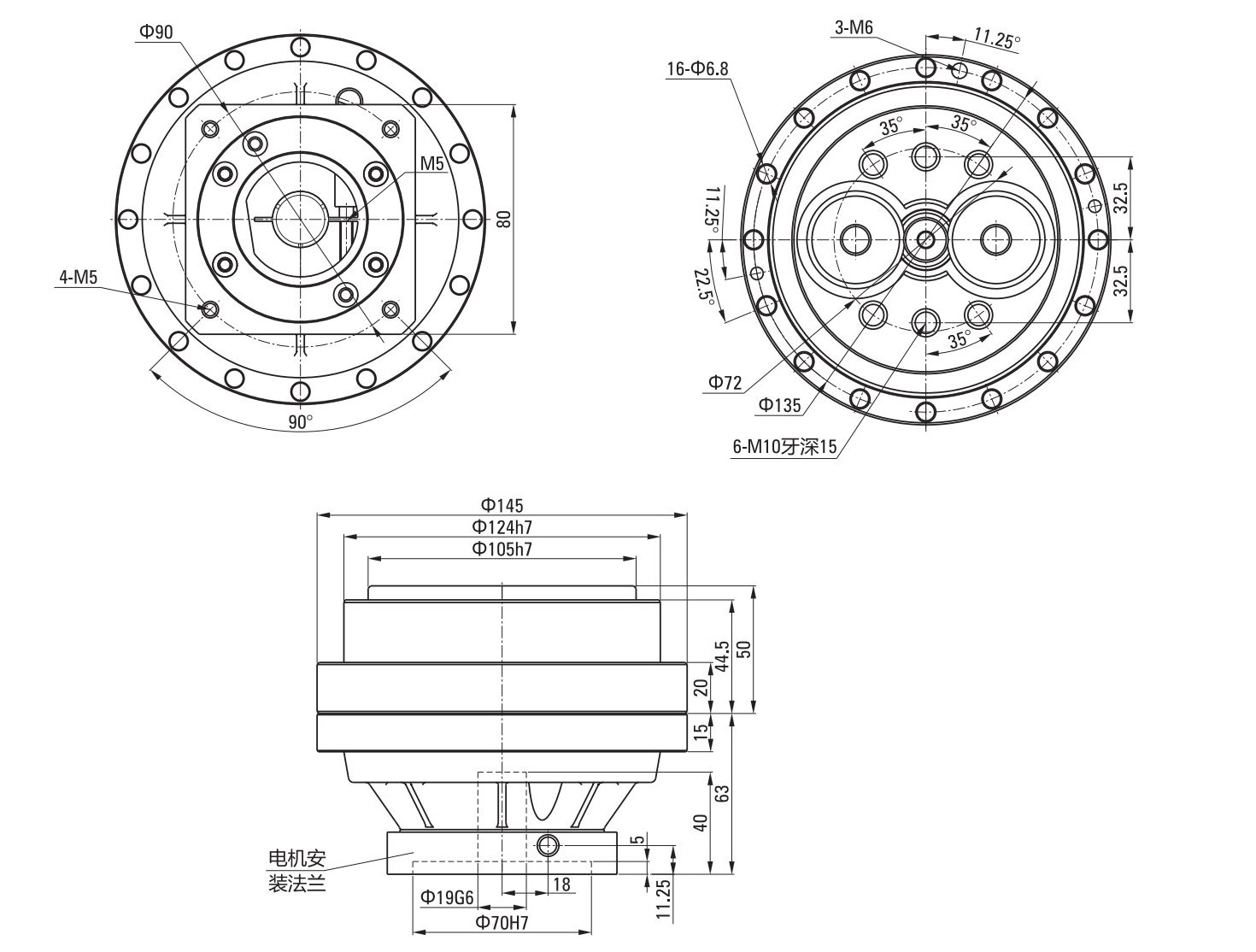

■150BX-REA-19 Outline Drawing





•Note:
1.This figure applies to the motor shatft:<=19×40L;motor shaft lock use locker.
2.Speed reduction ratio: (41,57,81,105,121,141,161): 1 (shaft output).
3.Lubricants: VIGO GREASE REO or RE-00 (MOLYWHITE).
4.Rated output torque: 196N.m (output speed: 15r/min).
5.Motor mounting flange according to motor model.

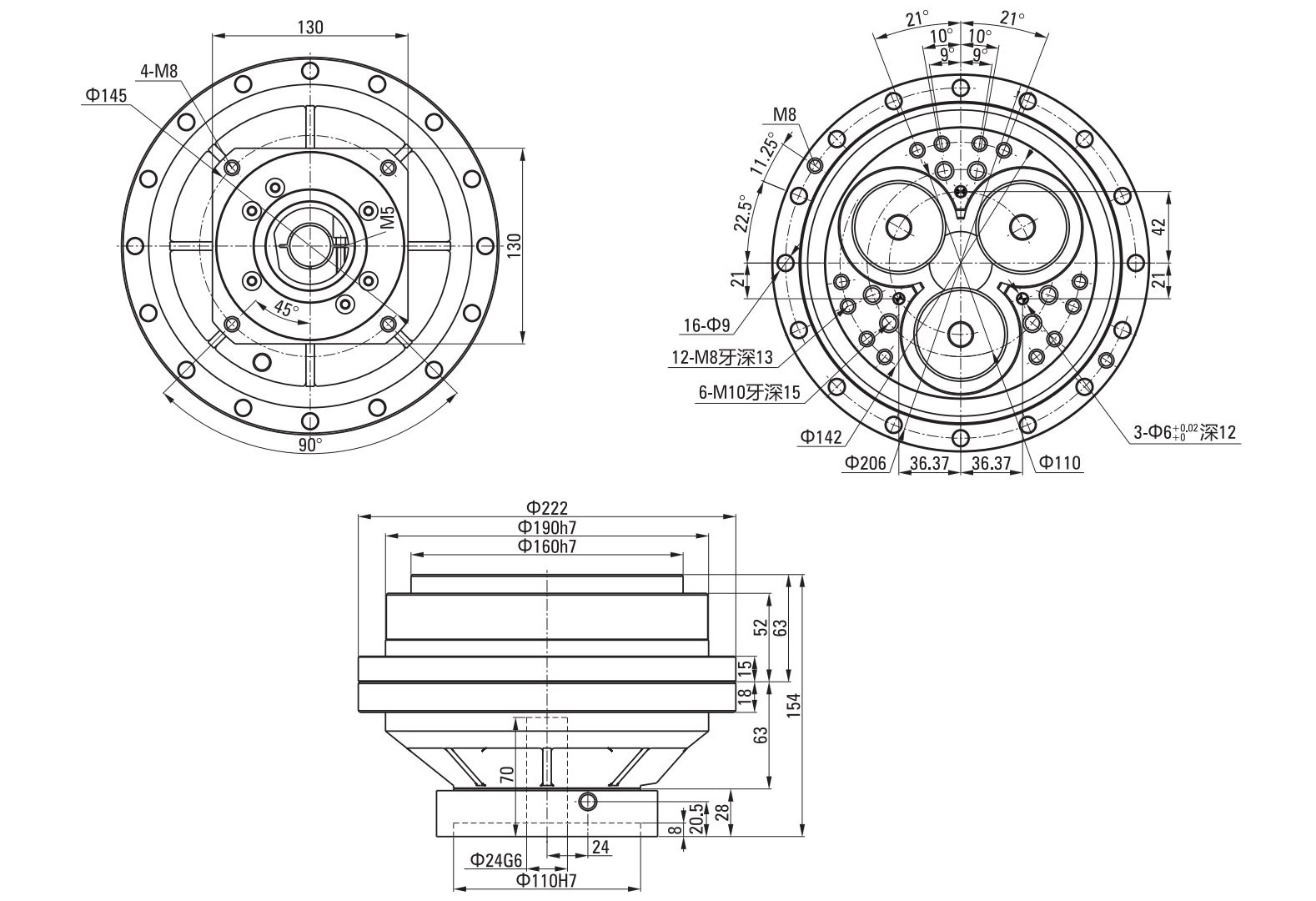

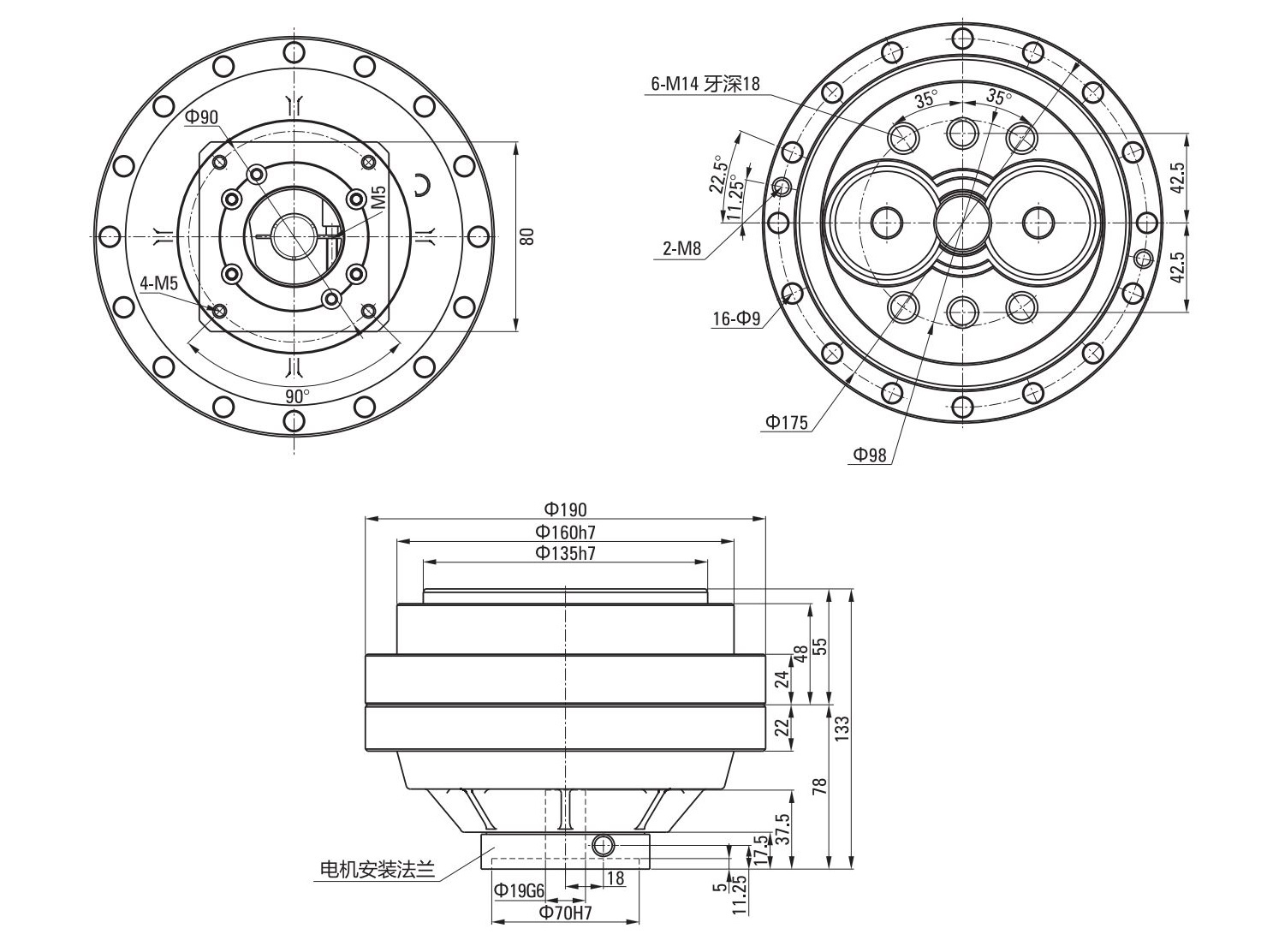

■190BX-REA-19 Outline Drawing





•Note:
1.This figure applies to the motor shaft:<=19×40L;motor shaft lock use locker.
2.Speed reduction ratio: (41,57,81,105,121,153): 1 (shaft output).
3.Lubricants: VIGO GREASE REO or RE-00 (MOLYWHITE).
4.Rated output torque: 392N.m (output speed: 15r/min).
5.Motor mounting flange according to motor model.



■190BX-REA-24 Outline Drawing





•Note:
1.This figure applies to the motor shaft:<=24×55L;motor shaft lock use locker.
2.Speed reduction ratio: (41,57,81,105,121,153): 1 (shaft output).
3.Lubricants: VIGO GREASE REO or RE-00 (MOLYWHITE).
4.Rated output torque: 392N.m (output speed: 15r/min).
5.Motor mounting flange according to motor model.

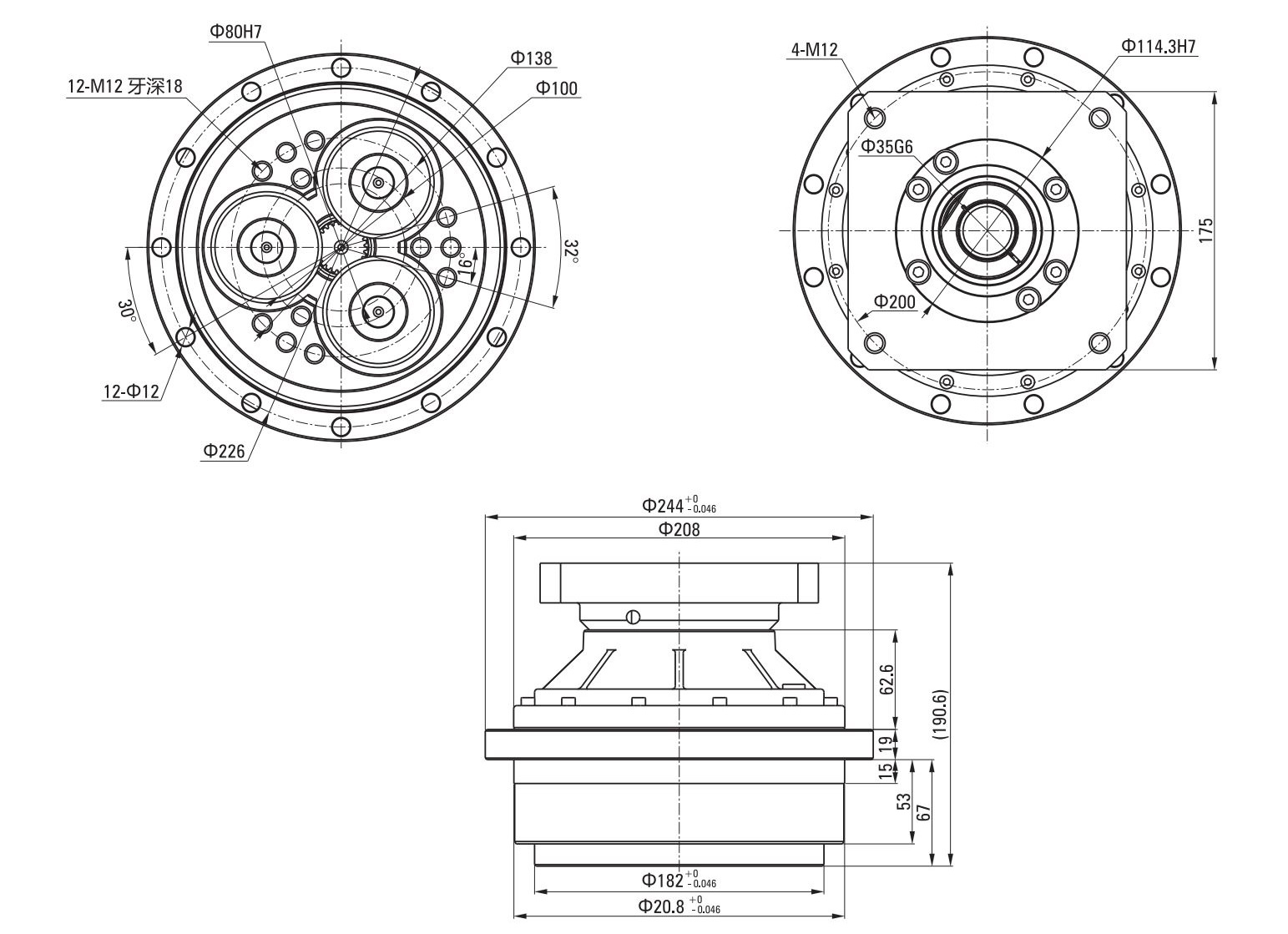

■220BX-REA-24 Outine Drawing





•Note:
1.This figure applies to the motor shaft:<=24×70L;motor shaft lock use locker.
2.Speed reduction ratio: (57,81,101,121,153): 1 (shaft output).
3.Lubricants: VIGO GREASE REO or RE-00 (MOLYWHITE).
4.Rated output torque: 784N.m (output speed: 15r/min).
5.Motor mounting flange according to motor model.

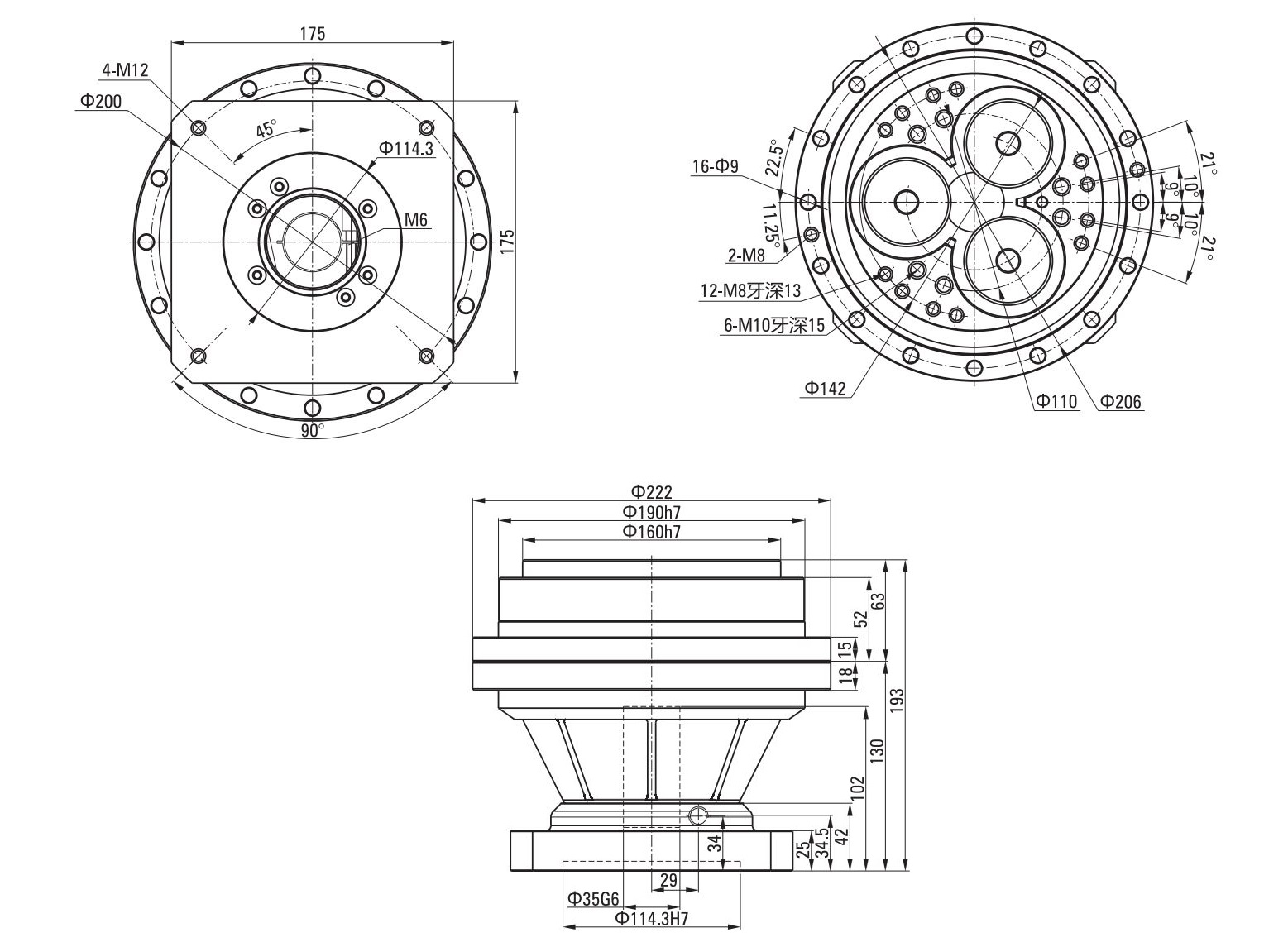

■220BX-REA-35 Outline Drawing





•Note:
1.This figure applies to the motor shaft:<=35×80L;motor shaft lock use locker.
2.Speed reduction ratio: (57,81,101,121,153): 1 (shaft output).
3.Lubricants: VIGO GREASE REO or RE-00 (MOLYWHITE).
4.Rated output torque: 784N.m (output speed: 15r/min); Allowable moment 1700N.m, allowable thrust 7400N.
5.Motor mounting flange according to motor model.

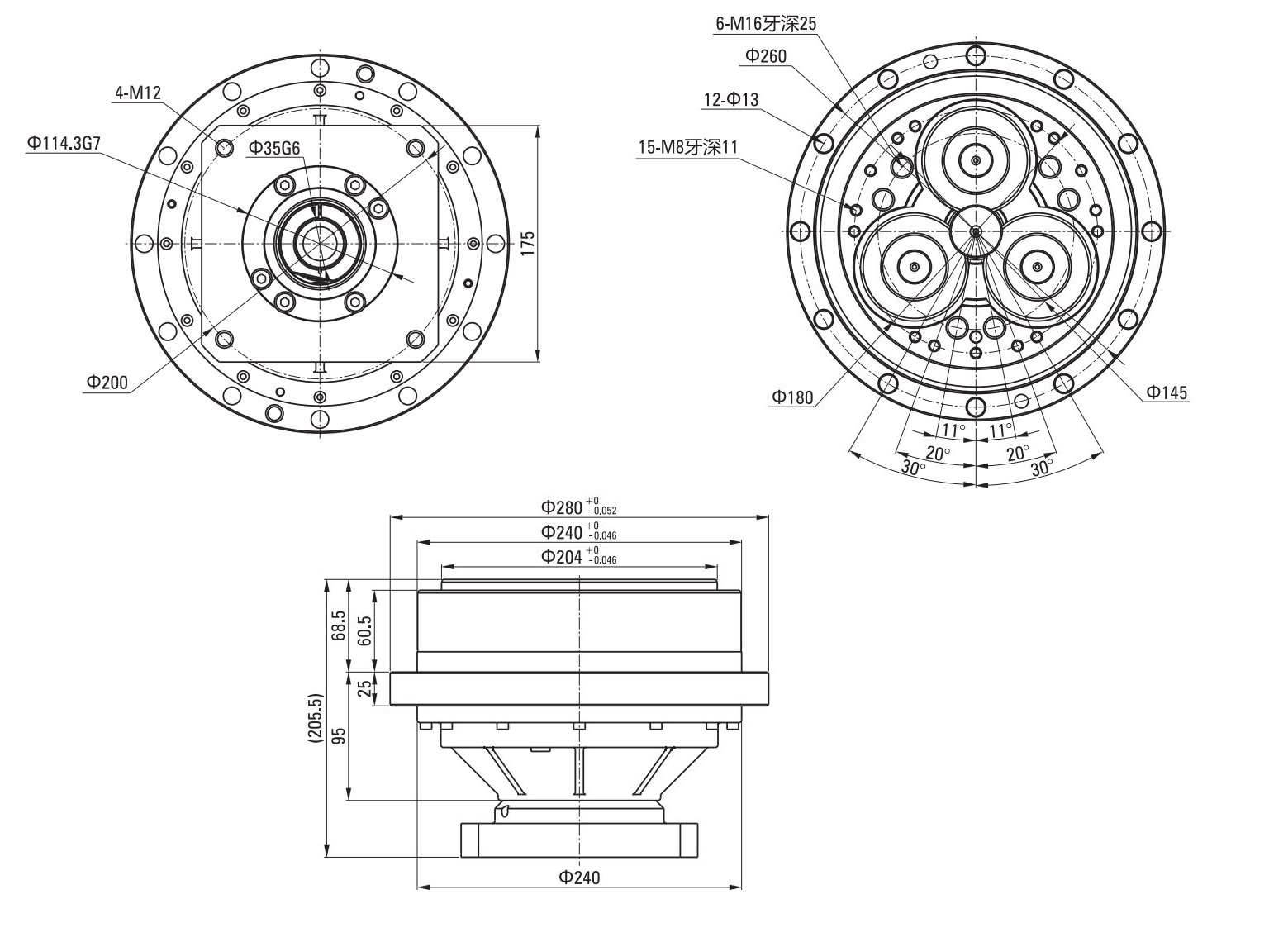

■250BX-REA Outline Drawing





•Note:
1.This figure applies to the motor shaft:<=35×70L;Motor shaft is locked by locker.
2.Speed reduction ratio:(81,111,161, 175.28):1(shaft output).
3.Lubricants:VIGO GREASE REO Or RE-00(MOLYWHITE).
4.Rated output torque:1078N.m(output speed:15R/Min).
5.Motor mounting flange according to motor model.



■280BX-REA Outline Drawing





•Note:
1.This figure applies to the motor shaft:<=35×70L;Motor shatt is locked by locker.
2.Speed reduction ratio:(81,101, 129,145, 171):1(shaft output).
3.Lubricants:VIGO GREASE REO Or RE-00(MOLYWHITE).
4.Rated output torque:1568N.m(output speed:15R/Min).
5.Motor mounting flange according to motor model.

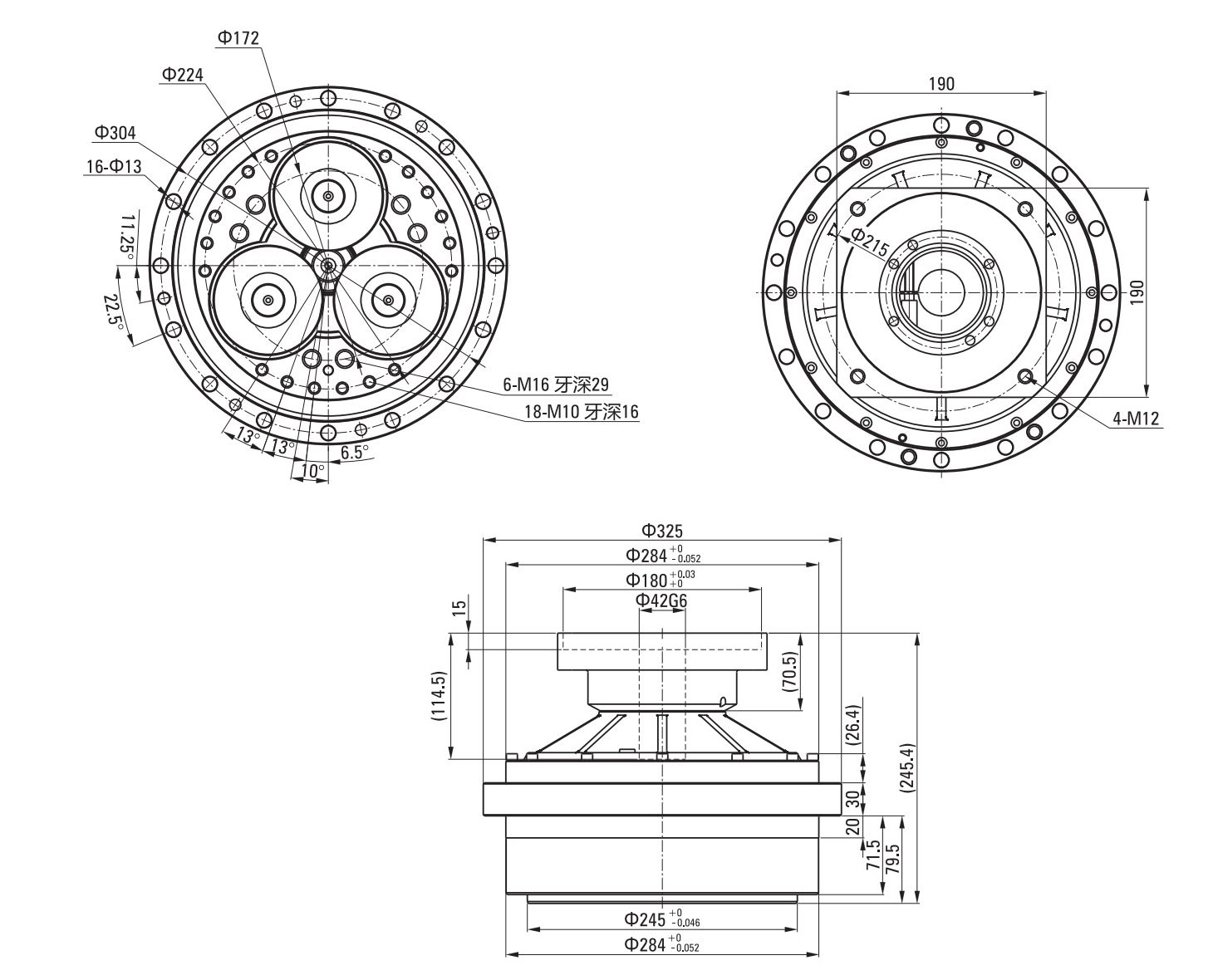

■320BX-REA Outline Drawing



•Note:
1.This figure applies to the motor shaft:<=42×114L;Motor shatt is locked by locker.
2.Speed reduction ratio:(81,101, 118.5, 129,141, 171, 185):1(shaft output).
3.Lubricants:VIGO GREASE REO Or RE-00(MOLYWHITE).
4.Rated output torque:3136N.m(output speed:15R/Min).
5.Motor mounting flange according to motor model.


REA Series Installation Drawing

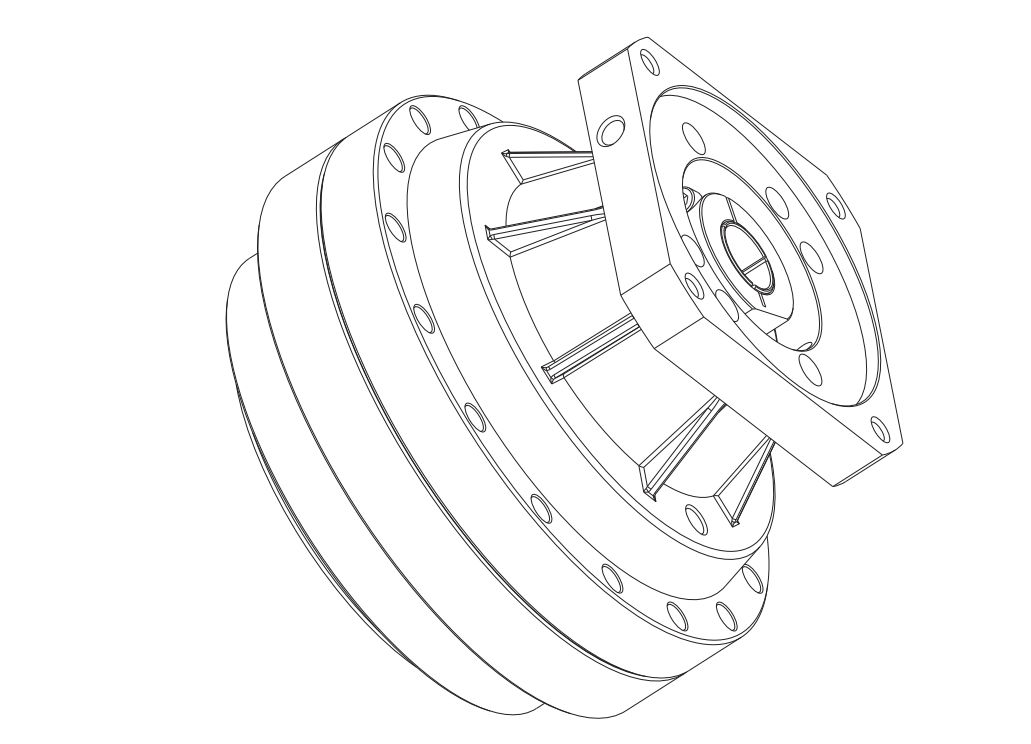

■REA Series Reducer

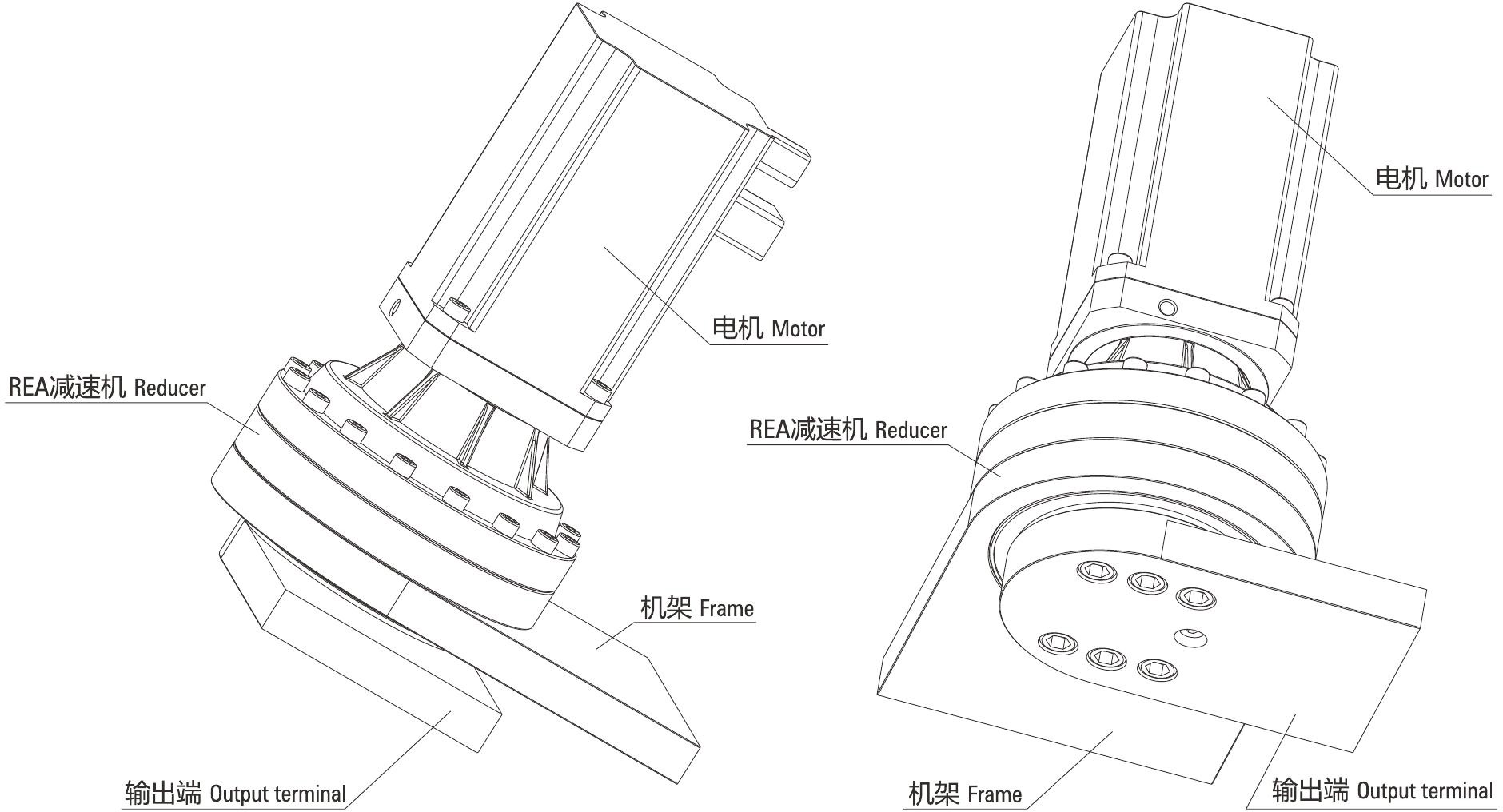

■REA Series Reducer Installation Example

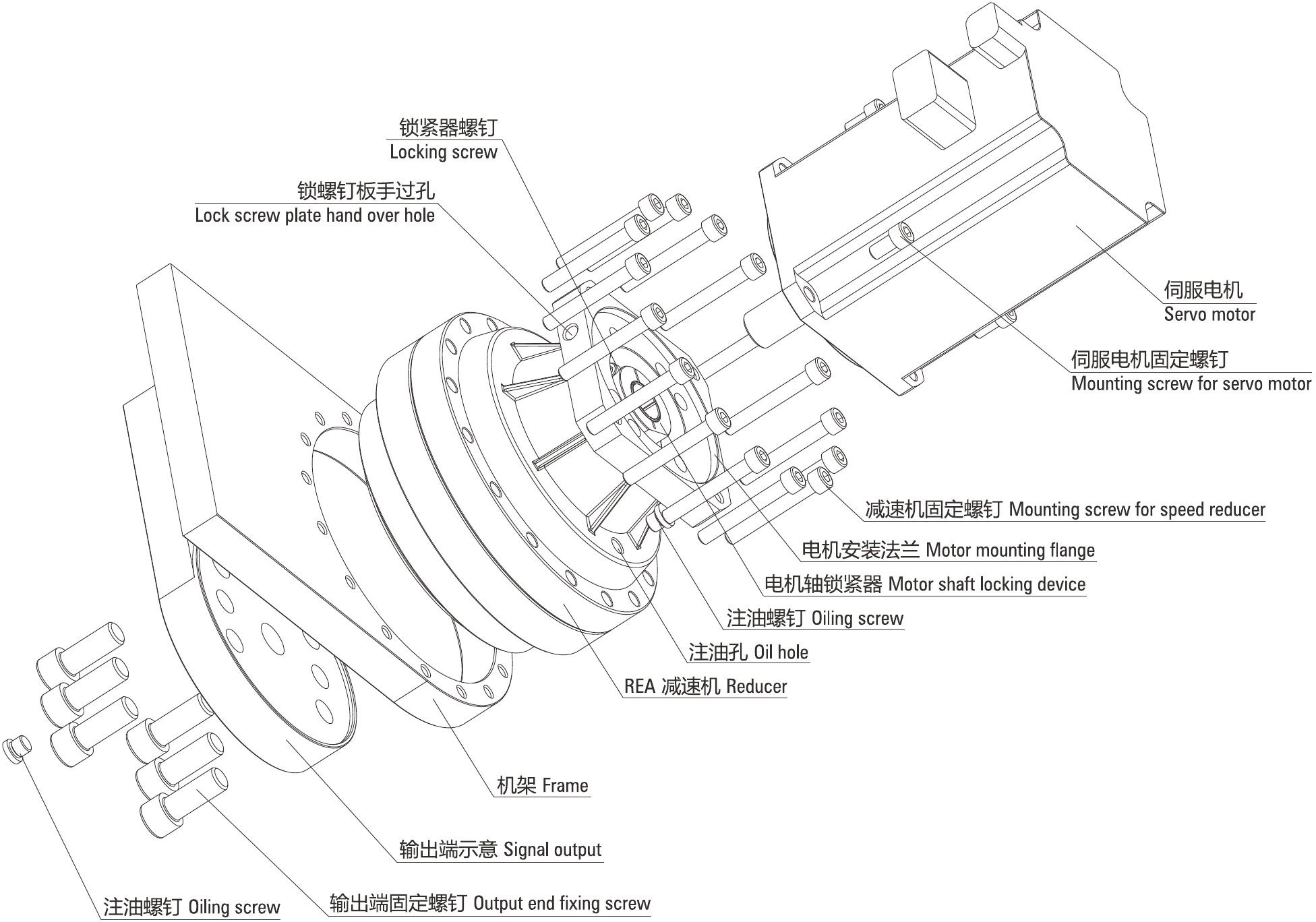

■REA Series Mounting Schematic Diagram(Disassemble Diagram)
