Power Steering Z90DPM24400-32S/90ZPM32K Suppliers

Home / Products / Intelligent Logistics / Power Steering / Power Steering Z90DPM24400-32S/90ZPM32K



Type Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength Insulation class

Z90DPM24400-32S

24VDC 400W 24A±10% 3200rpm±10% 1.19N.m ≤5.0A 3700rpm±10% S2(10min) >20MΩ 1500h 660V/S B
Protection grade Gearbox spec Reduction stage Gearbox direction Bearing type Gearbox structure
Efficiency
Gearbox output torque
Gearbox rated torque
Gearbox max torque
Ambient temperature
Noise
IP20

90PM32K

2 Same as motor Ball bearing Integrated
81%
30.5N.m
120N.m
2 times of rated toruqe
-10℃~+40℃
<60dB (L=100cm)


1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the brake installation end, the drive wheel turns clockwise. When the lead position is reversed, the drive wheel turns in the opposite direction;

2.The working life of the brush is 1500 hours;

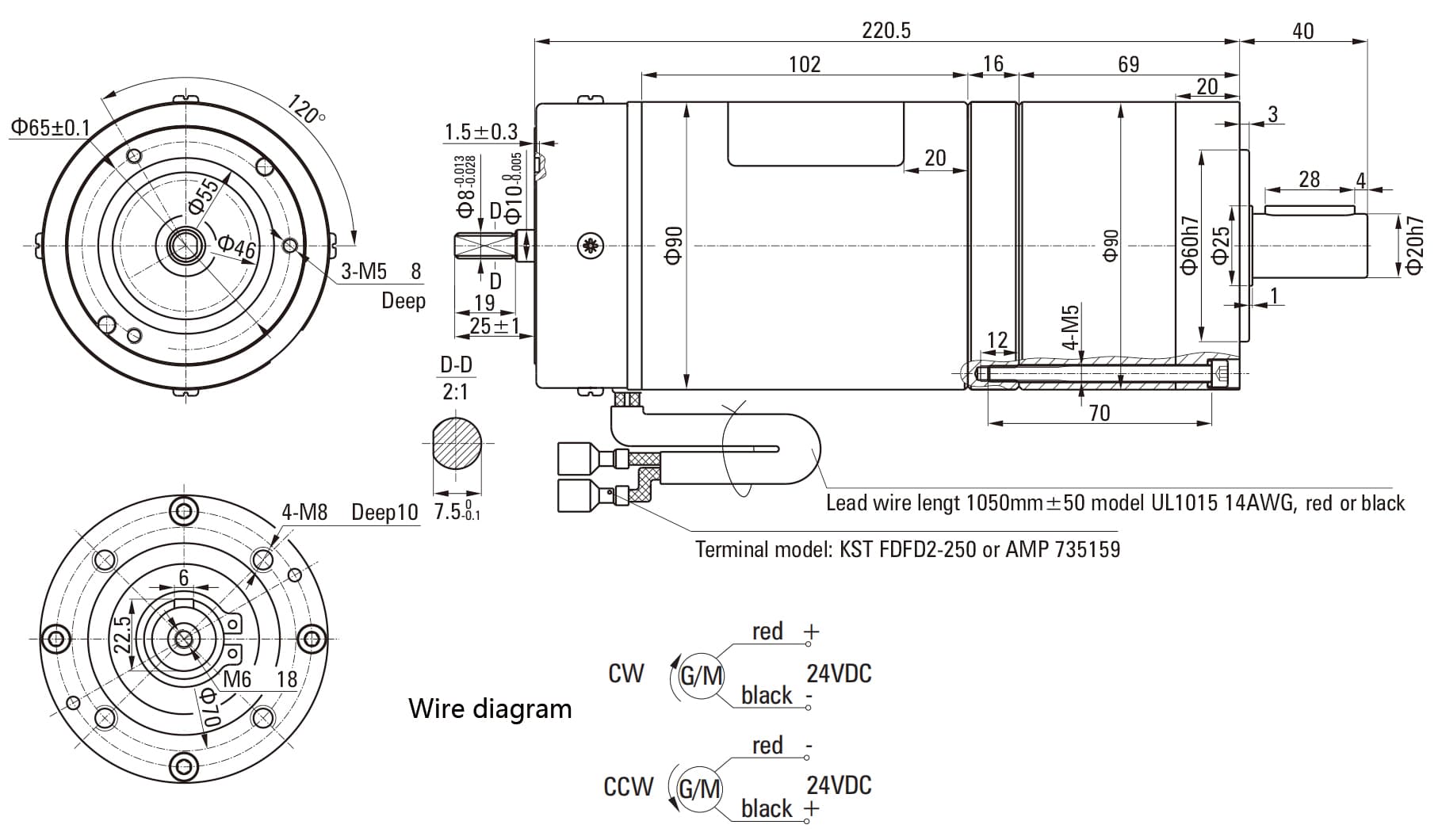

3.Lead wire length:1050mm±50, model: UL1015, spec: AWG14, nameplate position is as the picture shows, 20mm from the front cover;

4.Gaerbox screws should be firmly tightened and threaded glue should be appied before tightening;

5.Insert dowel pin of motor and gearbox seperately after testing motor and machine;

6.Screws of gearbox and motor should be firmly tightened and threaded glue should be appied before tightening.

Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful Power Steering Z90DPM24400-32S/90ZPM32K manufacturers and Power Steering Z90DPM24400-32S/90ZPM32K suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our Power Steering Z90DPM24400-32S/90ZPM32K and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.

No. of Employees: 1,500 employees

Mission: Zhongda realizes the infinite possibilities in automation applications.

Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.

Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.

Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
