Type Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength

Z90DP24400-30S-BM

24VDC 200W 24A±10% 3200rpm±10% 1.27N.m ≤3.5A 3600rpm±10% S2(10min) >20MΩ 2000h 660V/S
Insulation class Protection grade Gearbox spec Reduction stage Gearbox direction Bearing type Gearbox structure
Efficiency
Gearbox rated torque
Gearbox max torque
Ambient temperature
Noise
B IP20

82PN33.92K

2 Same as motor Ball bearing Integrated
81%
35N.m
1.5 times of rated torque
-10℃~+40℃
<60dB (L=100cm)

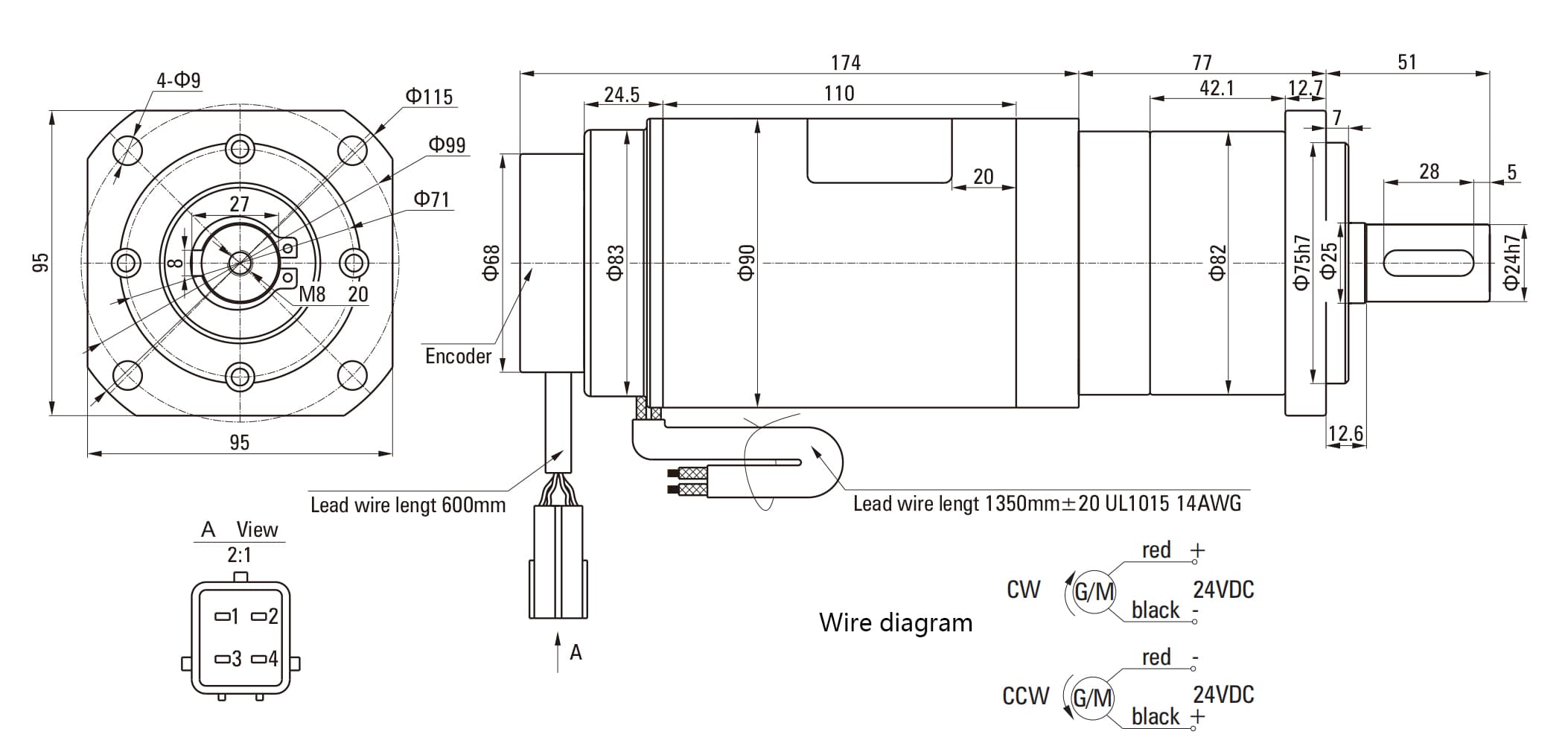

1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the brake installation end, the drive wheel turns clockwise. When the lead position is reversed, the drive wheel turns in the opposite direction;

2.The brush life is 2000 hours;

3.Lead wire length: 1350mm±20, model: UL1015, spec: AWG14、the nameplate is sticky, as shown in the figure, 20mm from the front cover;

4.Screws of gearbox and motor should be firmly tightened and threaded glue should be appied before tightening.

5.The reducer should be compact with screws, and threadproof anti-rosin should be applied before fixation;

7.64-bit encoder purchased, installde by ZD itself;

8.Use neutral nameplates according to customer requirements.

No.
Color
Function
1
Red
VCC+5V
2
Black
GND
3
Blue
A Phase
4
Yellow
B Phase
