Power Steering Z90DPM24200-32S / 90ZPM32K Suppliers

Home / Products / Intelligent Logistics / Power Steering / Power Steering Z90DPM24200-32S / 90ZPM32K



Type Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength

Z90DP24200-32S

24VDC 200W 13A±10% 3200rpm±10% 0.597N.m ≤3.5A 3600rpm±10% S2(10min) >20MΩ 2000h 660V/S
Insulation class Protection grade Gearbox spec Reduction stage Gearbox direction Bearing type Gearbox structure
Efficiency
Gearbox rated torque
Gearbox max torque
Ambient temperature
Noise
B IP20

90PM32K

2 Same as motor Ball bearing Integrated
94%
17.954N.m
2 times of rated torque
-10℃~+40℃
<60dB (L=100cm)

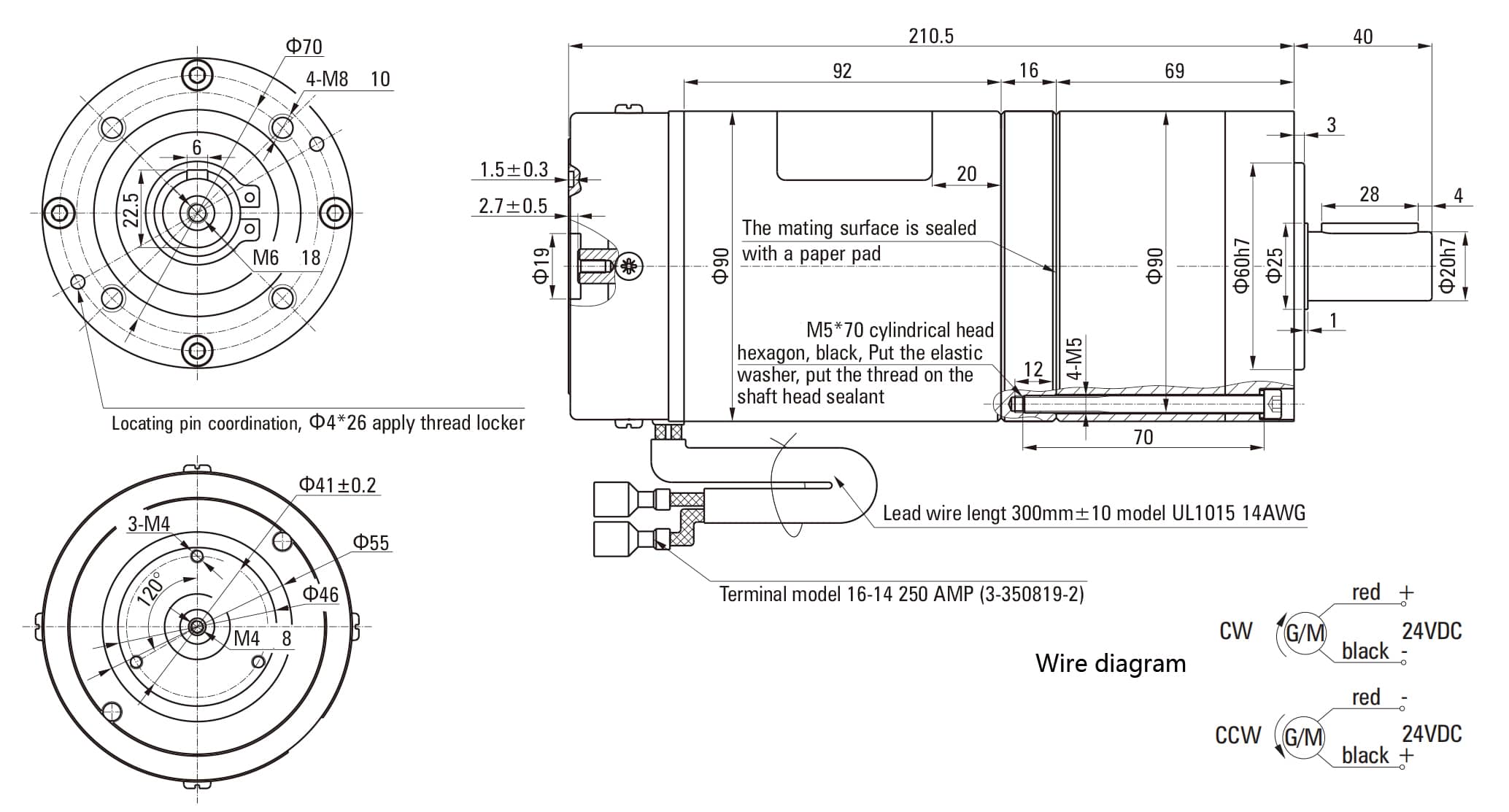

1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the brake installation end, the drive wheel turns clockwise. When the lead position is reversed, the drive wheel turns in the opposite direction;

2.The working life of the brush is 2000 hours;

3.Lead wire length: 300mm±50, model: UL1015, spec: AWG14, nameplate position is as the picture shows, 20mm from the front cover;

4.Screws of gearbox and motor should be firmly tightened and threaded glue should be appied before tightening.

5.Insert dowel pin of motor and gearbox seperately after testing motor and machine;

6.Connect terminal to lead wire after testing motor and machine. terminal should be able to support 5kgs pull and won't drop or loosen in 1min.
