Type Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength

Z90DP24200-32S-BM

24VDC 200W 13A±10% 3200rpm±10% 0.597N.m ≤3.5A 3600rpm±10% S2(10min) >20MΩ 2000h 660V/S
Insulation class Protection grade Gearbox spec Reduction stage Gearbox direction Bearing type Gearbox structure
Efficiency
Gearbox rated torque
Gearbox max torque
Ambient temperature
Noise
B IP20

82PN33.92K

2 Same as motor Ball bearing Integrated
81%
16.4N.m
1.5 times of rated torque
-10℃~+40℃
<60dB (L=100cm)
1

Encoder

ZDDC-BMQ-005

Encoder 64 bit
2

Machine

Z90DPN24200-32S/82ZPN33.92K-OWZ-00100

-

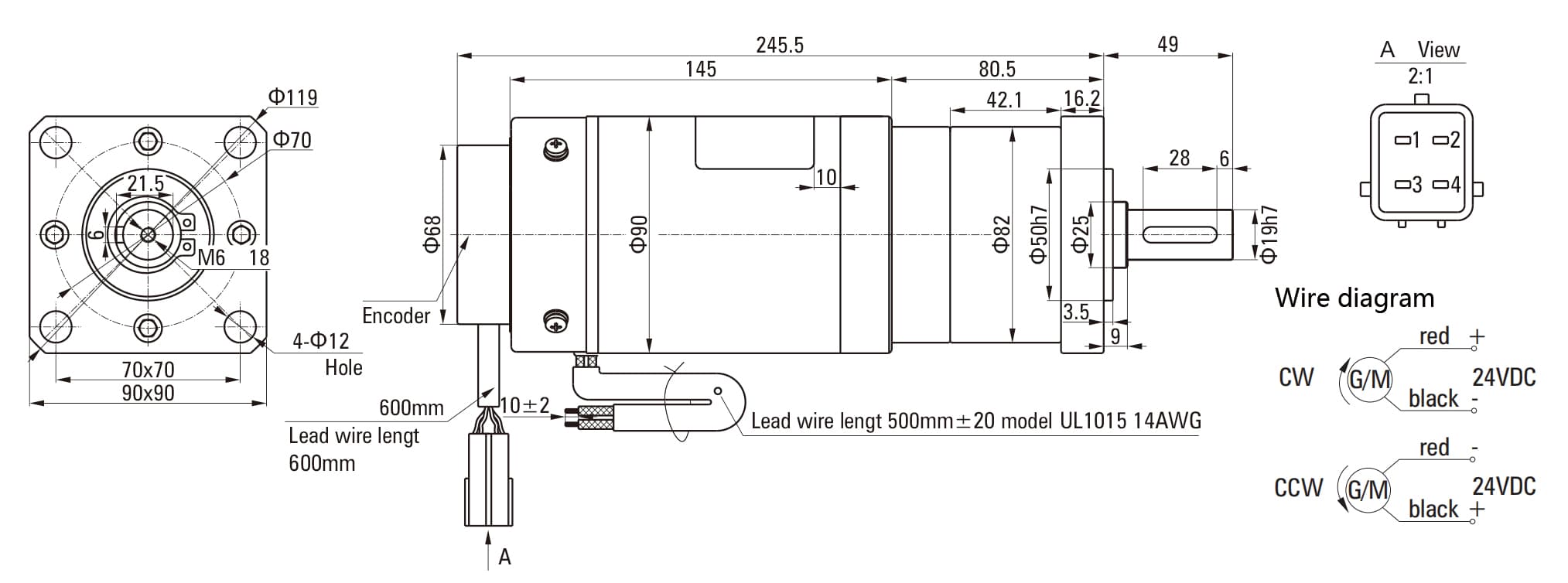

1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the brake installation end, the drive wheel turns clockwise. When the lead position is reversed, the drive wheel turns in the opposite direction;

2.The brush life is 2000 hours;

3.Lead wire length: 1350mm±20, model: UL1015, spec: AWG14, nameplate position is as the picture shows, 20mm from the front cover;

4.Screws of gearbox and motor should be firmly tightened and threaded glue should be appied before tightening.

5.Insert dowel pin of motor and gearbox seperately after testing motor and machine;

6.The whole machine is the same as Hefei Wanteng, with Ningbo Ruyi 64-bit encoder on the basis of which the nameplate is specially equipped.

7.Purchase encoder and assemble it into motor by ZD.

No.
Color
Function
1
Red
VCC+5V
2
Black
GND
3
Blue
A Phase
4
Yellow
B Phase
