Power Steering Z90DPN24200-32S / 72PN24.975K Suppliers

Home / Products / Intelligent Logistics / Power Steering / Power Steering Z90DPN24200-32S / 72PN24.975K



Type Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength

Z90DPN24200-32S

24VDC 200W 13A±10% 3200rpm±10% 0.597N.m ≤3.5A 3600rpm±10% S2(10min) >20MΩ 2000h 660V/S
Insulation class Protection grade Gearbox spec Reduction stage Gearbox direction Bearing type Gearbox structure
Efficiency
Gearbox rated torque
Gearbox max torque
Ambient temperature
Noise
B IP20 72PN24.975K 2 Same as motor Ball bearing Integrated
81%
12.1N.m
2 times of rated torque
-10℃~+40℃
<60dB (L=100cm)

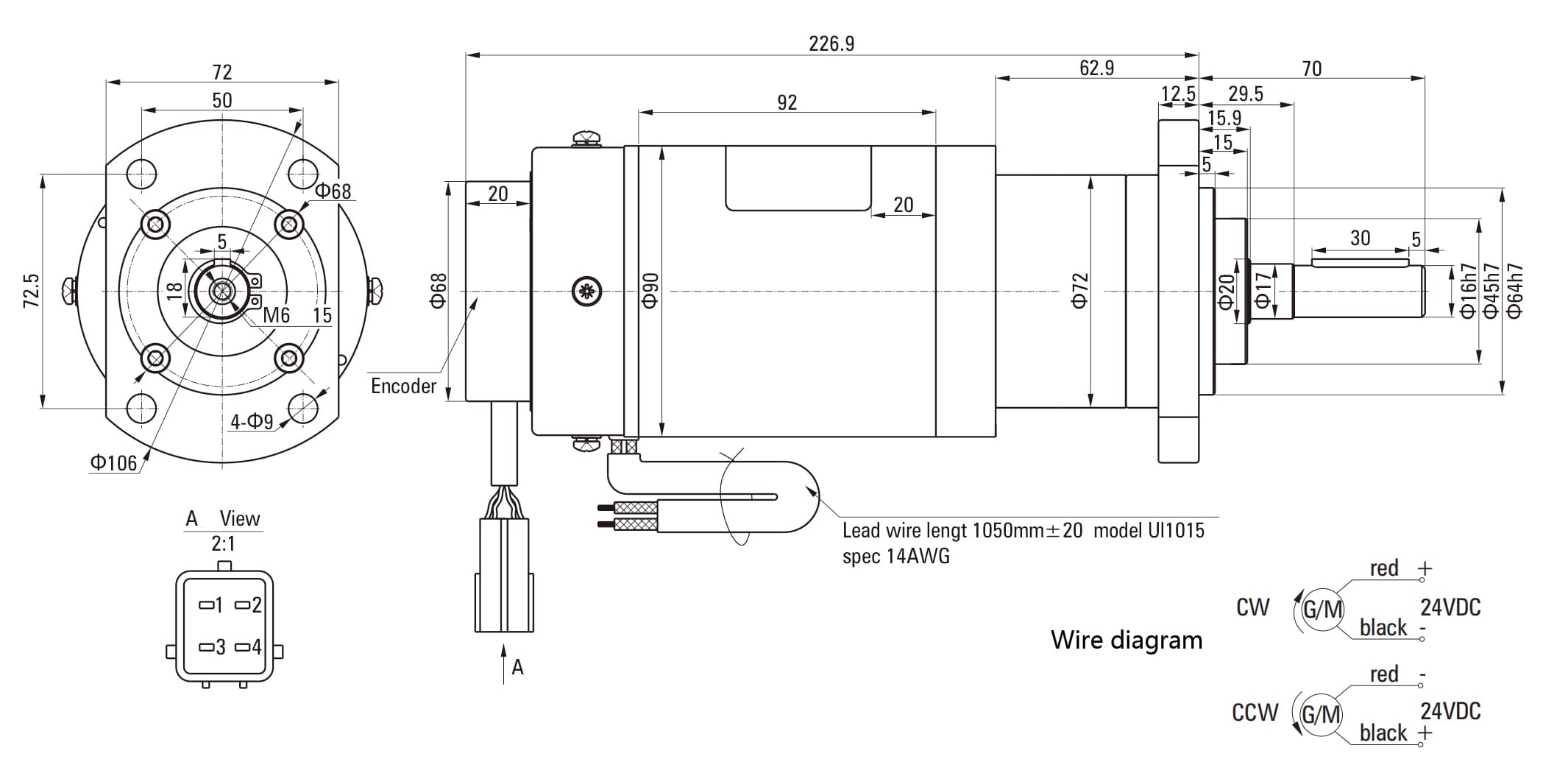

1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the brake installation end, the drive wheel turns clockwise. When the lead position is reversed, the drive wheel turns in the opposite direction;

2.The brush life is 2000 hours;

3.Lead wire length: 1050mm±20, model: UL1015, spec: AWG14、the nameplate is sticky;

4.The reducer should be compact with screws, and threadproof anti-rosin should be applied before fixation;

5.Screws of gearbox and motor should be firmly tightened and threaded glue should be appied before tightening.

No.
Color
Function
1
Red
VCC+5V
2
Black
GND
3
Blue
A Phase
4
Yellow
B Phase
