Gear Motor for Automatic Scrubber ZDSJ1-24550GU-15S-N-0WX-00001 Suppliers

Home / Products / Intelligent Logistics / Power Steering / Gear Motor for Automatic Scrubber ZDSJ1-24550GU-15S-N-0WX-00001



Model Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength Insulation class Protection grade
Ambient temperature
Noise
Ratio
Gearbox rated torque
Efficiency

ZDSJ1-24550GU-15S-N-00001

24VDC 550W 33A 1500rpm±10% 3.5N.m ≤5.5A 1900rpm±10% S1 >20MΩ 1500h 660V/S B IP00
-10℃~+40℃
<65dB (L=100cm)
10:1
31.5N.m
90%

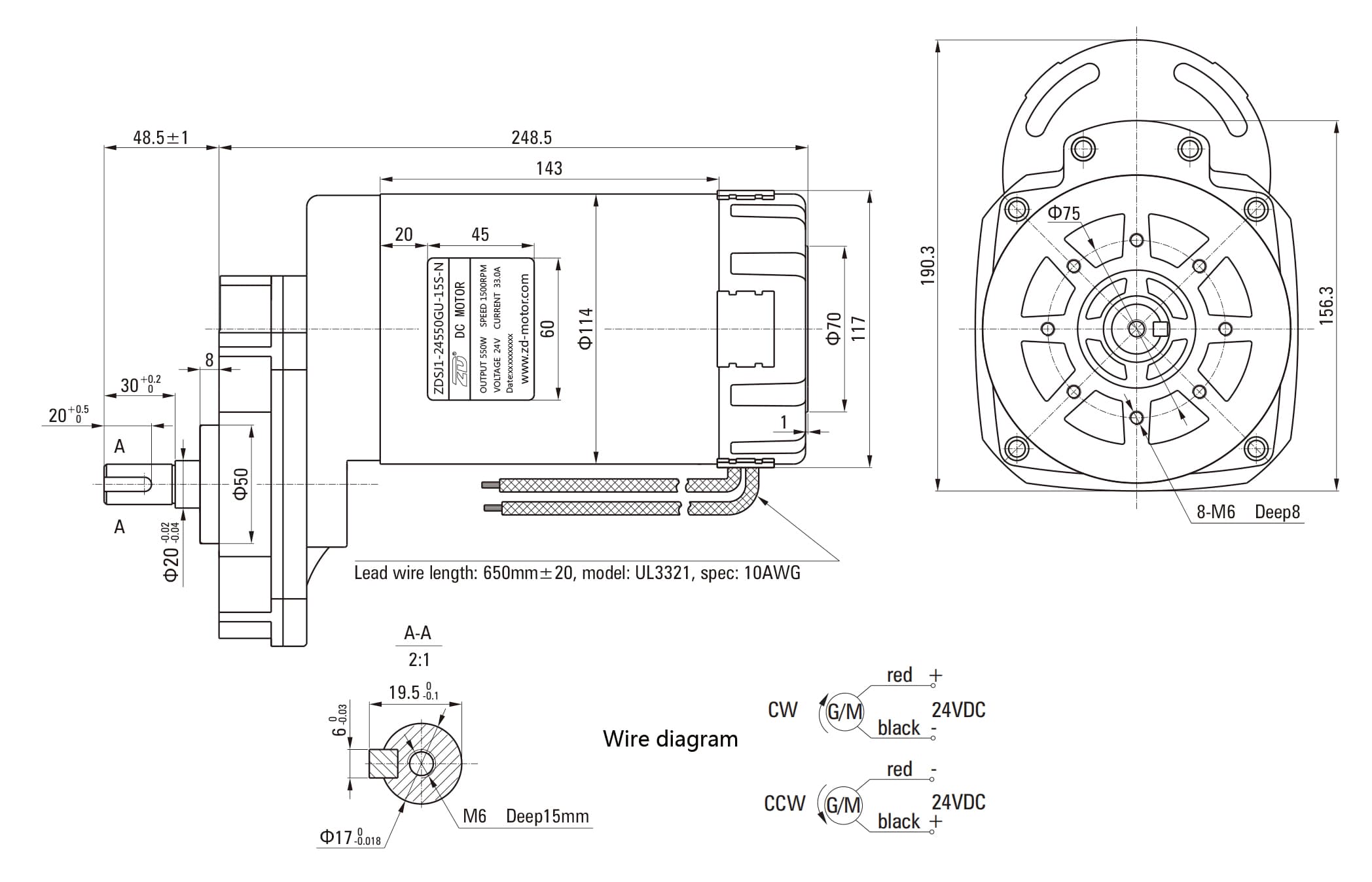

1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the output shaft, motor turns clockwise. When the lead position is reversed, the motor turns in the opposite direction;

2.The brush life is 1500 hours;

3.Key at the output shaft is C-shape 6*6*20;

4.Lead wire length: 650mm±50, model: UL3321, spec: 10AWG.
