ZPNΦ82 Planetary Gearbox Suppliers

Home / Products / Planetary Gear Motor / ZPNΦ82 Planetary Gearbox

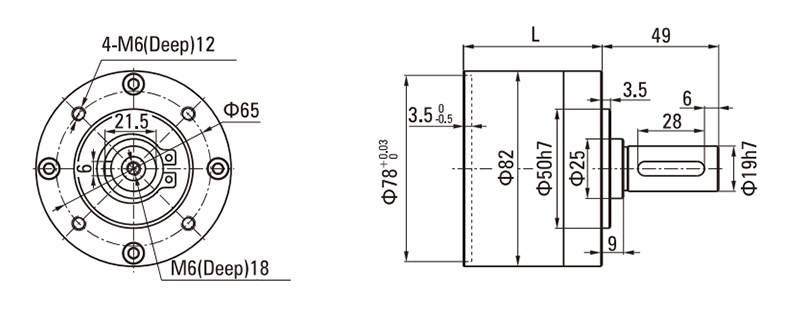

Gearbox Model

Gear Ratio

L Dimension (mm)

82ZPN□

Stage1

3.65~8.63

58.30

Stage2

14~58

80.50

Stage3

67~393

103.2



Transmission Stage

Stage 1

Stage 2

Stage 3

Transmission efficiency

90%

81%

73%

Max radial load

1000N

1000N

1000N

Max axial load

200N

200N

200N

Rated torque

20N.m

60N.m

120N.m

Instant beared torque

Two times of the rated torque

Operating temperature

-10℃~ +80℃

Lubrication type

Lifetime lubrication

Mounting type

Any

Recommend iutput speed

≤3000RPM

Input and output direction

Same direction

Noise

<60dB(A) (L=1m, 3000rpm)



Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful ZPNΦ82 Planetary Gearbox manufacturers and ZPNΦ82 Planetary Gearbox suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our ZPNΦ82 Planetary Gearbox and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.

No. of Employees: 1,500 employees

Mission: Zhongda realizes the infinite possibilities in automation applications.

Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.

Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.

Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
