ZPNΦ62 Planetary Gearbox Suppliers

Home / Products / Planetary Gear Motor / ZPNΦ62 Planetary Gearbox



Gearbox Model

Gear Ratio

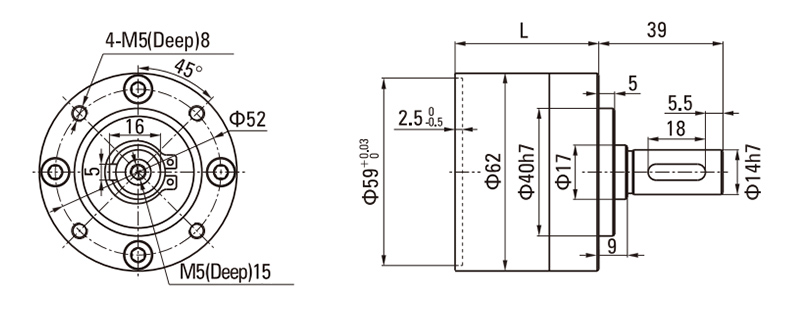

L Dimension (mm)

62ZPN□

Stage1

3.65~8.63

45.1

Stage2

14~58

62.7

Stage3

67~393

80.3



Transmission Stage

Stage 1

 Stage 2

 Stage 3

Transmission efficiency

90%

81%

73%

Max radial load

520N

520N

520N

Max axial load

150N

150N

150N

Rated torque

8N.m

25N.m

50N.m

Instant beared torque

Two times of the rated torque

Operating temperature

-10°C~+80°C

Lubrication type

Lifetime lubrication

Mounting type

Any

Recommend iutput speed

≤3000RPM

Input and output direction

 Same direction

Noise

<60dB(A)(L=1m, 3000rpm)
