How to Read Planetary Gear Motor

How to Read Planetary Gear Motor


We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

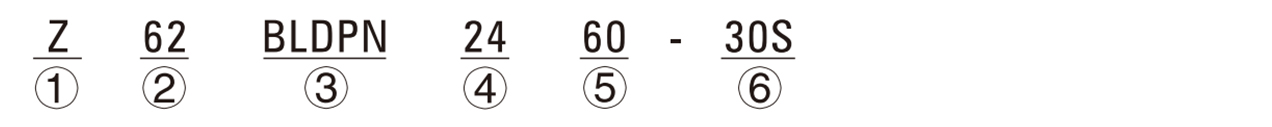

■ Motor

Motor Parameters

ZD Logo

Motor Outline Dimension:
22: Outer diameter Φ22mm 32: Outer diameter Φ32mm 42: Outer diameter Φ42mm
52: Outer diameter Φ52mm 62: Outer diameter Φ62mm 72: Outer diameter Φ72mm
82: Outer diameter Φ82mm 105: Outer diameter Φ105mm 120: Outer diameter Φ120mm

Motor Type:
BLDPN:BLDC motor, matched with planetary gearbox
DPN: Brush DC motor, matched with planetary gearbox

Rated Voltage For The Motor Using
12:12V
24:24V

Rated Output Power For The Motor
40:40W
60:60W

Rated Output Speed For The Motor
20S:2000RPM
30S:3000RPM

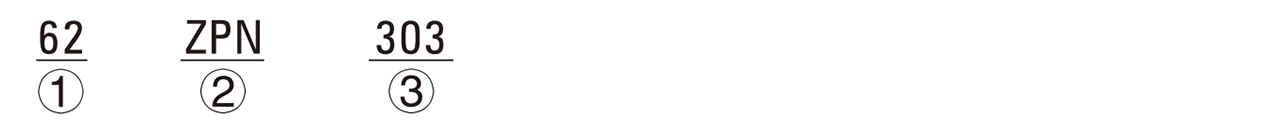

■ Reducer

Motor Outline Dimension:
22:Gear box external diameter Φ22mm 32: Gear box external diameter Φ32mm
42: Gear box external diameter Φ42mm 52: Gear box external diameter Φ52mm
62:Gear box external diameter Φ62mm 72: Gear box external diameter Φ72mm
82: Gear box external diameter Φ82mm 105: Gear box external diameter Φ105mm
120: Gear box external diameter Φ120mm

 Motor Outline Dimension:
ZPN: Gear box input shaft is helical gear

 Gear Ratio:
303: Reduction ratio:303:1
