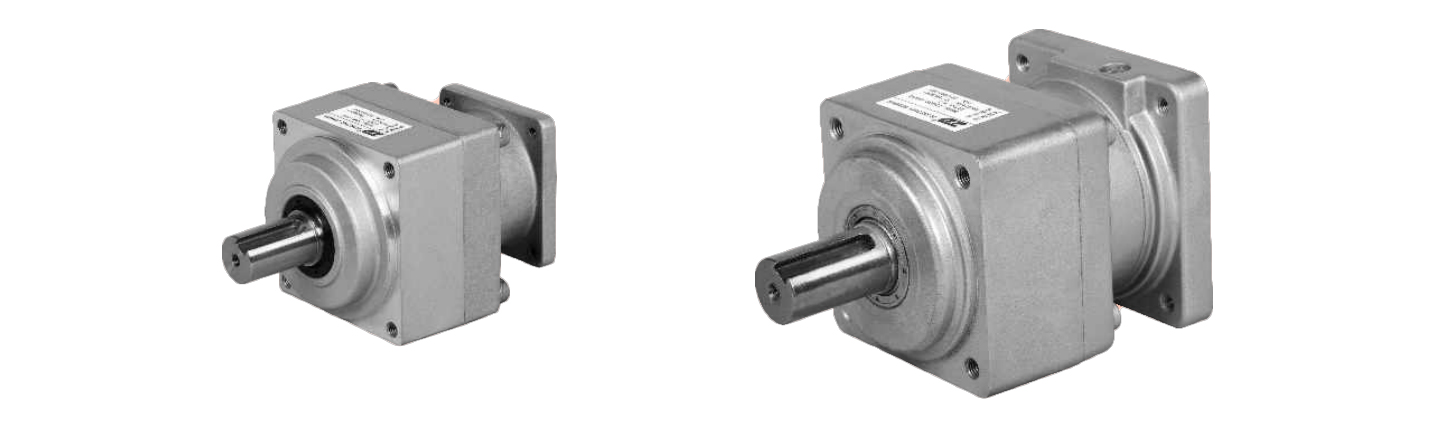

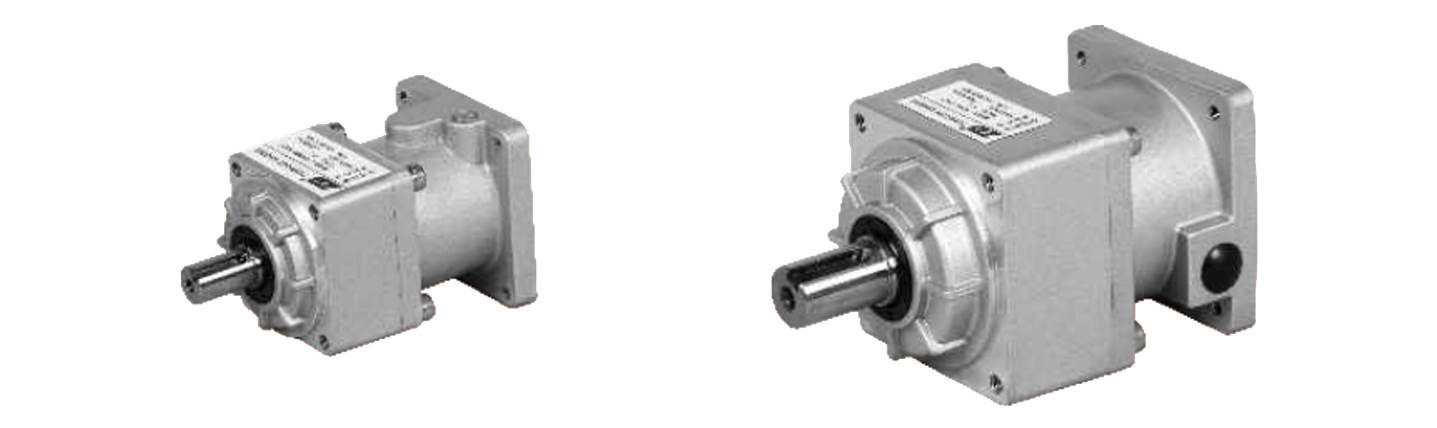

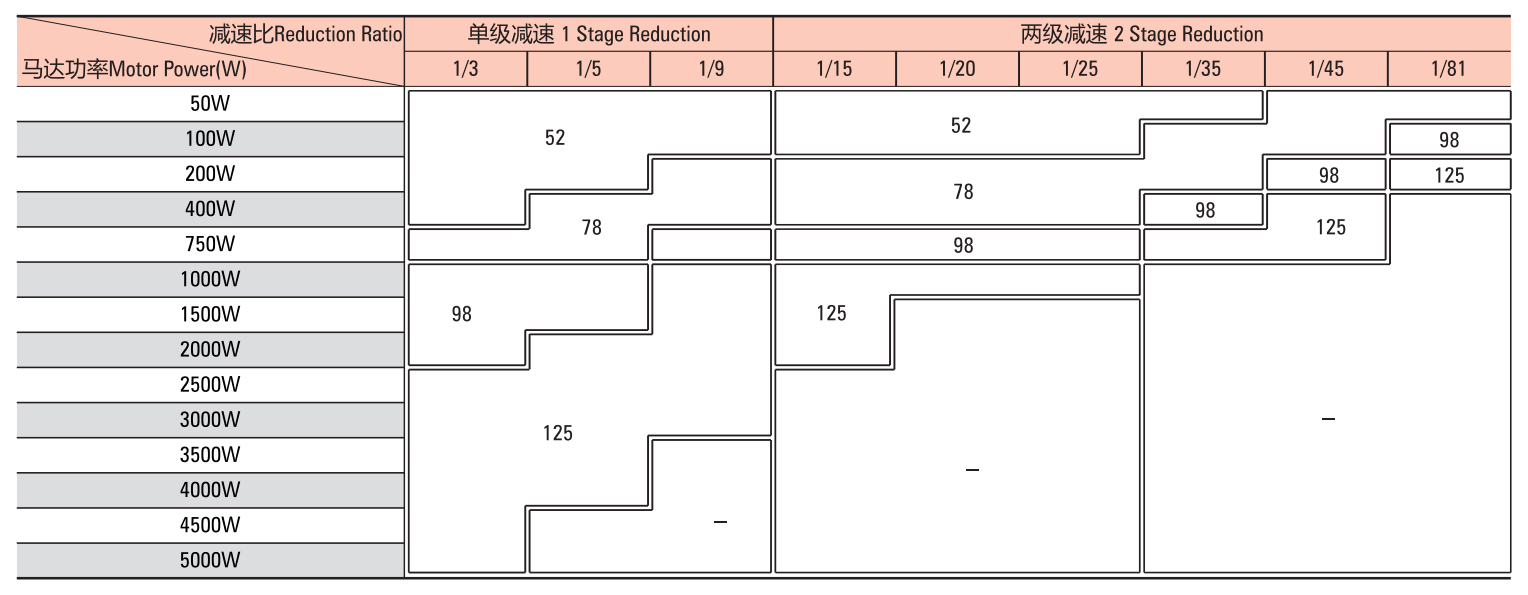

52: 1/5 reduction(100W)78: 1/81 reduction(50W)
98: 1/3 reduction(1500W),1/45 reduction(200W)
1/81 reduction(100W)
125:1/3 reduction(3500W),1/25 reduction(250W)
We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.
1.Output shaft
2.Seal for the output shaft
3.Bearing for the output shaft
4.Planetary gear
5.Front cover
6.Bearing for the output shaft
7.Seal for the output shaft
8.Bearing for the input shaft
9.Precision clamping system
10.Rear cover
ZDR, ZDGF(S) Reducers |
Servo Motor |
|||||

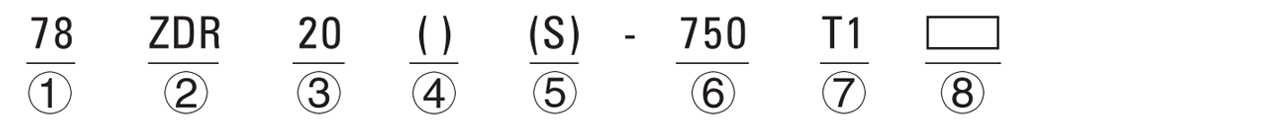

①Gear head frame size:ZDR:52,78,98,125 |
||||||
②Gear head series code: ZDR:Oblique tooth precision |
||||||
③Gear Ratio: ZDR: Single Stage 3,4,5,6,7,8,9,10; Two Stages 15,20,25,35,45,81 ZDGF(S): Single Stage※3.67,4,5,7,9,10; |
||||||
④Amount of backlash |
Reducer Type No. |
Stage |
P2 Standard Type |
PI Low-blacklash Type |
P0 High Precision Type |
|
52ZDR |
1 |
12 arc-min |
10 arc-min |
3 arc-min |
||
2 | 15 arc-min | 12 arc-min | 5 arc-min | |||
78ZDR |
1 |
8 arc-min |
5 arc-min |
3 arc-min |
||
2 |
12 arc-min |
8 arc-min |
5 arc-min |
|||
98ZDR |
1 |
8 arc-min |
5 arc-min |
3 arc-min |
||
12 arc-min | 8 arc-min | 5 arc-min | ||||
125ZDR |
1 |
8 arc-min |
5 arc-min |
3 arc-min |
||
2 |
12 arc-min |
8 arc-min |
5 arc-min |
|||
60-170ZDGF(S) |
1 |
5 arc-min |
3 arc-min |
- |
||
2 |
8 arc-min |
5 arc-min |
- |
|||
⑤Input shaft type S1:Locking with locking ring(regardless whether the motor with keyway can use it. But D Cut can't use) S2:Locking with keyway (input shaft with key) |
||||||
⑥Applicable servo motor power (W) |
||||||
⑦Manufacturer name of servo motor (P43) |
||||||
⑧Model of servo motor |
※1:3.67 is 3/11=1/3.666......
• Lubrication: Grease | •Replacement: Not available |
Reduction |
Model |
Outout Shsft Speed |
Standard Output Torque |
Instantaneous max.Output Torque |
Permissible Axial Load |
Permissible Axial Load |
Internal Moment Ohnertia Of Input Shaftconversion |
Perrmissible Output Torque |
Instantaneous Max. Permissible Output Torque |
|||
Type No. |
Model |
Reduction |
Motor |
|||||||||
(rpm) |
(N.m) |
(N.m) |
(N) |
(N) |
(x10-4 kg.m2) |
(N.m) |
(N.m) |
|||||
1/3 |
52 |
ZDR |
3 |
50 |
1000 |
0.255 |
0.784 |
392 |
196 |
0.0575 |
3.43 |
10.3 |
52 |
ZDR |
3 |
100 |
1000 |
0.715 |
2.06 |
392 |
196 |
0.0575 |
3.43 |
10.3 |
|
52 |
ZDR |
3 |
200 |
1000 |
1.47 |
4.51 |
392 |
196 |
0.135 |
3.43 |
10.3 |
|
52 |
ZDR |
3 |
400 |
1000 |
3.43 |
10.3 |
392 |
196 |
0.145 |
3.43 |
10.3 |
|
78 |
ZDR |
3 |
750 |
1000 |
6.37 |
19.3 |
784 |
392 |
0.913 |
6.86 |
20.6 |
|
98 |
ZDR |
3 |
1000 |
1000 |
7.55 |
22.8 |
882 |
441 |
2.43 |
18.3 |
54.9 |
|
98 |
ZDR |
3 |
1500 |
1000 |
12.3 |
37.1 |
882 |
441 |
2.43 |
18.3 |
54.9 |
|
98 |
ZDR |
3 |
2000 |
1000 |
17.2 |
51.5 |
882 |
441 |
2.43 |
18.3 |
54.9 |
|
125 |
ZOR |
3 |
2500 |
1000 |
19.0 |
57.2 |
1370 |
686 |
5.55 |
44.1 |
132 |
|
125 |
ZDR |
3 |
3000 |
1000 |
23.7 |
71.2 |
1370 |
686 |
5.50 |
44.1 |
132 |
|
125 |
ZDR |
3 |
3600 |
1000 |
28.3 |
85.2 |
1370 |
686 |
5.50 |
44.1 |
132 |
|
125 |
ZDR |
3 |
4000 |
1000 |
33.1 |
99.0 |
1370 |
686 |
5.78 |
44.1 |
132 |
|
125 |
ZDR |
3 |
4500 |
1000 |
37.7 |
113 |
1370 |
686 |
5.78 |
44.1 |
132 |
|
125 |
ZDR |
3 |
5000 |
1000 |
42.9 |
128 |
1370 |
686 |
5.78 |
44.1 |
132 |
|
1/5 |
52 |
ZDR |
5 |
50 |
600 |
0.510 |
1.47 |
490 |
245 |
0.04 |
1.57 |
4.70 |
52 |
ZDR |
5 |
100 |
600 |
1.18 |
3.72 |
490 |
245 |
0.04 |
1.57 |
4.70 |
|
52 |
ZDR |
5 |
200 |
600 |
2.65 |
8.04 |
490 |
245 |
0.118 |
2.84 |
8.53 |
|
78 |
ZDR |
5 |
400 |
600 |
5.39 |
16.2 |
980 |
490 |
0.363 |
6.57 |
19.7 |
|
78 |
ZDR |
5 |
750 |
600 |
10.7 |
32.1 |
980 |
490 |
0.713 |
11.5 |
34.3 |
|
98 |
ZDR |
5 |
1000 |
600 |
13.4 |
40.5 |
1080 |
539 |
1.85 |
23.5 |
70.6 |
|
98 |
ZDR |
5 |
1500 |
600 |
21.5 |
64.4 |
1080 |
539 |
1.85 |
23.5 |
70.6 |
|
125 |
ZDR |
5 |
2000 |
600 |
23.8 |
71.5 |
1670 |
833 |
3.50 |
56.8 |
171 |
|
125 |
ZDR |
5 |
2500 |
600 |
31.8 |
95.5 |
1670 |
833 |
3.50 |
56.8 |
171 |
|
125 |
ZDR |
5 |
3000 |
600 |
39.6 |
119 |
1670 |
833 |
3.48 |
56.8 |
171 |
|
125 |
ZDR |
5 |
3500 |
600 |
47.2 |
141 |
1670 |
833 |
3.48 |
56.8 |
171 |
|
125 |
ZDR |
5 |
4000 |
600 |
55.3 |
166 |
1670 |
833 |
175 |
56.8 |
171 |
|
1/9 |
52 |
ZDR |
9 |
50 |
333 |
0.921 |
2.74 |
588 |
294 |
0.035 |
2.35 |
7.25 |
52 |
ZOR |
9 |
100 |
333 |
2.25 |
6.86 |
588 |
294 |
0.035 |
2.35 |
7.25 |
|
78 |
ZDR |
9 |
200 |
333 |
3.72 |
11.3 |
1180 |
588 |
0.275 |
9.70 |
29.2 |
|
78 |
ZDR |
9 |
400 |
333 |
9.51 |
28.5 |
1180 |
586 |
0.275 |
9.70 |
29.2 |
|
98 |
ZDR |
9 |
750 |
333 |
18.2 |
54.7 |
1470 |
735 |
0.650 |
18.2 |
54.7 |
|
125 |
ZDR |
9 |
1000 |
333 |
20.0 |
60.1 |
1960 |
980 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
1500 |
333 |
34.3 |
103 |
1960 |
980 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
2000 |
333 |
48.6 |
146 |
1960 |
980 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
2500 |
333 |
60.8 |
182 |
1960 |
980 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
3000 |
333 |
73.0 |
219 |
1960 |
980 |
2.77 |
73.5 |
221 |
Note1) The moment of input shaft conversion is only gained from the reducer, so it does not include moment of inertia of the motor.
Note2) The max. input speed is 5000rpm. Usually set to 3000rpm or less.
Note3) The permissble radial load is indicated on the center of the output shaft.
Note4) All values are within the range corresponding to helical gear.
Reduction |
Model |
Outout Shaft Speed |
Standard Output Torque |
Instantaneous Max. Output Torque |
|
Permissible |
Internal Moment Ofinertia |
Permissible |
Instantaneous Max. |
|||
Type No. |
Model |
Reduction Ratio |
Motor |
|||||||||
(rpm) |
(N.m) |
(N.m) |
(N) |
(N) |
(x10-4 kg.m2) |
(N.m) |
(N.m) |
|||||
1/15 |
52 |
ZDR |
15 |
50 |
200 |
1.67 |
5.00 |
784 |
392 |
0.035 |
4.02 |
12.2 |
52 |
ZDR |
15 |
100 |
200 |
3.72 |
11.4 |
784 |
392 |
0.035 |
4.02 |
12.2 |
|
78 |
ZDR |
15 |
200 |
200 |
6.27 |
18.8 |
1470 |
735 |
0.300 |
16.2 |
48.6 |
|
78 |
ZDR |
15 |
400 |
200 |
15.8 |
47.5 |
1470 |
735 |
0.300 |
16.2 |
48.6 |
|
98 |
20R |
15 |
750 |
200 |
30.4 |
91.2 |
1760 |
882 |
0.700 |
30.4 |
91.2 |
|
125 |
ZDB |
IS |
1000 |
200 |
33.3 |
100 |
2350 |
1180 |
1.95 |
91.4 |
274 |
|
125 |
ZDR |
15 |
1500 |
200 |
57.2 |
172 |
2350 |
1180 |
2.80 |
91.4 |
274 |
|
125 |
ZDR |
15 |
2000 |
200 |
81.0 |
243 |
2350 |
1180 |
2.80 |
91.4 |
274 |
|
1/20 |
52 |
20R |
20 |
50 |
150 |
2.21 |
6.63 |
804 |
402 |
0.034 |
5.00 |
15.0 |
52 |
ZDR |
20 |
100 |
150 |
5.00 |
15.0 |
804 |
402 |
0.034 |
5.00 |
15.0 |
|
78 |
ZDR |
20 |
200 |
150 |
8.69 |
26.1 |
1570 |
785 |
0.294 |
21.1 |
63.3 |
|
78 |
ZDR |
20 |
400 |
150 |
21.1 |
63.3 |
1570 |
785 |
0.294 |
21.1 |
63.3 |
|
98 |
ZDR |
20 |
750 |
150 |
40.6 |
122 |
1910 |
955 |
0.690 |
40.6 |
122 |
|
1/25 |
52 |
ZDR |
25 |
50 |
120 |
2.74 |
8.33 |
882 |
441 |
0.0325 |
4.02 |
12.2 |
52 |
ZDB |
25 |
100 |
120 |
6.27 |
19.0 |
882 |
441 |
0.0325 |
6.27 |
19.0 |
|
78 |
ZDR |
25 |
200 |
120 |
11.1 |
33.3 |
1670 |
833 |
0.288 |
21.7 |
64.9 |
|
78 |
ZDR |
25 |
400 |
120 |
26.4 |
79.2 |
1670 |
833 |
0.288 |
26.4 |
79.2 |
|
98 |
ZDR |
25 |
750 |
120 |
50.7 |
152 |
2050 |
1030 |
0.680 |
50.7 |
152 |
|
125 |
ZDR |
25 |
1000 |
120 |
55.7 |
167 |
2650 |
1320 |
1.880 |
65.4 |
196 |
|
1/35 |
52 |
ZDR |
35 |
50 |
85 |
3.84 |
11.5 |
882 |
441 |
0.030 |
3.84 |
11.5 |
78 |
ZDR |
35 |
100 |
85 |
7.24 |
21.7 |
1670 |
833 |
0.065 |
13.9 |
41.7 |
|
78 |
ZDR |
35 |
200 |
85 |
15.5 |
46.6 |
1670 |
833 |
0.262 |
15.5 |
46.6 |
|
98 |
ZDR |
35 |
400 |
85 |
37.0 |
111 |
2060 |
1030 |
0.269 |
37.0 |
111 |
|
125 |
ZDB |
35 |
750 |
85 |
71.0 |
213 |
3430 |
1715 |
0.473 |
71.0 |
213 |
|
1/45 |
78 |
ZDR |
45 |
50 |
66 |
3.86 |
11.6 |
1670 |
833 |
0.0285 |
9.50 |
28.6 |
78 |
ZDR |
45 |
100 |
66 |
9.31 |
28.0 |
1670 |
833 |
0.0285 |
9.50 |
28.6 |
|
98 |
ZDR |
45 |
200 |
66 |
21.1 |
63.5 |
2060 |
1030 |
0.0256 |
28.3 |
85.2 |
|
125 |
ZOR |
45 |
400 |
66 |
47.5 |
142.5 |
3520 |
1760 |
0.245 |
57.0 |
171 |
|
125 |
ZDR |
45 |
750 |
66 |
91.3 |
274 |
3520 |
1760 |
1.770 |
91.3 |
274 |
|
1/81 |
78 |
ZDR |
81 |
50 |
37 |
7.02 |
20.8 |
1670 |
833 |
0.027 |
9.70 |
29.2 |
98 |
ZDR |
81 |
100 |
37 |
14.0 |
42.0 |
2060 |
1030 |
0.030 |
17.8 |
53.5 |
|
125 |
ZDR |
81 |
200 |
37 |
36.1 |
108.3 |
3530 |
1765 |
0.240 |
43.3 |
129.9 |
Note1) The moment of input shaft conversion is only gained from the reducer, so it does not include moment of inertia of the motor.
Note2) The max, input speed is 5000rpm. Usually set to 3000rpm or less.
Note3) The permissble radial load is indicated on the center of the output shaft.
Note4) All values are within the range corresponding to helical gear.
Reduction |
Model |
Outout Shaft Speed |
Standard Output Torque |
Instantaneous Max.Output Torque |
Permissible Radial Load |
Permissible Axial Load |
Internal Moment Ofinertia Of Input Shaftconversion |
Permissible Output Torque |
Instantaneous Max. Permissible Output Torque |
|||
Type No. |
Model |
Reduction |
Motor |
(rpm) |
(N.m) |
(N.m) |
(N) |
(N) |
(x10-4kg.m2) |
(N.m) |
(N.m) |
|
1/3 |
52 |
ZDR |
3 |
50 |
666 |
0.477 |
1.43 |
450 |
225 |
0.0575 |
3.43 |
10.3 |
52 |
ZDR |
3 |
100 |
666 |
1.05 |
3.15 |
450 |
225 |
0.135 |
3.43 |
10.3 |
|
52 |
ZDR |
3 |
200 |
666 |
2.48 |
7.45 |
450 |
225 |
0.145 |
3.43 |
10.3 |
|
78 |
ZDR |
3 |
400 |
666 |
5.01 |
15.0 |
900 |
450 |
0.913 |
6.86 |
20.6 |
|
98 |
ZDR |
3 |
750 |
666 |
8.73 |
26.2 |
1010 |
505 |
2.43 |
18.3 |
54.9 |
|
98 |
ZDR |
3 |
1000 |
666 |
12.3 |
37.1 |
1010 |
505 |
2.43 |
18.3 |
54.9 |
|
98 |
ZDR |
3 |
1500 |
666 |
18.3 |
54.9 |
1010 |
505 |
2.43 |
18.3 |
54.9 |
|
125 |
ZDR |
3 |
2000 |
666 |
23.7 |
71.2 |
1570 |
785 |
5.50 |
44.1 |
132 |
|
125 |
ZDR |
3 |
2500 |
666 |
30.8 |
92.5 |
1570 |
785 |
5.50 |
44.1 |
132 |
|
125 |
ZDR |
3 |
3000 |
666 |
37.7 |
113 |
1570 |
785 |
5.50 |
44.1 |
132 |
|
125 |
ZDR |
3 |
3500 |
666 |
44.1 |
132 |
1570 |
785 |
5.78 |
44.1 |
132 |
|
1/5 |
52 |
ZDR |
5 |
50 |
400 |
0.795 |
2.39 |
560 |
280 |
0.040 |
1.57 |
4.70 |
52 |
ZDR |
5 |
100 |
400 |
1.57 |
4.70 |
560 |
280 |
0.118 |
1.57 |
4.70 |
|
78 |
ZDR |
5 |
200 |
400 |
3.82 |
11.5 |
1120 |
560 |
0.363 |
6.57 |
19.7 |
|
78 |
ZDR |
5 |
400 |
400 |
8.35 |
25.1 |
1120 |
560 |
0.713 |
11.5 |
34.3 |
|
98 |
ZDR |
5 |
750 |
400 |
15.5 |
46.5 |
1230 |
615 |
1.85 |
23.5 |
70.6 |
|
98 |
ZDR |
5 |
1000 |
400 |
21.5 |
64.4 |
1230 |
615 |
1.85 |
23.5 |
70.6 |
|
125 |
ZDR |
5 |
1500 |
400 |
27.8 |
83.5 |
1900 |
950 |
3.50 |
56.8 |
171 |
|
125 |
ZDR |
5 |
2000 |
400 |
39.6 |
119 |
1900 |
950 |
3.48 |
56.8 |
171 |
|
125 |
ZDR |
5 |
2500 |
400 |
51.4 |
154 |
1900 |
950 |
3.75 |
56.8 |
171 |
|
1/9 |
52 |
ZDR |
9 |
50 |
222 |
1.57 |
4.72 |
670 |
335 |
0.035 |
2.35 |
7.25 |
78 |
ZDR |
9 |
100 |
111 |
2.35 |
7.04 |
1340 |
670 |
0.275 |
9.70 |
29.2 |
|
78 |
ZDR |
9 |
200 |
222 |
6.64 |
19.9 |
1340 |
670 |
0.275 |
9.70 |
29.2 |
|
98 |
ZDR |
9 |
400 |
222 |
14.0 |
41.9 |
1680 |
840 |
0.650 |
18.2 |
54.7 |
|
125 |
ZDR |
9 |
750 |
111 |
23.6 |
70.9 |
2240 |
1120 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
1000 |
222 |
34.3 |
103 |
2240 |
1120 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
1500 |
222 |
53.7 |
161 |
2240 |
1120 |
2.81 |
73.5 |
221 |
|
125 |
ZDR |
9 |
2000 |
222 |
73.0 |
219 |
2240 |
1120 |
2.77 |
73.5 |
221 |
|
1/15 |
52 |
ZDR |
15 |
50 |
133 |
2.62 |
7.87 |
882 |
441 |
0.035 |
4.02 |
12.2 |
78 |
ZDR |
15 |
100 |
133 |
3.91 |
11.7 |
1670 |
833 |
0.300 |
16.2 |
48.6 |
|
78 |
ZDR |
15 |
200 |
133 |
11.1 |
33.2 |
1670 |
833 |
0.300 |
16.2 |
48.6 |
|
98 |
ZDR |
15 |
400 |
133 |
23.3 |
69.8 |
2020 |
1010 |
0.700 |
30.4 |
91.2 |
|
125 |
ZDR |
15 |
750 |
133 |
39.4 |
118 |
2650 |
1320 |
2.80 |
91.4 |
274 |
|
125 |
ZDR |
15 |
1000 |
133 |
57.2 |
172 |
2650 |
1320 |
2.80 |
91.4 |
274 |
|
125 |
ZDR |
15 |
1500 |
133 |
91.3 |
274 |
2650 |
1320 |
2.80 |
91.4 |
274 |
|
1/20 |
52 |
ZDR |
20 |
50 |
100 |
3.50 |
10.5 |
910 |
455 |
0.034 |
5.00 |
15.0 |
78 |
ZDR |
20 |
100 |
100 |
5.73 |
17.2 |
1790 |
895 |
0.294 |
21.1 |
63.3 |
|
78 |
ZDR |
20 |
200 |
100 |
14.8 |
44.4 |
1790 |
895 |
0.294 |
21.1 |
63.3 |
|
98 |
ZDR |
20 |
400 |
100 |
31.0 |
93.1 |
2180 |
1090 |
0.294 |
40.6 |
122 |
|
1/25 |
52 |
ZDR |
25 |
50 |
80.0 |
4.37 |
13.1 |
882 |
441 |
0.0325 |
6.27 |
19.0 |
78 |
ZDR |
25 |
100 |
80.0 |
7.16 |
21.5 |
1670 |
833 |
0.288 |
21.7 |
64.9 |
|
78 |
ZDR |
25 |
200 |
80.0 |
18.5 |
55.4 |
1670 |
833 |
0.288 |
21.7 |
64.9 |
|
98 |
ZDR |
25 |
400 |
80.0 |
38.8 |
116 |
2060 |
1030 |
0.680 |
50.7 |
152 |
|
125 |
ZDR |
25 |
750 |
80.0 |
65.4 |
196 |
2650 |
1320 |
1.88 |
65.4 |
196 |
|
1/35 |
78 |
ZDR |
35 |
50 |
57.0 |
4.43 |
13.3 |
1900 |
950 |
0.262 |
15.5 |
46.6 |
78 |
ZDR |
35 |
100 |
57.0 |
12.7 |
38.1 |
1900 |
950 |
0.262 |
15.5 |
46.6 |
|
98 |
ZDR |
35 |
200 |
57.0 |
22.0 |
66.0 |
2340 |
1170 |
0.269 |
37.0 |
111 |
|
1/45 |
78 |
ZDR |
45 |
50 |
44.4 |
5.80 |
17.4 |
1670 |
833 |
0.0285 |
9.50 |
28.6 |
98 |
ZDR |
45 |
100 |
44.4 |
14.0 |
42.1 |
2060 |
1030 |
0.0285 |
28.3 |
85.2 |
|
98 |
ZDR |
45 |
200 |
44.4 |
28.3 |
85.2 |
2060 |
1030 |
0.0285 |
28.3 |
85.2 |
|
1/81 |
78 |
ZDR |
81 |
50 |
24.6 |
9.70 |
29.2 |
1670 |
833 |
0.0270 |
9.70 |
29.2 |
98 |
ZDR |
81 |
100 |
24.6 |
17.8 |
53.5 |
2060 |
1030 |
0.0300 |
17.8 |
53.5 |
Note1) The moment of input shaft conversion is only gained from the reducer, so it does not include moment of inertia of the motor.
Note2) The permissble radial load is indicated on the center of the output shaft.
Note3) All values are within the range corresponding to helical gear.

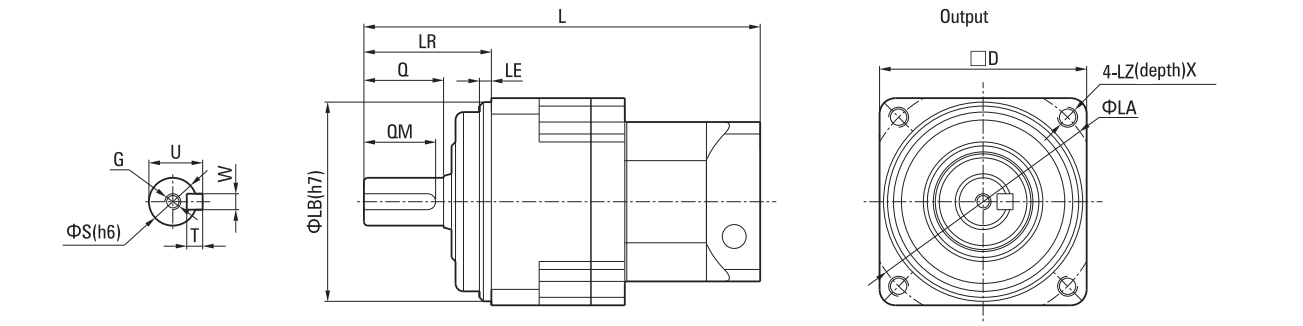

Type |
Total Length L |
Output Shaft |
Flange |
||||||||||||||||
Type No. |
Model |
Reduction |
Motor |
Panasonic- made MSMA |
Yaskawa-made SGMASH SGMSH |
Mitsubishi-made HC-KFS HC-RFS |
LR |
S |
Q |
QM |
QM |
W×U |
T |
D |
LB |
LE |
LA |
LZ |
X |
52 |
ZDR |
3•5•9 |
50 |
99.5 |
32 |
12 |
20 |
18 |
M4(depth)12 |
4×13.5 |
4 |
52 |
50 |
3 |
60 |
M5 |
12 |
||
52 |
ZDR |
15•20•25•35 |
50 |
110 |
|||||||||||||||
52 |
ZDR |
3•5•9 |
100 |
99.5 |
|||||||||||||||
52 |
ZDR |
15•20•25 |
100 |
110 |
|||||||||||||||
52 |
ZDR |
3•5 |
200 |
104.5 |
|||||||||||||||
52 |
ZDR |
3 |
400 |
||||||||||||||||
78 |
ZDR |
45•81 |
50 |
142 |
50 |
19 |
30 |
26 |
M5(depth)15 |
6×21.5 |
6 |
80 |
70 |
3 |
90 |
M6 |
20 |
||
78 |
ZDR |
35 |
100 |
150 |
|||||||||||||||
78 |
ZDR |
45 |
100 |
142 |
|||||||||||||||
78 |
ZDR |
9 |
200 |
139.5 |
|||||||||||||||
78 |
ZDR |
15•20•25•35 |
200 |
150 |
|||||||||||||||
78 |
ZDR |
5.9 |
400 |
139.5 |
|||||||||||||||
78 |
ZDR |
15•20•25 |
400 |
150 |
|||||||||||||||
78 |
ZDR |
3•5 |
750 |
143.5 |
|||||||||||||||
98 |
ZDR |
81 |
100 |
158 |
61 |
24 |
40 |
35 |
M6(depth)20 |
8×27 |
7 |
100 |
90 |
5 |
115 |
M8 |
20 |
||
98 |
ZDR |
45 |
200 |
165 |
|||||||||||||||
98 |
ZDR |
35 |
400 |
||||||||||||||||
98 |
ZDR |
9 |
750 |
158.5 |
|||||||||||||||
98 |
ZDR |
15•20•25 |
750 |
171 |
|||||||||||||||
98 |
ZDR |
3.5 |
1000 |
177 |
|||||||||||||||
98 |
ZDR |
3.5 |
1500 |
||||||||||||||||
98 |
ZDR |
3 |
2000 |
||||||||||||||||
125 |
ZDR |
81 |
200 |
210 |
75 |
32 |
55 |
52 |
M10(depth)20 |
10×35 |
8 |
125 |
110 |
5 |
135 |
M10 |
20 |
||
125 |
ZDR |
45 |
400 |
||||||||||||||||
125 |
ZDR |
35 |
750 |
||||||||||||||||
125 |
ZDR |
45 |
750 |
235 |
|||||||||||||||
125 |
ZDR |
9 |
1000 |
215 |
|||||||||||||||
125 |
ZDR |
15•25 |
1000 |
235 |
|||||||||||||||
125 |
ZDR |
9 |
1500 |
215 |
|||||||||||||||
125 |
ZDR |
15 |
1500 |
235 |
|||||||||||||||
125 |
ZDR |
5•9 |
2000 |
215 |
|||||||||||||||
125 |
ZDR |
15 |
2000 |
235 |
|||||||||||||||
125 |
ZDR |
3•5•9 |
2500 |
215 |
- |
- |
|||||||||||||
125 |
ZDR |
3•5•9 |
3000 |
215 |
225 |
- |
|||||||||||||
125 |
ZDR |
3.5 |
3500 |
215 |
- |
225 |
|||||||||||||
125 |
ZDR |
3.5 |
4000 |
225 |
225 |
- |
|||||||||||||
125 |
ZDR |
3 |
4500 |
225 |
- |
- |
|||||||||||||
125 |
ZDR |
3 |
5000 |
225 |
Note1) Please inquire to us if motor model isn't standard (Matching motor list). (The flange dimension may be different if motor assension is different.)
Note2) Rotation of the output shaft is in the same direction as that of motor input.
Note3) All values are within the range corresponding to helical gear.
Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful ZDR Series Precision Helical Planetary Gearbox manufacturers and ZDR Series Precision Helical Planetary Gearbox suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our ZDR Series Precision Helical Planetary Gearbox and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.
No. of Employees: 1,500 employees
Mission: Zhongda realizes the infinite possibilities in automation applications.
Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.
Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.
Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
Show Information
News & Media
Industry News
How Efficient Are Planetary Gearboxes Compared to Traditional Gear Systems?
In the realm of mechanical engineering, the efficiency of gear systems is a critical factor influencing the performance and energy consumption of vari......
Industry News
What Makes Planetary Gear Motors Tick? A Deep Dive into Precision Engineering
Planetary gear motors have become indispensable components in various industries, driving efficiency and performance to new heights. But what lies ben......
Industry News
How to evaluate the accuracy and stability of planetary gearboxes
Assessing the precision and stability of a planetary gearbox is crucial to ensure its optimal performance and reliability in various applications. In ......
Industry News
How do the materials of internal components affect the performance of a Planetary Gearbox?
Planetary gearboxes play a crucial role in various mechanical systems, offering versatility, efficiency, and power transmission capabilities. However,......
Industry News
How does the temperature rise of an AC gear motor affect its performance and life?
In our daily life and industrial applications, AC gear motors have long become an indispensable source of power. However, during continuous operation,......
Industry News
What processing technology is used for planetary gearboxes?
As a well-known enterprise in the planetary gearbox industry, our company is always committed to providing customers with high-quality, high-performan......
