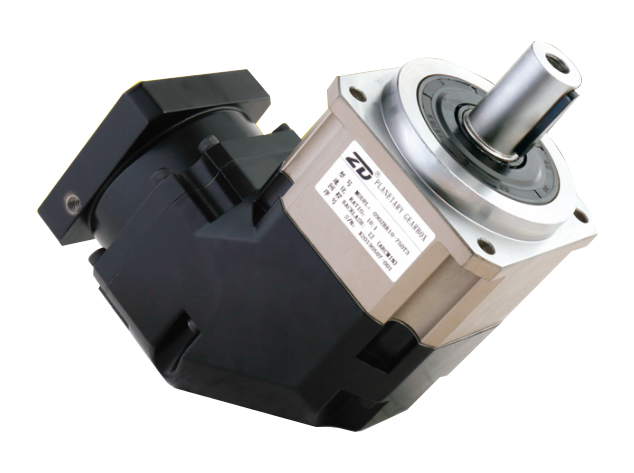

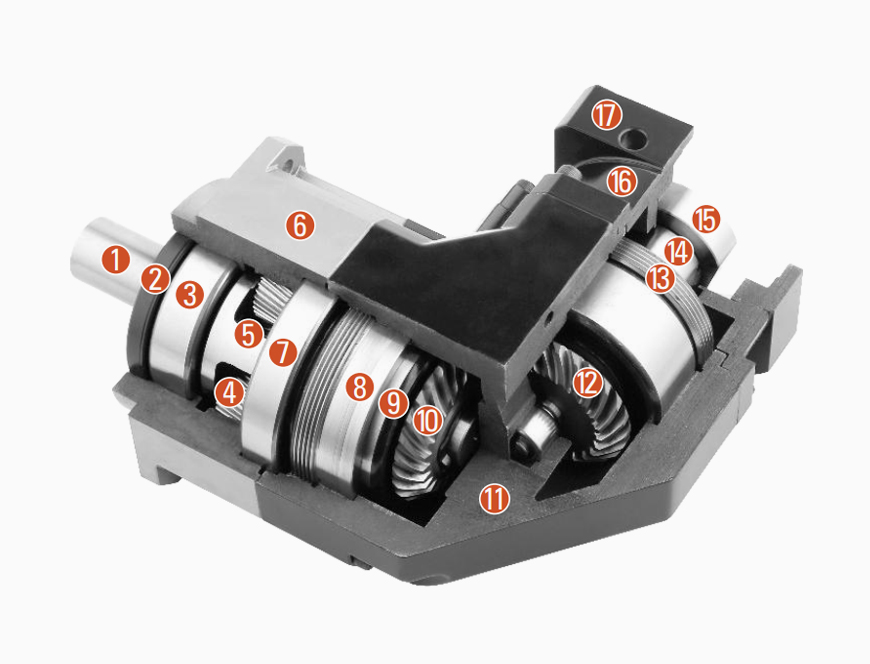

1.Output shaft
2.Oil seal
3.Output shaft front bearing
4.Planetary gear
5.Solar wheel
6.Front cover
7.Output shaft rear bearing
8.Adjusting nut
9.Double row angular contact bearing
10.Output bevel gear
11.Right angle box
12.Input bevel gear
13.Lock nut
14.Input coupling
15.Locking device
16.Rear cover
17.Rear cover gasket
|
Specifications |
Node Number |
Reduction Ratio |
060ZBR |
090ZBR |
115ZBR |
142ZBR |
180ZBR |
|
|
Rated output torque T 2N |
Nm |
1 |
3 |
36 |
90 |
195 |
342 |
588 |
|
4 |
48 |
120 |
260 |
520 |
1040 |
|||
|
5 |
60 |
150 |
325 |
650 |
1200 |
|||
|
6 |
55 |
150 |
310 |
600 |
1100 |
|||
|
7 |
50 |
140 |
300 |
550 |
1100 |
|||
|
8 |
45 |
120 |
260 |
500 |
1000 |
|||
|
9 |
40 |
100 |
230 |
450 |
900 |
|||
|
10 |
40 |
100 |
230 |
450 |
900 |
|||
|
14 |
42 |
140 |
300 |
550 |
1100 |
|||
|
20 |
40 |
100 |
230 |
450 |
900 |
|||
|
Emergency stop torque T 2NOT |
Nm |
1 |
3~200 |
Triple rated output torque |
||||
|
Rated input speed n 1N |
rpm |
1 |
3~200 |
5000 |
4000 |
4000 |
3000 |
3000 |
|
Input speed n1B |
rpm |
1 |
3~200 |
10000 |
8000 |
8000 |
6000 |
6000 |
|
Ultra-precision backlash P0 |
arcmin |
1 |
3~20 |
- |
≤2 |
≤2 |
≤2 |
≤2 |
|
Precision Backlash P1 |
arcmin |
1 |
3~20 |
≤4 |
≤4 |
≤4 |
≤4 |
≤4 |
|
Standard backlash P2 |
arcmin |
1 |
3~20 |
≤6 |
≤6 |
≤6 |
≤6 |
≤6 |
|
Torsional rigidity |
Nm/arcmin |
1 |
3~200 |
7 |
14 |
25 |
50 |
145 |
|
Allowable radial force F 2rB |
N |
1 |
3~200 |
1530 |
3250 |
6700 |
9400 |
14500 |
|
Allowable axial force F 2a1B |
N |
1 |
3~200 |
630 |
1300 |
3000 |
4000 |
6200 |
|
Allowable axial force F 2a2B |
N |
1 |
3~200 |
765 |
1625 |
3350 |
4700 |
7250 |
|
Service life |
hr |
1 |
3~200 |
20000* |
||||
|
Efficiency η |
% |
1 |
3~20 |
>95% |
||||
|
weight |
Kg |
1 |
3~20 |
2.1 |
6.4 |
13 |
24.5 |
51 |
|
Operating temperature |
°c |
1 |
3~200 |
-10°C~ + 90°C |
||||
|
lubricating |
|
1 |
3~200 |
Synthetic lubricating grease |
||||
|
Protection class |
|
1 |
3~200 |
IP65 |
||||
|
Installation direction |
|
1 |
3~200 |
Any direction |
||||
|
Noise distance 1m (n, = 3000rpm, no load) |
dB(A) |
1 |
3~200 |
≤63 |
≤65 |
≤68 |
≤70 |
≤72 |
|
Specifications |
Node Number |
Reduction Ratio |
060ZBR |
090ZBR |
115ZBR |
142ZBR |
180ZBR |
|
|
Moment of inertia J1 |
Kg.cm2 |
1 |
3~10 |
0.35 |
2.25 |
6.84 |
23.4 |
68.9 |
|
14 |
0.07 |
1.87 |
6.25 |
21.8 |
65.6 |
|||
|
20 |
0.07 |
1.87 |
6.25 |
21.8 |
65.6 |
|||
|

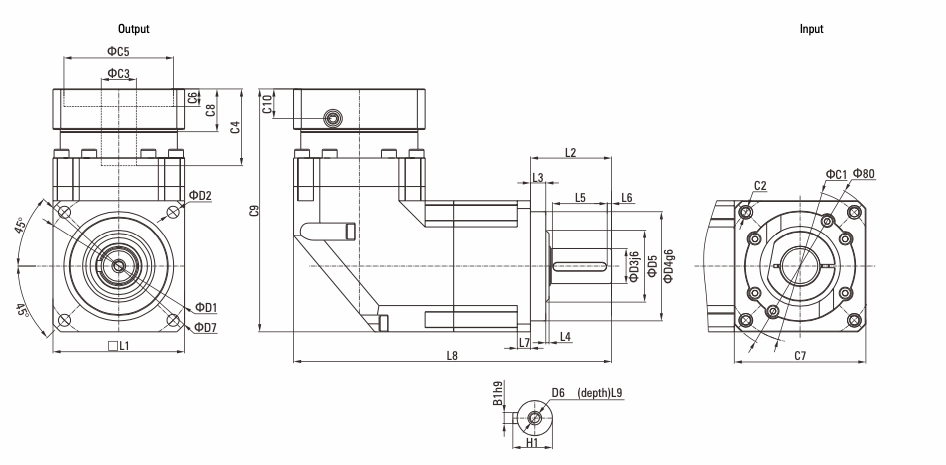

Size |
060ZBR |
090ZBR |
115ZBR |
142ZBR |
180ZBR |
|
D1 |
70 |
100 |
130 |
165 |
215 |
|
D2 |
5.5 |
6.6 |
9 |
11 |
13 |
|
D3 h6 |
16 |
22 |
32 |
40 |
55 |
|
D4 g6 |
50 |
80 |
110 |
130 |
160 |
|
D5 |
45 |
65 |
95 |
75 |
95 |
|
D6 |
M5x0.8P |
M8x1.25P |
M12x1.75P |
M16x2P |
M20x2.5P |
|
D7 |
80 |
116 |
152 |
185 |
240 |
|
L1 |
60 |
90 |
115 |
142 |
180 |
|
L2 |
37 |
48 |
65 |
97 |
105 |
|
L3 |
7 |
10 |
12 |
15 |
20 |
|
L4 |
1.5 |
1.5 |
2 |
3 |
3 |
|
L5 |
25 |
32 |
40 |
63 |
70 |
|
L6 |
2 |
3 |
5 |
5 |
6 |
|
L7 |
6 |
8 |
10 |
12 |
15 |
|
L8 |
145 |
203 |
259 |
333 |
394 |
|
L9 |
12.5 |
19 |
28 |
36 |
42 |
|
C14 |
70 |
100 |
130 |
165 |
215 |
|
C24 |
M5x0.8P |
M6x1P |
M8x1.25P |
M10x1.5P |
M12x1.75P |
|
C34 |
*≤14/≤16 |
≤19/≤24 |
≤32 |
≤38 |
≤48 |
|
C44 |
30 |
40 |
50 |
60 |
85 |
|
C54G6 |
50 |
80 |
110 |
130 |
180 |
|
C64 |
8 |
4 |
5 |
6 |
6 |
|
C74 |
60 |
90 |
115 |
142 |
190 |
|
C84 |
19 |
17 |
19.5 |
22.5 |
29 |
|
C94 |
111.5 |
152.5 |
191.5 |
235.5 |
303.5 |
|
C104 |
13.5 |
10.75 |
13 |
15 |
20.75 |
|
B1h9 |
5 |
6 |
10 |
12 |
16 |
|
H1 |
18 |
24.5 |
35 |
43 |
59 |
