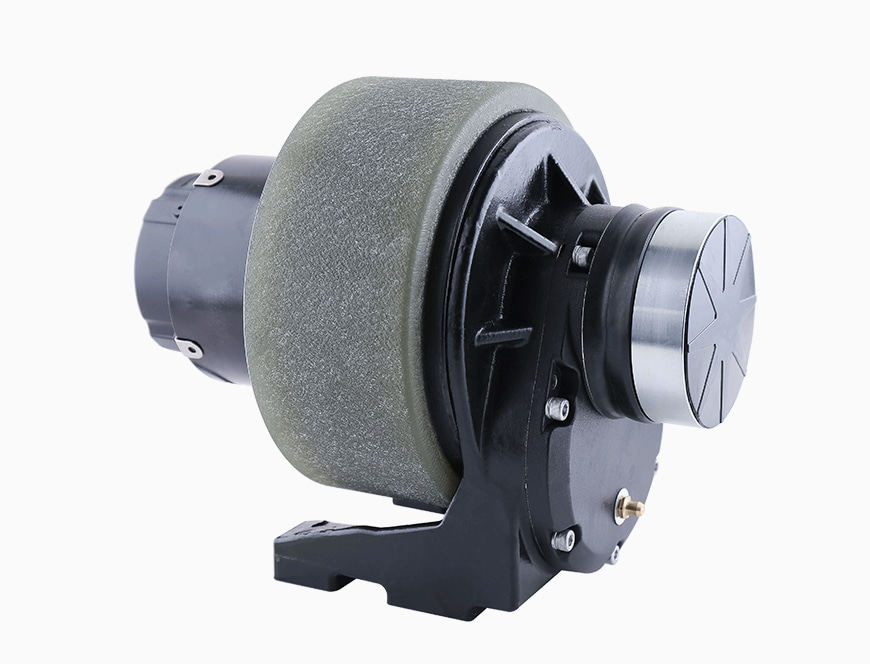

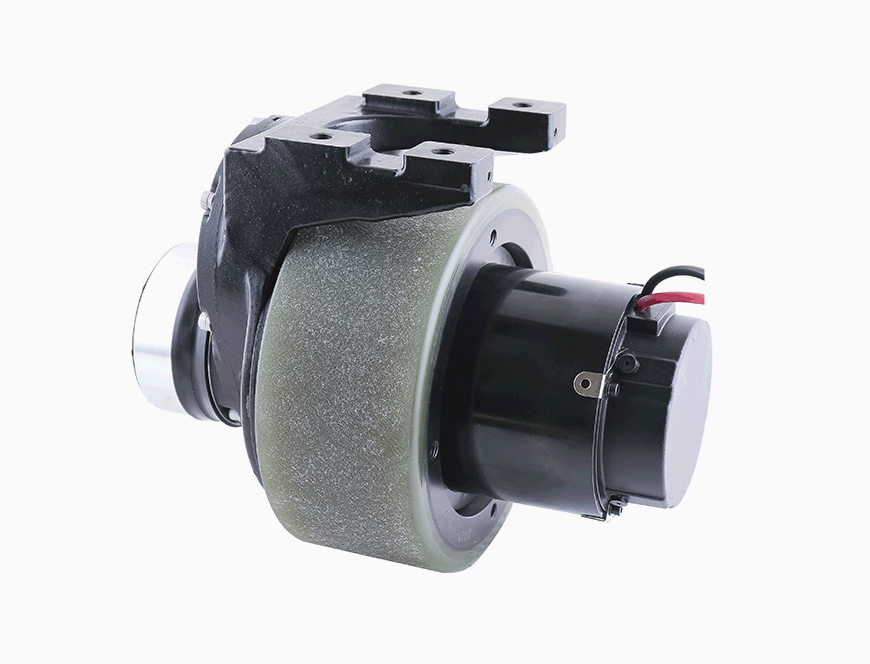

DC Brush Drive Wheel with 180mm Diameter Wheel Suppliers

Home / Products / Intelligent Logistics / Drive Wheel / DC Brush Drive Wheel with 180mm Diameter Wheel




Model Rated voltage Rated power Rated current Rated speed Rated torque Noload current Noload speed Work duty Insulation resistance Brush life Electrical strength Insulation class Protection grade Reducer model Reduction ratio Brake voltage Brake torque Ambient temperature Noise
Z100D550-24A1-30S 24VDC 550W 30A±10% 3000rpm±10% 1.75N.m ≤6A 3500rpm±10% S2(45min) >20MΩ 1200h 660V/S F IP20 ZD-ZH180-25-001 25K /17K 24VDC 6N.m -10℃~+40℃ <60dB (L=100cm)

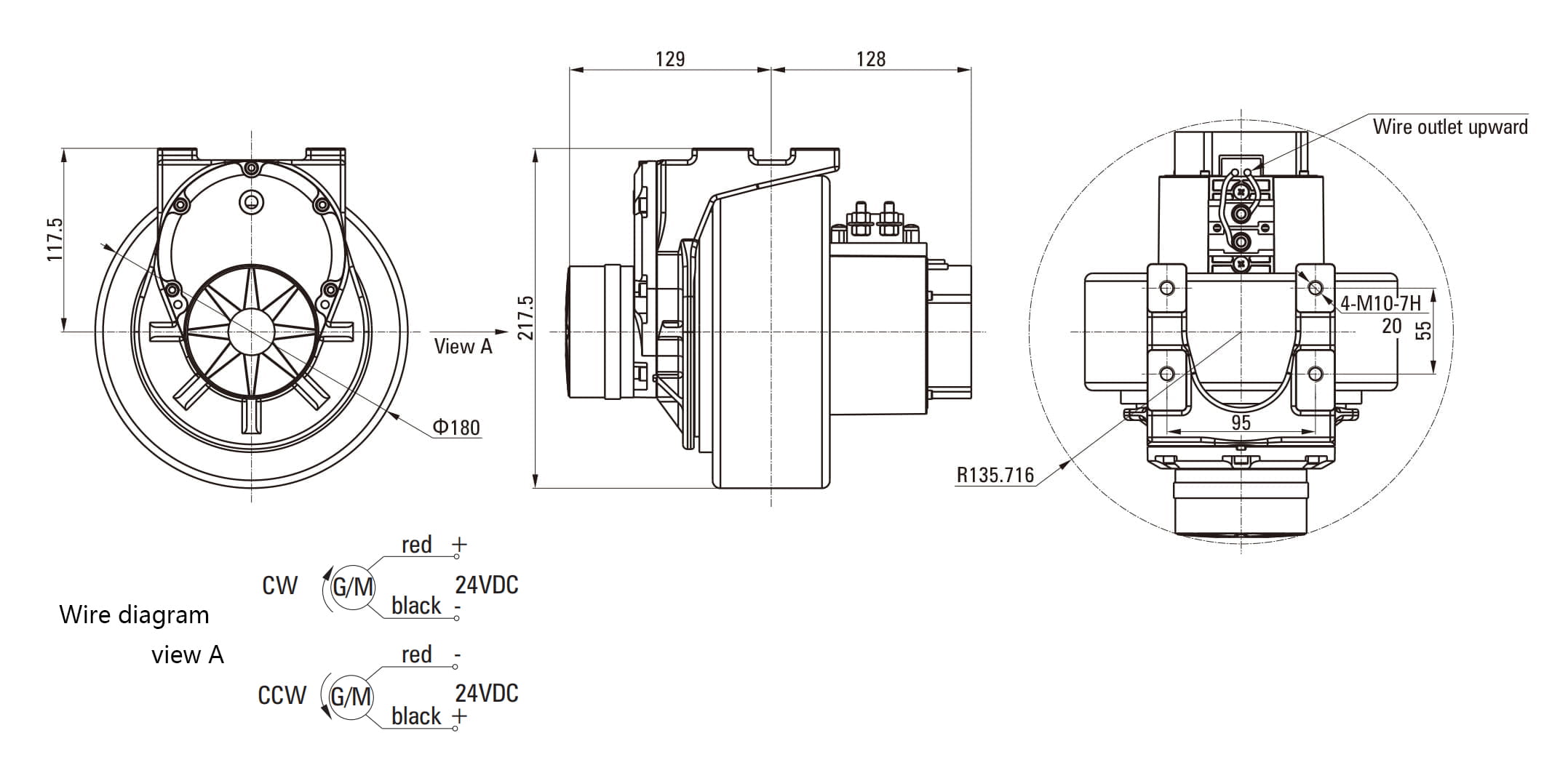

1.The red lead is connected to the positive and the black lead is connected to the negative. Seen from the brake installation end, the drive wheel turns clockwise. When the lead position is reversed, the drive wheel turns in the opposite direction;

2.The whole machine should be able to run smoothly, the sound is harmonious, and there is no noise;

3.Fasteners are firmly connected and tightened in place, no slippage, and threaded glue should be applied;

4.Use non-slip wheels.

Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful DC Brush Drive Wheel with 180mm Diameter Wheel manufacturers and DC Brush Drive Wheel with 180mm Diameter Wheel suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our DC Brush Drive Wheel with 180mm Diameter Wheel and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.

No. of Employees: 1,500 employees

Mission: Zhongda realizes the infinite possibilities in automation applications.

Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.

Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.

Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
