We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

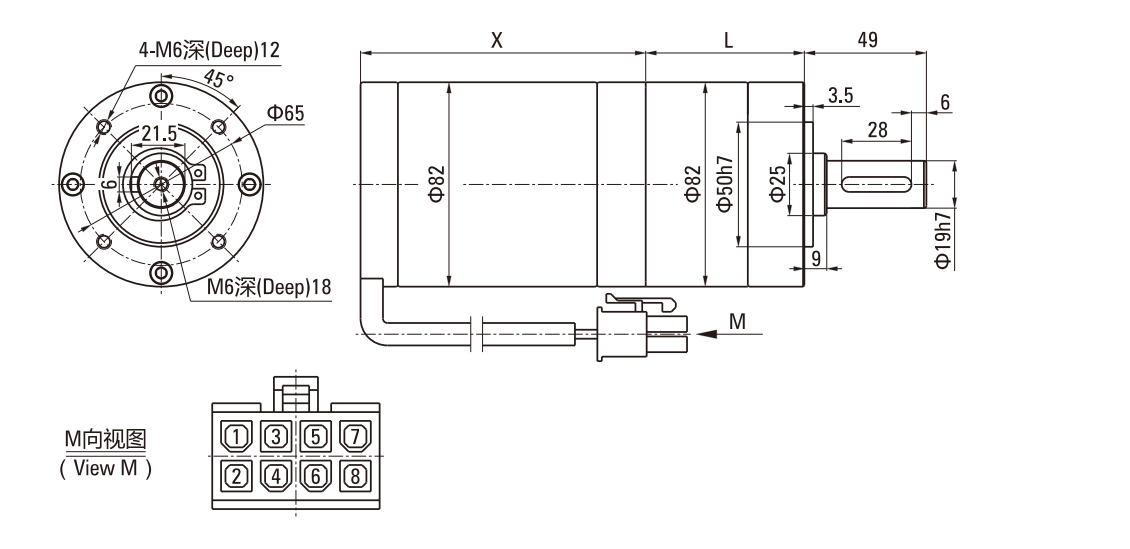

| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| U | V | W | GND | Hv | Hw | Hu | +Vcc |
|
Motor Type |
X Dimension (mm) |
Gearbox Model |
Gear Ratio |
L Dimension (mm) |
|
Z82BLDPN24200-30S |
114.5 |
82PN☐ |
3.65~8.63 |
58.3 |
|
13.53~58.22 |
80.5 |
|||
|
Z82BLDPN24300-30S |
136.5 |
|||
|
67.08~392.98 |
103.2 |
|
Motor Type |
Voltage |
Rated Power |
Rated Cunrert |
Rated Speed |
Rated Torque |
Grade Protection |
|
Z82BLDPN24200-30S |
24 |
200 |
12 |
3000 |
0.637 |
20 |
|
Z82BLDPN24300-30S |
24 |
300 |
18 |
3000 |
0.955 |
20 |
|
Ratio |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
Output shaft speed r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
88 |
67 |
52 |
45 |
37 |
|
Allowable torque N.m |
2.09 |
3.07 |
3.75 |
4.94 |
6.98 |
9.76 |
12.71 |
14.47 |
17.49 |
23.05 |
30.02 |
31.18 |
37.70 |
|
Reduction stage |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
Ratio |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|||
|
Output shaft speed r/min |
33 |
29 |
25 |
23 |
21 |
18 |
16 |
13 |
10 |
8 |
|||
|
Allowable torque N.m |
42.46 |
47.82 |
55.30 |
59.37 |
67.56 |
76.98 |
89.03 |
107.64 |
120.0 |
120.0 |
|||
|
Reduction stage |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
