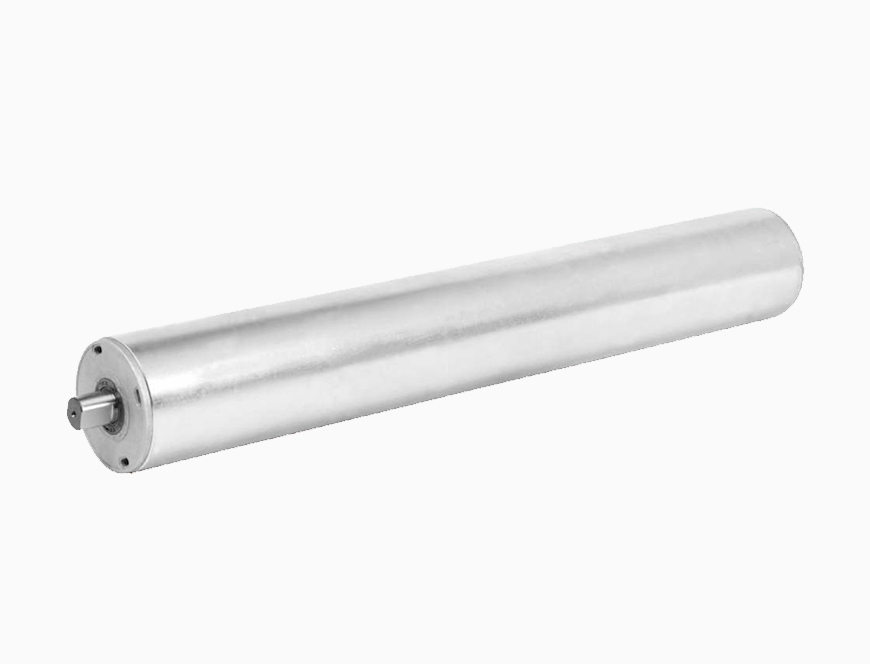

150W BL80 Brushless DC Motor Roller

150W BL80 Brushless DC Motor Roller


We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Contact Us

■ Product Information

This type of drum motor can be installed in limited space and meet the torque requirement.Using alloy steel grinded gears and planetary transmission structure,it is reliable,free of maintenance and oi-renewing,space-saving.It can be use in many fields:

●Supermarket cashier
●Packaging machinery
●Belt conveyor line

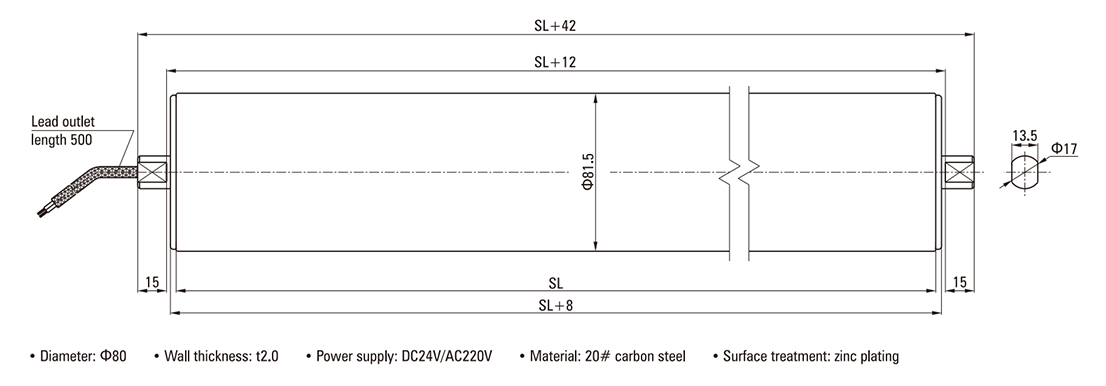

■ BL80 Characteristics Of Drum Motor

●Drum Shell

•Material of standard drum shell is mild steel•Food garde shell is 304 stainless steel •Standard cylinder rlling mill gear slip flower - gear•High alloy steel precision, ensures low noise transmission when the• Planetary gear transmission





■ Basic Characteristics Of Motor

●External diameter80 drum motor (DC Power Supply When Applied To 24VDC/36VDC/48VDC)

Rated power (continuous)

W

120

Rated speed

r/min

3000

Rated torque

N.m

0.478

Irtstantarwous maximum torque

N.m

0.72

Speed control range

RPM

200~3000

Speed control range

On load

Below ±1%: condition 0~rated torque, rated speed, rated voltage, room temperature

On voltage

Below ±1%: condition rated voltage ±10%, rated speed, rated load,room temperature

On temperature

Below±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed

Power input

Rated voltage

V

Single phase 110V

Single phase 220V 24VDC(Optional 36VDC/48VDC)

Voltage tolerance range

±10%

Frequency

Hz

50/60

/

Frequency tolerance range

±5%

/

Rated iutput current

A

3.89

1.95

8.9

Instantaneous maximum input current

A

5.84

3.0

13.4

Rated Power P
W

 Gear Box Series

Reduction Ratio i

Max Speed V
m/min

Rated Speed n
RPM

Rated Torque T
Nm

Traction F
N

Length SL
mm

150W

One Stage

3.65

211.7

821.9

1.570

39.25

≥360~1000

5.36

144.0

559.7

2.300

57.50

6.55

118.0

458.0

2.810

70.25

8.63

89.50

347.6

3.710

92.75

Two Stage

13.53

57.00

221.7

5.230

130.8

≥380~1000

18.92

41.00

158.6

7.320

183.0

24.65

31.00

121.7

9.530

238.3

28.05

27.50

106.9

10.85

271.3

33.92

22.80

88.40

13.11

327.8

44.69

17.00

67.10

17.28

432.0

58.22

13.00

51.50

22.52

563.0

Three Stage

67.08

11.50

44.70

23.35

583.75

≥400~1000

81.11

9.500

36.90

28.23

705.75

91.36

8.500

32.80

31.80

795.00

102.88

7.500

29.10

35.81

895.25

118.98

6.500

25.20

41.41

1035.3

127.74

6.000

23.50

44.46

1111.5

145.36

5.000

20.60

50.60

1265.0

165.64

4.600

18.10

57.66

1441.5

191.56

4.000

15.60

66.68

1667.0

231.61

3.000

12.90

80.62

2015.5

301.68

2.500

9.900

84.00

2100.0

392.98

2.000

7.600

84.00

2100.0



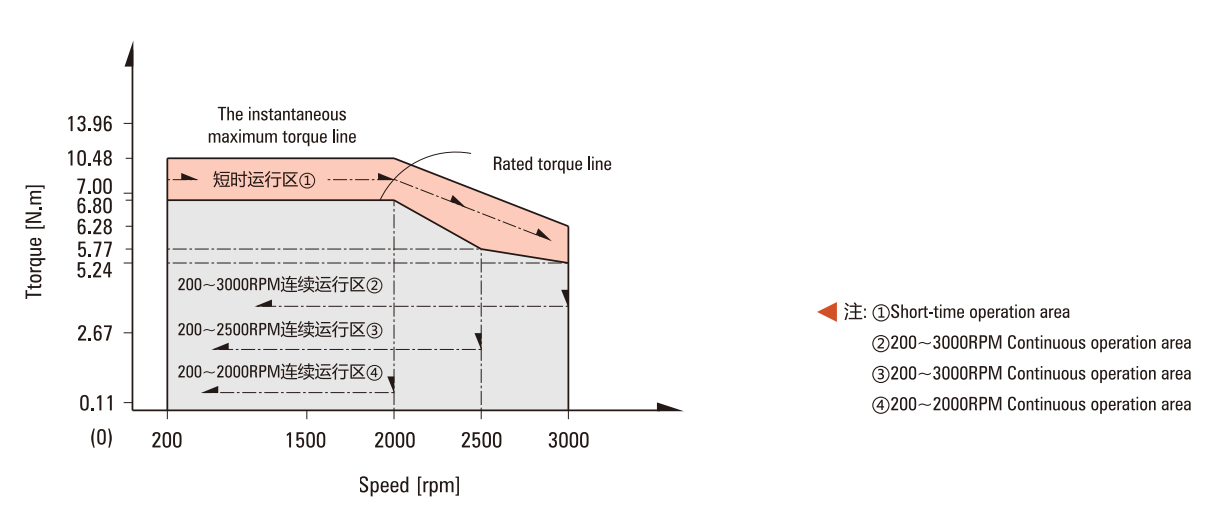

●This parameter is used for motor speed range in 200~ 300RPM
Take the two stage of the reduction, the reduction ratio of 13.53K for the roller as an example .

Blue(thick)

Yellow(thick)

Green(thick)

Red(fine)

Yellow(fine)

Green(fine)

Blue(fine)

black(fine)

W

U

V

Vcc+5V

Hu

Hv

Hw

GND
