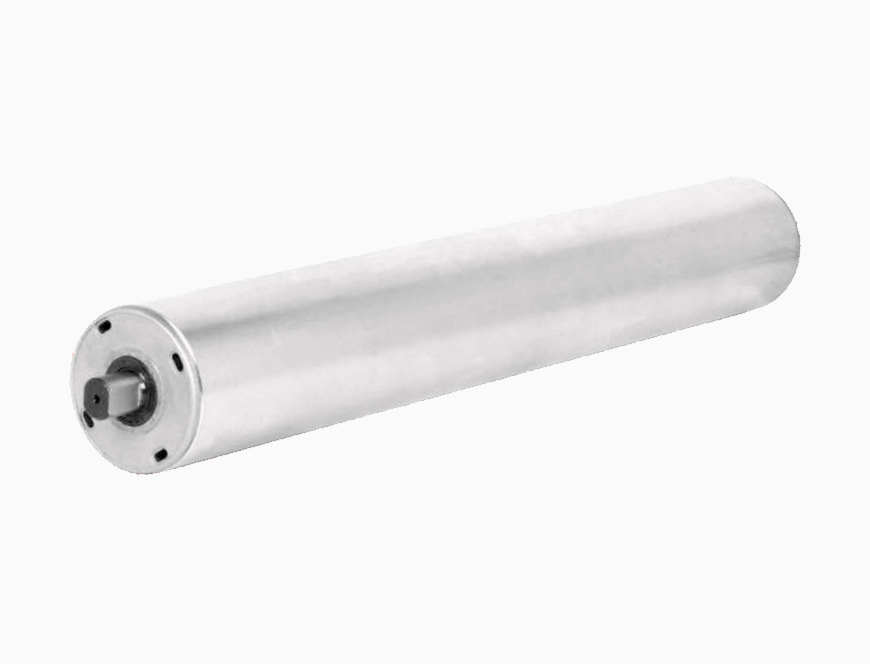

40W BL50 Brushless DC Motor Roller

40W BL50 Brushless DC Motor Roller


We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Product Information

This type of motor roller can be installed in limited space and meet the torque requirement. Using alloy steel grinded gears and planetary transmission structure，it is reliable, free of maintenance and oil-renewing, space-saving. It can be use in many fields：

●Supermarket cashier
●Packaging machinery
●Belt conveyor line

■ BL50 Characteristics Of Motor Roller

●Roller Shell

•Material of standard roller shell is mild steel

•Food garde shell is 304 stainless steel

•Standard cylinder rolling mill gear slip flower - gear

•High alloy steel precision, ensures low noise during transmission

• Planetary gear transmission





■ Basic Characteristics Of Motor

●External diameter 50 motor roller (DC Power Supply When Applied To 24VDC/36VDC/48VDC)

Rated power (continuous)

W

40

Rated speed

r/min

3000

Rated torque

N.m

0.127

 Irtstantarwous maximum torque

N.m

0.191

Speed control range

RPM

200~2500

Speed control range

On load

Below ±1%： condition 0~rated torque, rated speed, rated voltage, room temperature

On voltage

Below± 1%: condrtion rated voltage  ±10%, rated speed, rated load, room temperature

On temperature

Below±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed

Power input

Rated voltage

 V

Single phase 110V

 Single phase 220V 24VDC(Optional 36VDC/48VDC)

Voltage tolerance range



±10%

Frequency

 Hz

50/60

/

Frequency tolerance range



±5%

/

Rated input current

 A

0.72

0.36

2.70

Instantaneous maximum input current

 A

1.40

0.55

5.60



Product Description

Rated Power P
W

Gear Box Series

Reduction Ratio i

Max Speed V
m/min

Rated Speed n
RPM

Rated Torque T
Nm

Traction F
N

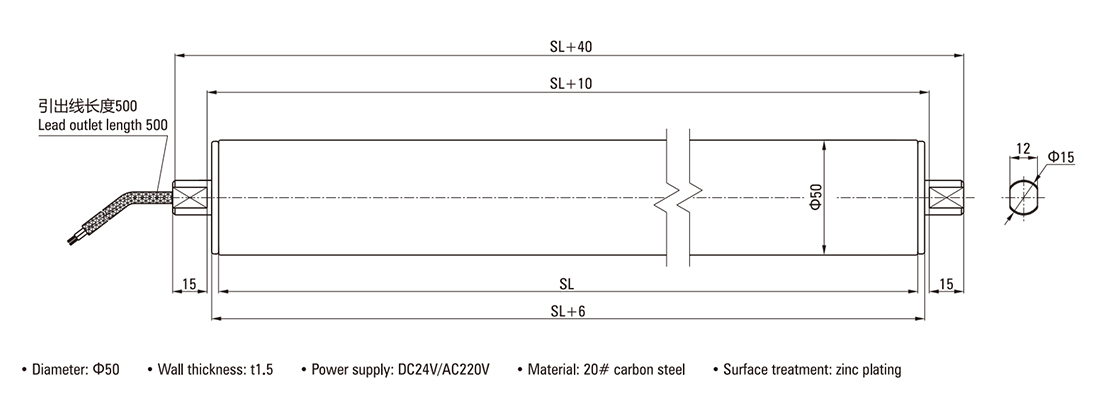

Length SL
mm

40W

One Stage

3.65

129

821.9

0.420

16.80

≥260~800

5.36

88.0

559.7

0.610

24.40

6.55

72.0

458.0

0.750

30.00

8.63

54.6

347.6

0.990

39.60

Two Stage

13.53

35.0

221.7

1.390

55.60

≥270~800

18.92

25.0

158.6

1.950

78.00

24.65

19.0

121.7

2.540

101.6

28.05

16.8

106.9

2.890

115.6

33.92

14.0

88.40

3.500

140.0

44.69

10.5

67.10

4.610

184.4

58.22

8.00

51.50

6.000

240.0

Three Stage

67.08

7.00

44.70

6.240

249.6

≥290~800

81.11

5.80

37.00

7.540

301.6

91.36

5.00

32.80

8.490

339.6

102.88

4.60

29.20

9.560

382.4

118.98

4.00

25.20

11.06

442.4

145.36

3.20

20.60

13.51

540.4

165.64

2.80

18.10

15.00

600.0

231.61

2.00

12.90

15.00

600.0

301.68

1.50

9.900

15.00

600.0

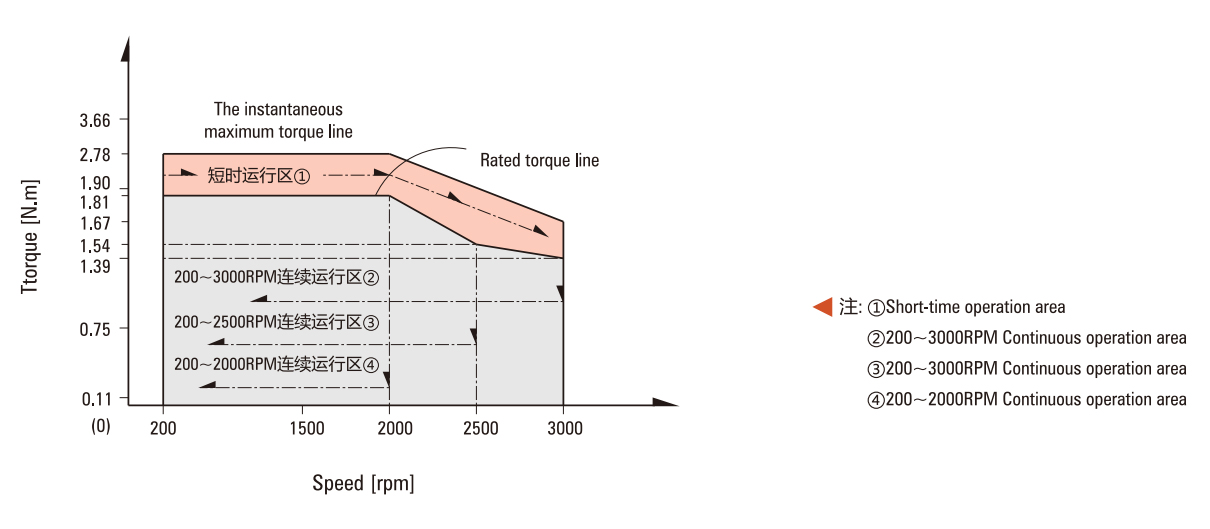

●This parameter is used for motor speed range in 200~ 300RPM
Take the two stage of the reduction, the reduction ratio of 13.53K for the roller as an example .

Blue(thick)

Yellow(thick)

Green(thick)

Red(thin)

Yellow(thin)

Green(thin)

Blue(thin)

black(thin)

W

U

V

Vcc+5V

Hu

Hv

Hw

GND
