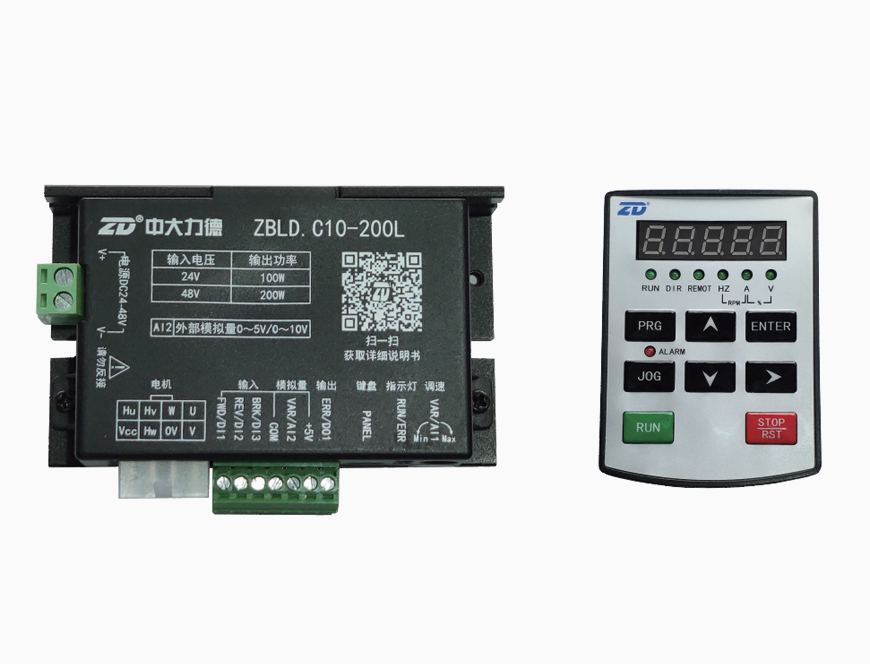

ZBLD.C10-200L Low Voltage DC Brushless Motor Driver Suppliers

Home / Products / Motor Driver & Controller / Brushless DC Motor Driver / ZBLD.C10-200L Low Voltage DC Brushless Motor Driver

Features

● Compact:Suitable for limited space : 93mm*56mm*21mm

● Voltage & Current:Input voltage 24V~48V(±20%),output current 7A (adjustable via keyboard)

● Operation Mode:Open loop, closed loop ( control accuracy ±0.5%)

● Command Setting:Multi-function input terminal control (NPN input) External keyboard control

● Speed Setting:Built-in knob, external analog voltage or PWM (0~5V/10V), keyboard setting

●Acceleration/Deceleration Control:0.3s~10s Adjustable by keyboard

● Electronic Brake:Fast electromagnetic braking

● Multi-function Input Interface:3 digital inputs (NPN), setting via keyboard: forward rotating, reverse rotating, free stop, electronic brake, multi-function for imputting etc.

● Multi-function Output Interface:1 digital output (open collector output), setting via keyboard: running, error, speed output, overload warning, etc.

● Fault Indication & Protection:Show the error information by LED or keyboard after the protection for the error indication, such as: under voltage, over voltage, over current, over load, locked rotor, phase shortage, over temperature etc.

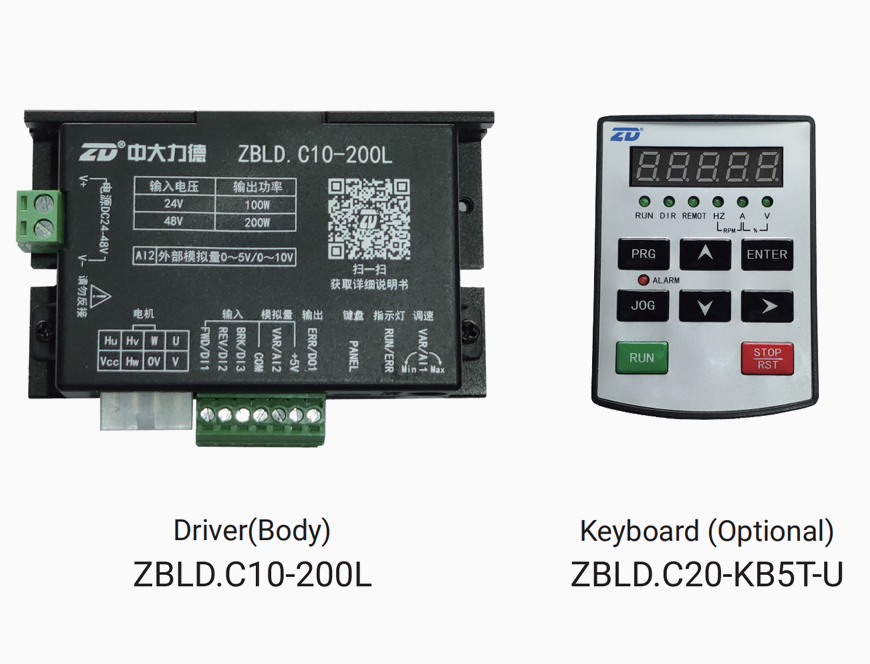

*Keyboard control, multi-function input, multi-function output could be realized with an external keyboard.

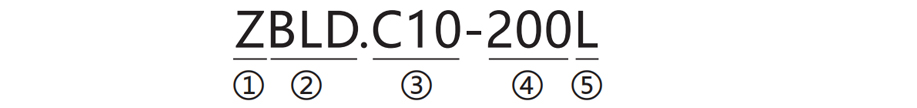

Product Model



Mark

Introduction

Content

Company

Z: ZD Leader

Model

BLD: Brushless Motor Driver

Version

C10:C10 Series

Power

200:Max. Output Power200W

Index

L: DC24V~48V

H: High Voltage AC 220V










Requirements of Environment

Environment Temperature

Environment Humidity

Altitude

Environmental Vibration

Protection Degree

-10℃~ +40℃(No condensation)

Less than 85% (No condensation)

Lower than 1000 m

No continuous vibration or over impact

IP20

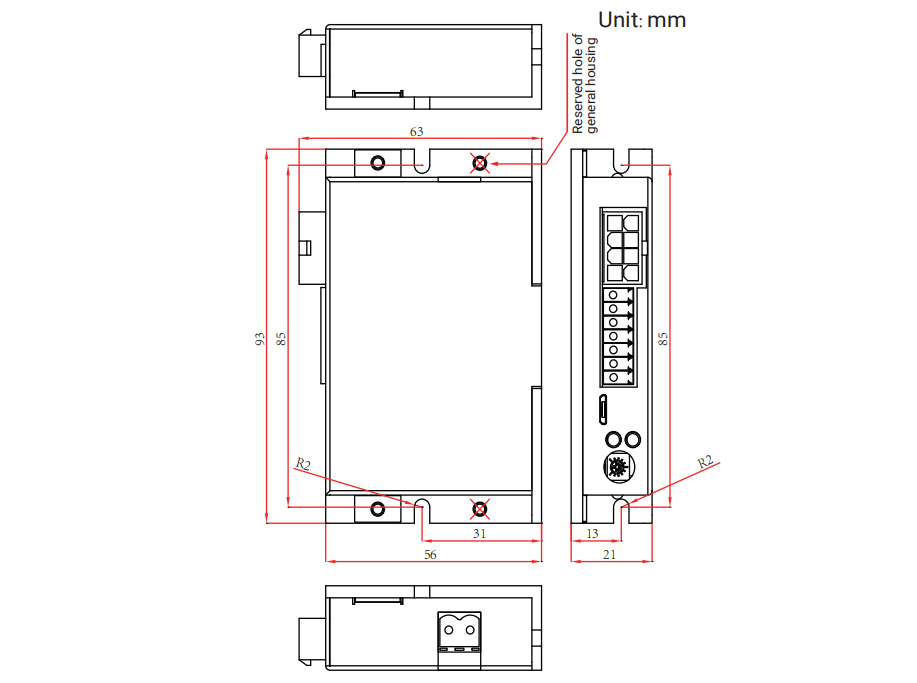

How to Install

Wall-hanging

To prevent explosion, injury and fire, please do not use in explosive environments, flammable gas, corrosive environments and anywhere easy to get wet or around

combustibles.

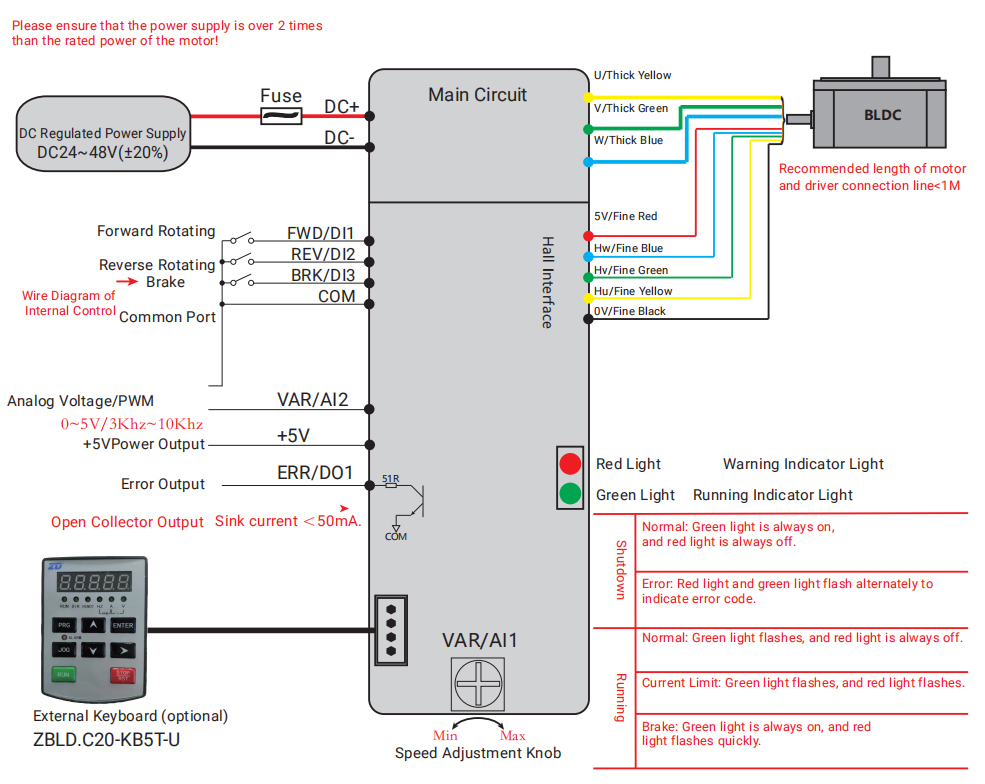

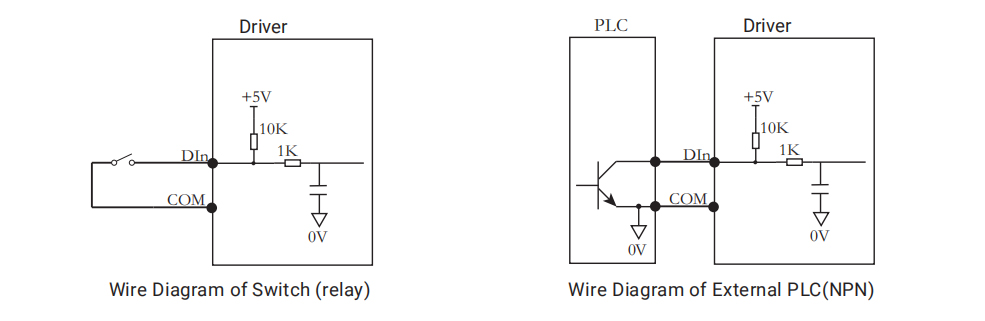

Start-stop Control: External switches (relay) and PLC (NPN) could be installed for start-stop controlling.

Attention:

1.The power supply should be turned off before wire connecting, and the wiring work should be carried out by professional engineers;

2.Please do not connect the power cable reversely, and do not connect to other terminals except the power terminal, otherwise the driver may be damaged;

3.The ground terminal must be well earthed;;

4.Please tighten the screws between the connecting terminals and wires to avoid loosening;

5.Please check again if all connections are correct after circuit wiring.

6.Please do not use it for vertical lifting with load!



The driver will stop once it detects an error and indicates the error code through LED (red, green) or external keyboard at the same time; users can make trouble-shooting according to the error code.

Green light flashes once for 5    Red light flashes once for 1                Error code = Green light flashing times*5 + Red light flashing times

Error Code

Error Name

Error Indication

Cause

How to Solve

1

Hardware Acceleration Overcurrent

01

1.Excessively Fast Acceleration or Deceleration

2.Low Voltage

3.Low power of Driver

4.Shock Load

5.Short Circuit Between Phase

6.Strong Interference from outside

1.Increase Time for Acceleration & Deceleration

2.Check the input voltage

3.Select driver with large power

4.Check if it is loaded normally

5.Check/Change cable or motor

6.Check if there exists strong interference outside

2

Hardware Deceleration Overcurrent

02
3

Hardware Constant Speed Overcurrent

03
4

Software Acceleration Overcurrent

04
5

Software Deceleration Overcurrent

05
6

Software Constant Speed Overcurrent

11
7

Overvoltage during Acceleration

12

1.High Input Voltage

2.Speedy Forward and Reverse Switch

3.In the statue of power generation due to external force

1.Check the power supply voltage

2.Increase time for forward and rever-se switching

3.Add external brake
8

Overvoltage during Deceleration

13
9

Overvoltage during Running of Constant Speed

14
10

Busbar Undervoltage

15
1.Low Voltage

2.External Power Supply Protection for Fast Acceleration

3.Voltage Drop

4.Driver hardware is abnormal

1.Check the input voltage

2.Increase acceleration time

3.Error Reset

4.Ask for engineer assisting

11

Motor Overload

21

1.Low Voltage

2.Motor Overpower

3.Rotor Blocked or Load Sudden Change

1.Check the input voltage

2.Use rated current of the motor

3.Reduce the load and check the motor and machine

12

Driver Overload

22

1.Low Voltage

2.Fast Acceleration

3.Overload

1.Check the input voltage

2.Increase acceleration time

3.Change to driver with larger power

13

Error of Hall

23

1.Disconnection of Hall

2.Strong Interference from Outside

1.Check the connection of Hall

2.Check if there exists strong interference outside

14

Locked

24

1.Overload

2.Motor Locked

1.Check the mechanical connection of motor

2.Check the wire diagram of motor

16

Driver Overheating Error

31

1.Overload

2.Driver hardware is abnormal

1.Cooling

2.Reduce the rated power

19

Current Error

34

1.Driver Hardware Broken

1.Change the driver

27

Data Storage Error

52

1.Reach to the MAX quantity for Power-up Clear( PUC)

1.Power-on Again

29

Error of Over-current Feedback

54

1.Driver Hardware Broken

1.Change the driver

30

Error of Lack Input Phase

55

1.U/V/W Lack Input Phase

2.Driver Hardware Broken

1.Check if U/V/W are correctly conn-ected

2.Change the driver
