120W GU Type 90 Series Of Brushless DC Gear Motors

120W GU Type 90 Series Of Brushless DC Gear Motors


We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

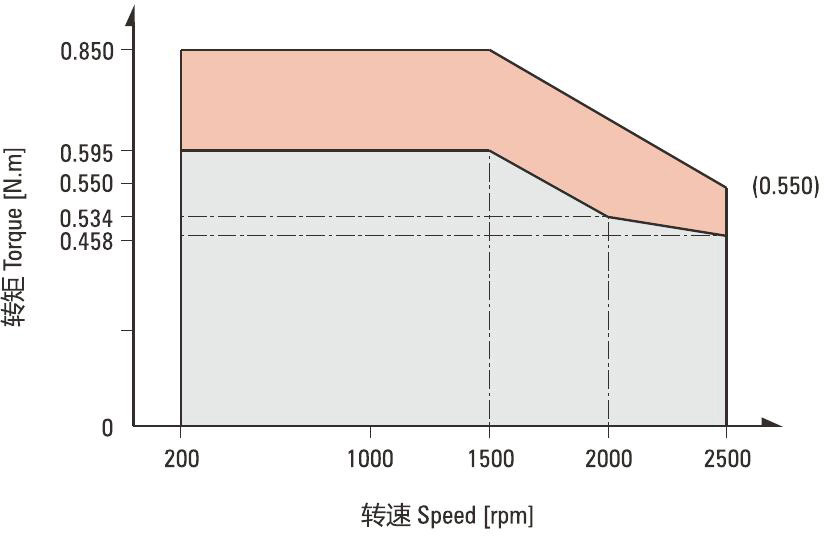

■ Basic Characteristics Of Motor

●120W (DC Power Supply When Applied To 24VDC/36VDC/48VDC)



Rated power (Continuous)

W

120 (60W/90W/120W)

Rated speed

r/min

2500

Rated torque

N.m

0.458

Instantaneous maximum torque

N.m

0.687

Rotor moment of inertia

J:X10-4kg.m2

0.250

Speed control range

RPM

High pressure 200-2500RPM (Low pressure 200-3000RPM)

Speed control range

On load

Below ± 1 %: condition 0~rated torque, rated speed, rated voltage, room temperature

On voltage

Below±1%: condition rated voltage ±10%, rated speed, rated load, room temperature

On temperature

elow±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed

Power input

Rated voltage

 V

Single phase 110V

 Single phase 220V 24VDC(Optiond 36VDC/48VDC)

Voltage tolerance range

±10%

Frequency

 Hz

50/60

/

Frequency tolerance range

±5%

/

Rated input current

 A

3.5

2.0

6.8

Instantaneous maximum input current

 A

7.0

4.5

13.0

Product Description

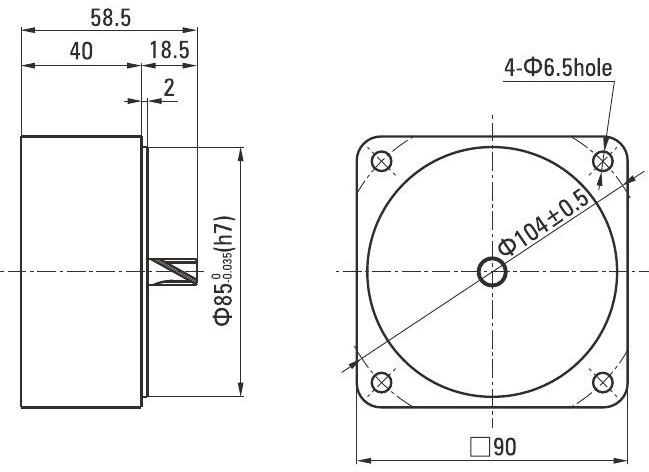

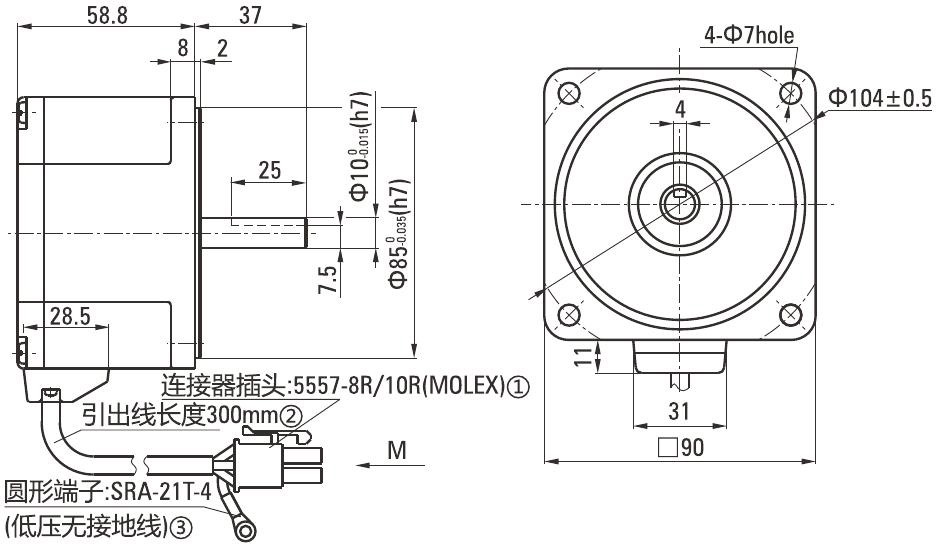

● Z5BLD120-DA-25S ◘ 一Voltage 24/36/48/110/220



①Connector: 5557-8R/10R (MOLEX ) ②Lead wire length 300mm ③Round terminal: SRA-21T-4 (Low ground)

● Z5BLD120-220A-25S Diagram(ZD Standard Drive)

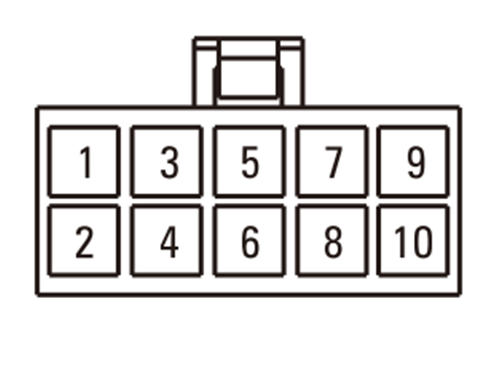

● Low Voltage Wrie Plughole Corresp-onding Signal Explanation

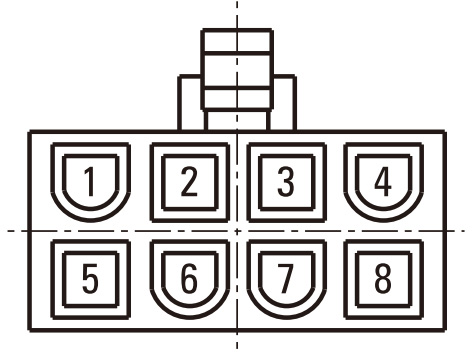

● High Voltage Wrie Plughole Corresp-onding Signal Explanation

plughole

1

2

3

4

signal

U

W

Hv

Hu

plughole

5

6

7

8

signal

V

GND

Hw

Vcc
Corresponding meaning

1

2

3

4

5

6

7

8

9

10

Blue (thick)

Yellow (thin)

Yellow (thick)

Green (thin)

Green (thick)

Blue (thin)



Metal mesh

Red (thin)

Black (thin)

W

Hu

U

Hv

V

Hw





Vcc+5V

GND

Product Description

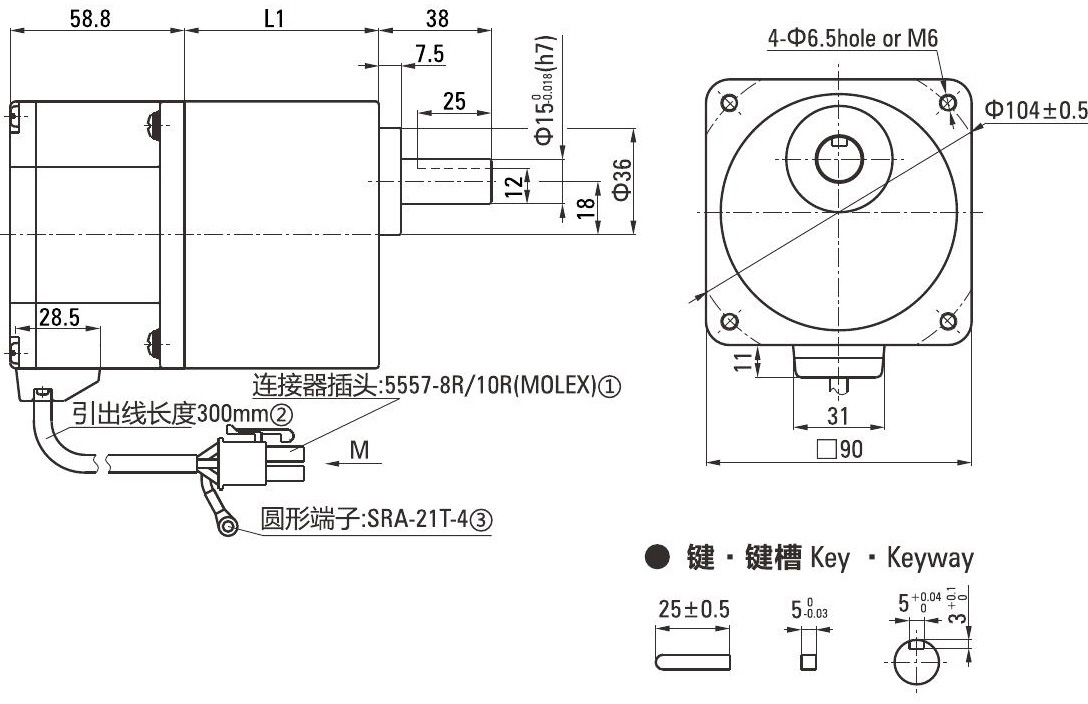

● Parallel Shaft Speed Reducer

Z5BLD120-◘GU-25S/5GU□K  ◘—Voltage 24/36/48/110/220  □—Velocity Ratio Value





①Connector:5557-8R/10R(MOLEX) ②The sheath length of lead line 300mm  ③Round terminal:SRA-21T-4

● Decimal Gearhead

5GU□XK

□—Velocity Ratio Value, Generally 10



Gearhead Model

Gear Ratio

L Dimension

5GU□K

3-200

65.5



•Enter the gear ratio in the box (□) within the model name



•Z5BLD60-◘GU-25S/5GU□K Machine Allowable Torque (Unit: N.m)



Model

MotorSpeed/Reduction Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200

200-1500RPM

0.72

0.87

1.21

1.45

1.81

2.17

2.41

3.02

3.62

4.34

4.35

5.44

6.53

7.83

9.83

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

Z5BLD60-◘GU



2000RPM

0.69

0.84

1.16

1.39

1.74

2.09

2.09

2.61

3.14

3.76

3.78

4.72

5.67

6.80

9.45

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

2500RPM

0.56

0.67

0.93

1.11

1.39

1.67

1.67

2.09

2.51

3.01

3.03

3.78

4.54

5.45

7.56

9.08

10.0

10.0

10.0

10.0

10.0

10.0

10.0



•Z5BLD90-◘GU-25S/5GU□K   Machine Allowable Torque (Unit: N.m)



Model



MotorSpeed/Reduction Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200

200-1500RPM

1.09

1.30

1.81

2.18

2.72

3.26

3.62

4.53

5.43

6.52

6.53

8.16

9.79

11.8

14.7

17.7

20.0

20.0

20.0

20.0

20.0

20.0

20.0

Z5BLD90-◘GU



2000RPM

1.04

1.25

1.74

2.09

2.61

3.13

3.14

3.92

4.71

5.65

5.67

7.09

8.51

10.2

14.2

17.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

2500RPM

0.84

1.00

1.39

1.67

2.09

2.51

2.51

3.14

3.76

4.52

4.53

5.67

6.81

8.17

11.3

13.6

17.0

20.0

20.0

20.0

20.0

20.0

20.0



•Z5BLD120-◘GU-25S/5GU□K Machine Allowable Torque (Unit: N.m)



Model



MotorSpeed/Reduction Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200

200-1500RPM

1.45

1.74

2.41

2.90

3.62

4.34

4.35

5.44

6.53

7.83

7.87

9.83

11.8

14.2

19.7

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

Z5BLD120-◘GU



2000RPM

1.39

1.67

2.32

2.78

3.48

4.18

4.18

5.23

6.27

7.53

7.56

9.45

11.3

13.6

18.9

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

2500RPM

1.11

1.34

1.86

2.23

2.78

3.34

3.35

4.18

5.02

6.02

6.05

7.56

9.08

10.9

15.1

18.2

20.0

20.0

20.0

20.0

20.0

20.0

20.0



Note :The■ (gray) in the table indicates that the rotation direction is consistent with the motor.(The torque under different speed and speed ratio is obtained under the ZD standard.)

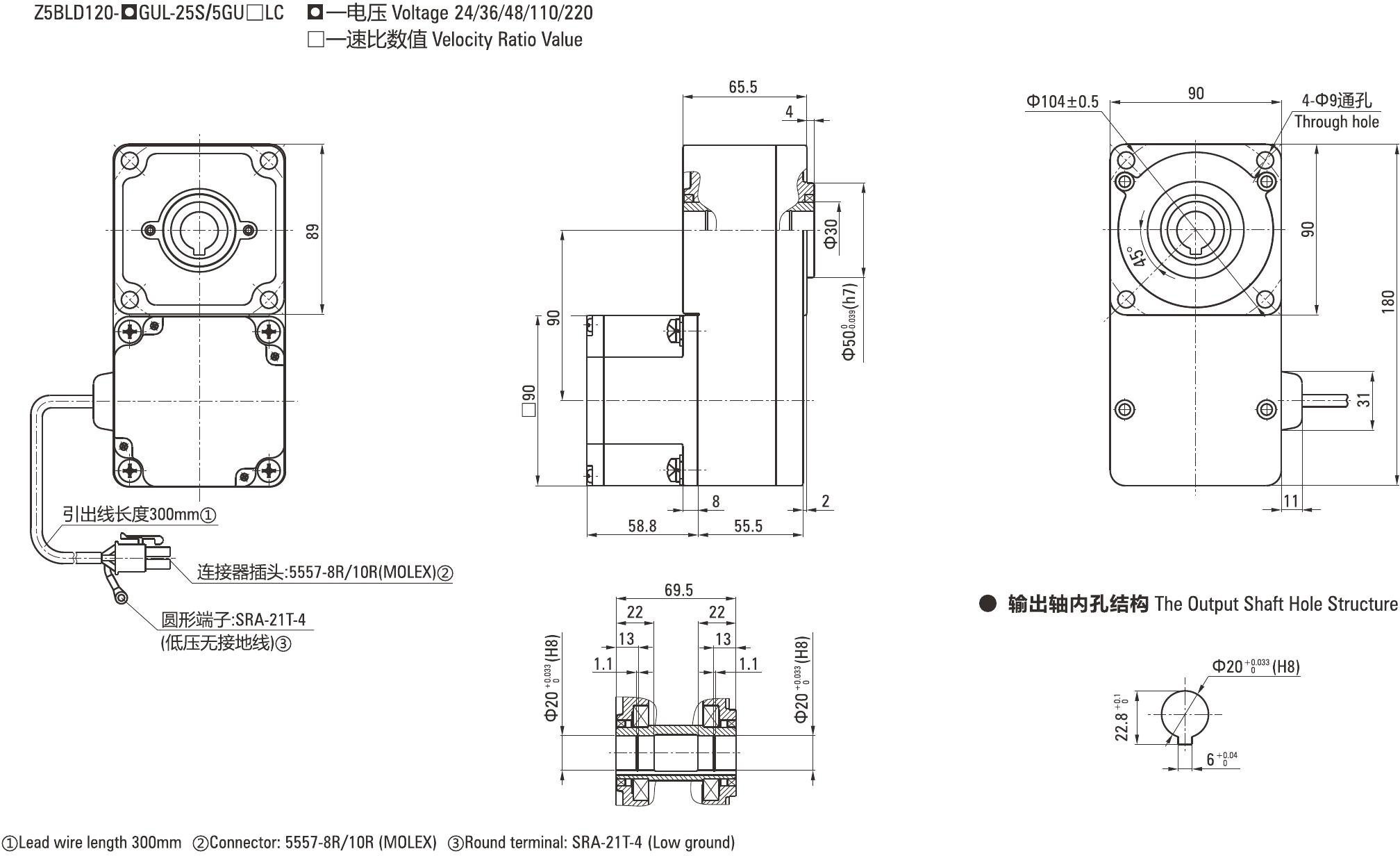

 •L Type Speed Reducer





•Z5BLD60-◘GUL-25S/5GU□LC Machine Allowable Torque (Unit: N.m)



MotorSpeed/Reduction Ratio

5

10

15

20

30

50

100

200

200～1500RPM

1.09

2.18

3.26

4.35

6.53

10.9

21.8

43.5

2000RPM

0.92

1.84

2.76

3.68

5.52

9.20

18.4

36.8

2500RPM

0.84

1.67

2.51

3.35

5.02

8.37

16.7

33.5



•Z5BLD90-◘GUL-25S/5GU□LC Machine Allowable Torque (Unit: N.m)



MotorSpeed/Reduction Ratio

5

10

15

20

30

50

100

200

200～1500RPM

1.63

3.26

4.90

6.53

9.79

16.3

32.6

65.3

2000RPM

1.38

2.76

4.14

5.52

8.28

13.8

27.6

55.2

2500RPM

1.25

2.51

3.76

5.02

7.53

12.5

25.1

50.2



•Z5BLD120-◘GUL-25S/5GU□LC Machine Allowable Torque (Unit: N.m)



MotorSpeed/Reduction Ratio

5

10

15

20

30

50

100

200

200～1500RPM

2.41

4.83

7.24

9.65

13.1

21.8

43.5

68.0

2000RPM

2.04

4.08

6.13

8.17

11.0

18.4

36.8

66.6

2500RPM

1.67

3.35

5.02

6.69

10.0

16.7

33.5

60.5



Note :All gearbox output turn direction in form are opposite as motor turn direction. (The torque under different speed and speed ratio is obtained under the ZD standard.)

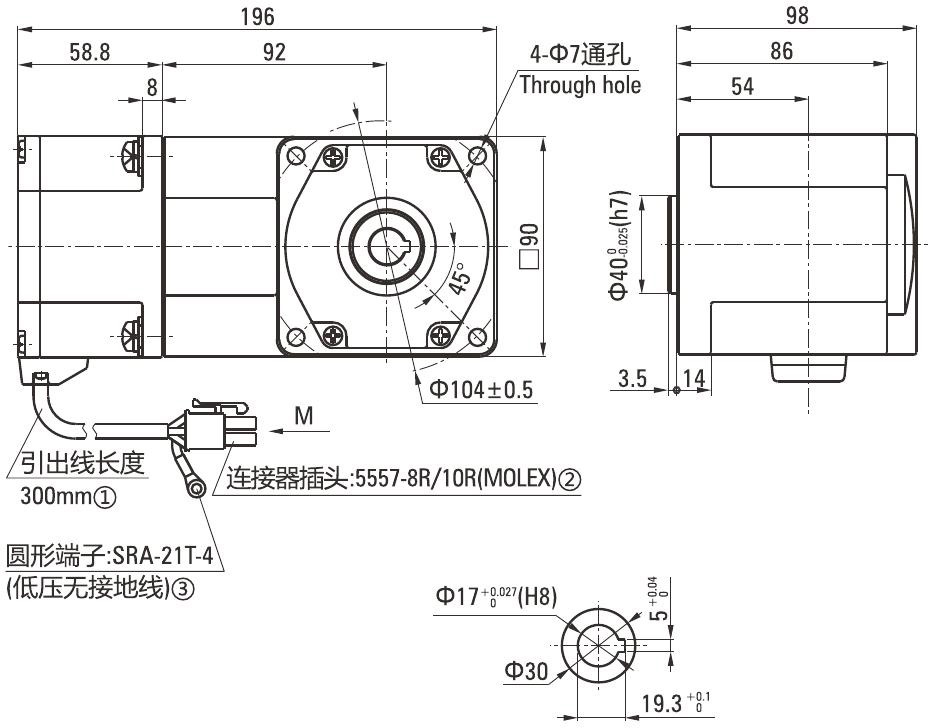

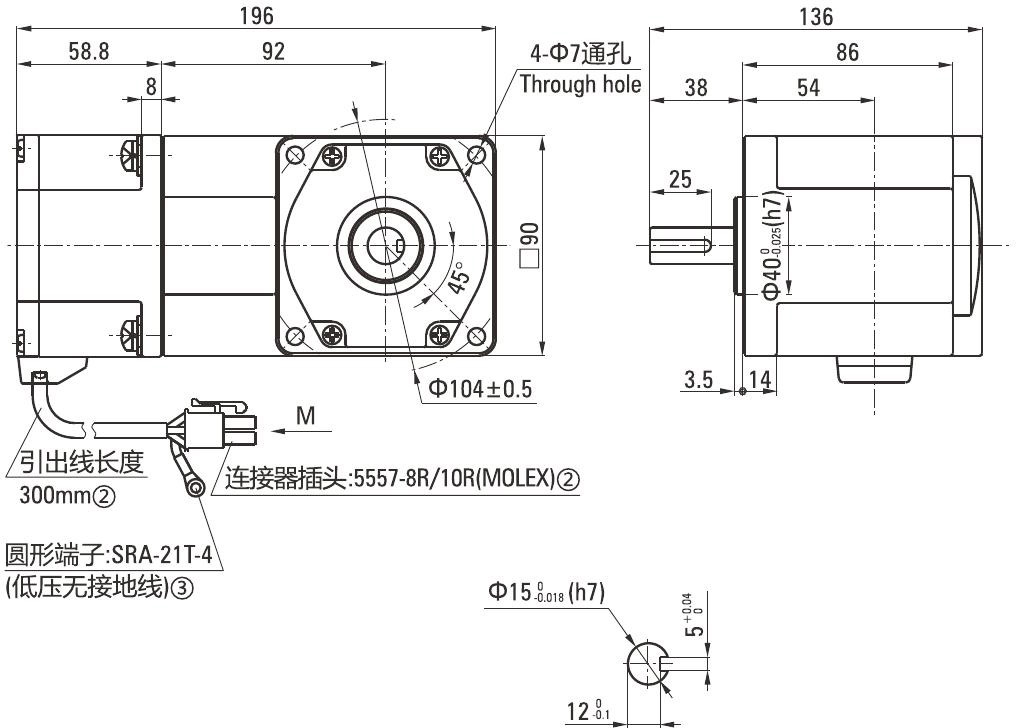

 •Arc Cone Right Angle Speed Reducer Motor



Z5BLD120-◘GU-25S/5GUEIRC ◘一Voltage 24/36/48/110/220 □一Velocity Ratio Value

Z5BLD120-◘GU-25S/5GUORT ◘一Voltage 24/36/48/110/220 □一Velocity Ratio Value

①The sheath length of lead line 300mm ②Connector: 5557-8R/10R (MOLEX) ③Round terminal: SRA-21T-4 (Low ground)



• Z5BLD60-◘GU-25S/5GU□RC/RT Machine Allowable Torque (Unit: N.m)



Model

MotorSpeed/Reduction Ratio

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200-1500RPM

1.81

2.17

2.41

3.02

3.62

4.34

4.35

5.44

6.53

7.83

9.83

10.0

10.0

10.0

10.0

10.0

10.0

10.0

Z5BLD60-◘GU

2000RPM

1.57

1.88

2.09

2.61

3.04

3.76

4.18

5.23

6.27

6.81

9.45

10.0

10.0

10.0

10.0

10.0

10.0

10.0

2500RPM

1.25

1.51

1.67

2.09

2.51

3.01

3.35

4.18

5.02

5.45

7.56

9.08

10.0

10.0

10.0

10.0

10.0

10.0



• Z5BLD90-◘GU_25S/5GU□RC/RT Machine Allowable Torque (Unit: N.m)



Model

MotorSpeed/Reduction Ratio

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200-1500RPM

2.72

3.26

3.62

4.53

5.43

6.52

6.53

8.16

9.79

11.8

14.7

17.7

20.0

20.0

20.0

20.0

20.0

20.0

Z5BLD90-◘GU

2000RPM

2.36

2.83

3.14

3.93

4.71

5.65

6.28

7.85

9.42

10.2

14.2

17.0

20.0

20.0

20.0

20.0

20.0

20.0

2500RPM

1.88

2.24

2.50

3.12

3.74

4.93

4.99

6.24

7.49

9.04

11.3

13.6

17.0

20.0

20.0

20.0

20.0

20.0



• Z5BLD120-◘GU-25S/5GU□RC/RT Machine Allowable Torque (Unit: N.m)



Model

MotorSpeed/Reduction Ratio

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200 〜1500RPM

3.62

4.34

4.35

5.44

6.53

7.83

7.87

9.83

11.8

14.2

19.7

20.0

20.0

20.0

20.0

20.0

20.0

20.0

Z5BLD120-◘GU

2000RPM

3.14

3.76

4.18

5.23

6.27

7.52

8.36

10.5

12.5

13.6

18.9

20.0

20.0

20.0

20.0

20.0

20.0

20.0

2500RPM

2.50

3.01

3.35

4.18

5.02

6.02

6.69

8.37

10.0

10.9

15.1

18.2

20.0

20.0

20.0

20.0

20.0

20.0



Note :The■  (gray) in the table indicates that the rotation direction is consistent with the motor.(The torque under different speed and speed ratio is obtained under the ZD standard.)
