60W 80 Series Of Brushless DC Gear Motors

60W 80 Series Of Brushless DC Gear Motors


We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Basic Characteristics Of Motor

●60W (DC Power Supply When Applied To 24VDC/36VDC/48VDC)



Rated power (Continuous)

W

60 (40W/60W)

Rated speed

r/min

2500

Rated torque

N.m

0.230

Instantaneous maximum torque

N.m

0.345

Rotor moment of inertia

J:X10-4kg.m2

0.082

Speed control range

RPM

High pressure 200-2500RPM (Low pressure 200-3000RPM)

Speed control range

On load

Below ±1%: condition 0~ rated torque, rated speed, rated voltage, room temperature

On voltage

Below±1%: condition rated voltage ±10%, rated speed, rated load, room temperature

On temperature

Below±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed

Power input

Rated voltage

V

Single phase 110V

Single phase 220V

24VDC(Optional 36VDC/48VDC)

Voltage tolerance range

±10%

Frequency

HZ

50/60

/

Frequency tolerance range

±5%

/

Rated input current

A

1.7

1.0

3.7

Instantaneous maximum input current

A

3.3

1.9

5.6

● Z4BLD60-◘A-25S ◘—Voltage 24/36/48/110/220



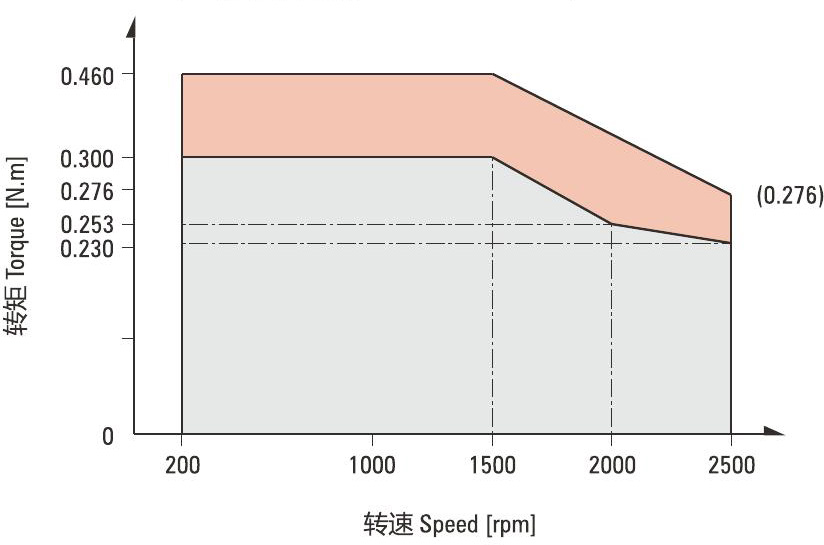

● Z4BLD60-220A-25S Diagram (ZD Standard Drive)

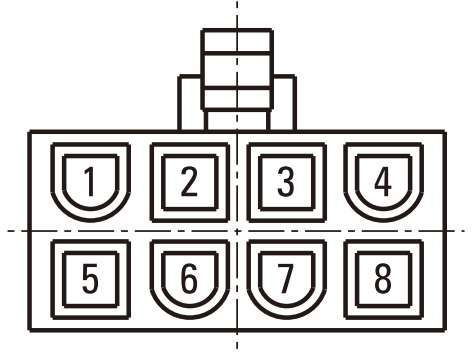

● Low Voltage Wrie Plughole Corresp-onding Signal Explanation

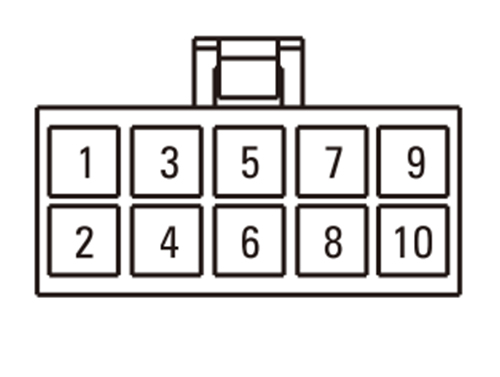

● High Voltage Wrie Plughole Corresp-onding Signal Explanation

plughole

1

2

3

4

signal

U

W

Hv

Hu

plughole

5

6

7

8

signal

V

GND

Hw

Vcc

Corresponding meaning

1

2

3

4

5

6

7

8

9

10

Blue (thick)

Yellow (thin)

Yellow (thick)

Green (thin)

Green (thick)

Blue (thin)



Metal mesh

Red (thin)

Black (thin)

W

Hu

U

Hv

V

Hw





Vcc+5V

GND

● Parallel Shaft Speed Reducer

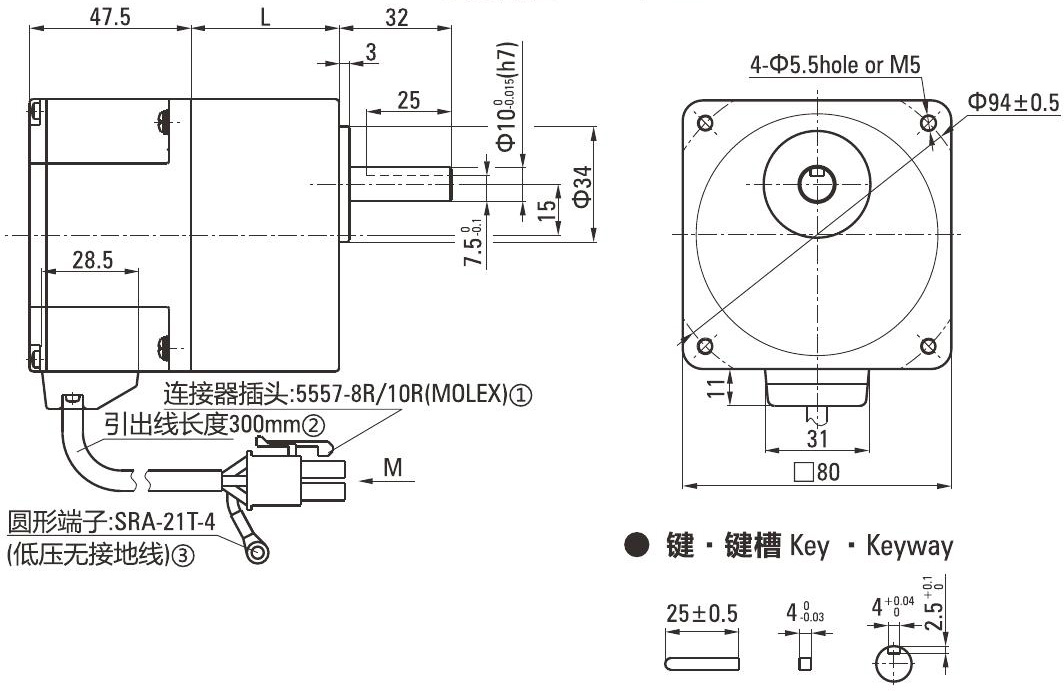

Z4BLD60-◘A-25S ◘—Voltage 24/36/48/110/220 □—Velocity Ratio Value

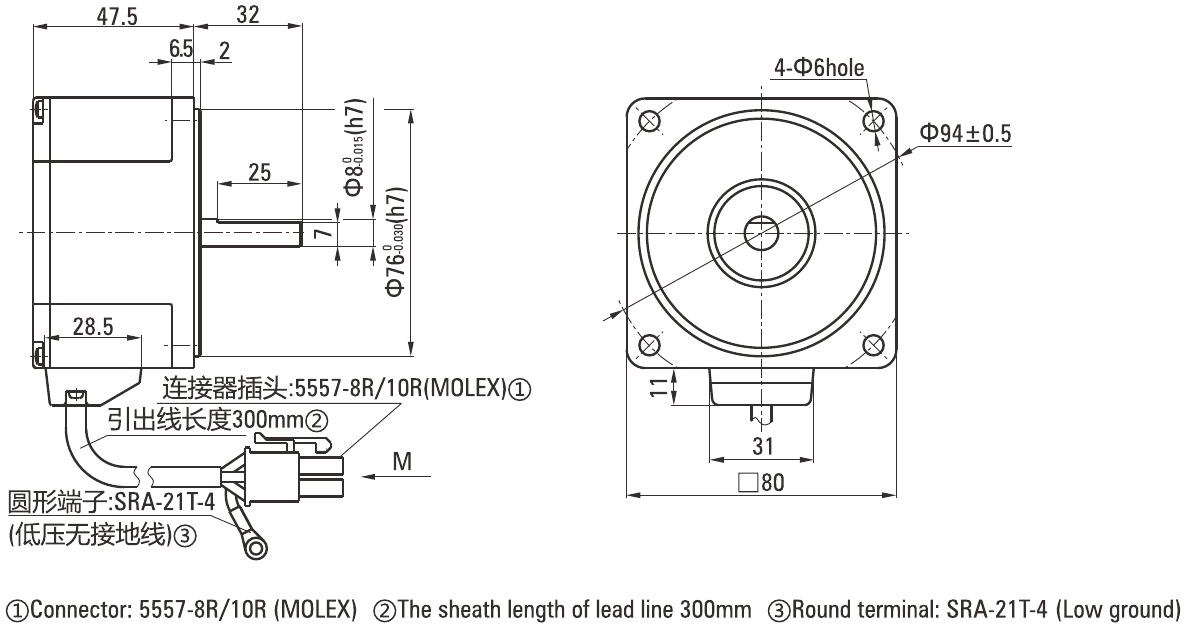

①Connector:5557-8R/10R(MOLEX) ②The sheath length of lead line 300mm ③Round terminal:SRA-21T-4(Low ground)

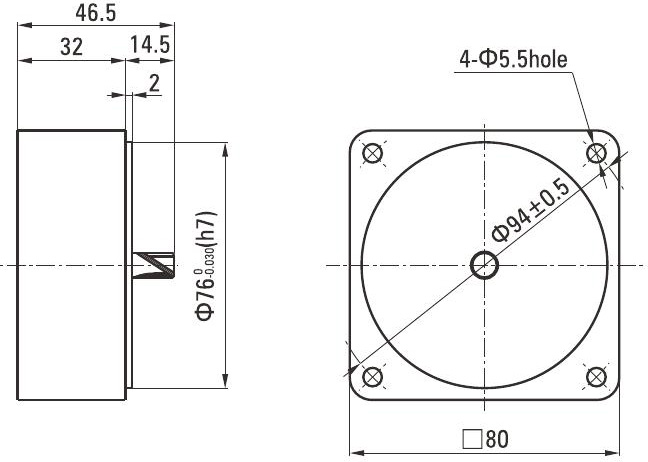

● Decimal Gearhead

4GN□XK

□一10 Velocity Ratio Value, Generally 10



Gearhead Model

Gear Ratio

L Dimension

4GN□K

3-18

32&43.5

20~200

43.5



•Enter the gear ratio in the box (□) within the model name



•Z4BLD40-◘GN-25S/4GN□K Machine Allowable Torque (Unit: N.m)



Model



Motor Speed/Reduction Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200

Z4BLD40-◘GN

200〜1500RPM

0.48

0.58

0.80

0.97

1.21

1.45

1.61

2.01

2.41

2.90

2.90

3.63

4.35

5.22

7.25

7.87

8.00

8.00

8.00

8.00

8.00

8.00

8.00

2000RPM

0.47

0.56

0.78

0.93

1.16

1.40

1.55

1.94

2.33

2.79

3.10

3.48

4.17

5.00

6.95

7.56

8.00

8.00

8.00

8.00

8.00

8.00

8.00

2500RPM

0.37

0.45

0.62

0.74

0.93

1.11

1.24

1.55

1.86

2.23

2.47

2.79

3.35

4.02

5.58

6.05

7.56

8.00

8.00

8.00

8.00

8.00

8.00



•Z4BLD60-◘GN-25S/4GN□K Machine Allowable Torque (Unit: N.m)



Model

Motor Speed/Reduction Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

50

60

75

90

100

120

150

180

200



200〜1500RPM

0.72

0.87

1.21

1.45

1.81

2.17

2.41

3.02

3.62

4.34

4.35

5.44

6.53

7.83

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

Z4BLD60-◘GN

2000RPM

0.70

0.84

1.16

1.39

1.74

2.09

2.32

2.90

3.48

4.18

4.64

5.23

6.27

7.52

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00



2500RPM

0.56

0.67

0.93

1.11

1.39

1.67

1.86

2.32

2.78

3.34

3.71

4.18

5.02

6.02

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00



Note :The (gray)in  the table indicates that the rotation direction is consistent with the motor.(The torque under different speed and speed ratio is obtained under the ZD standard.)

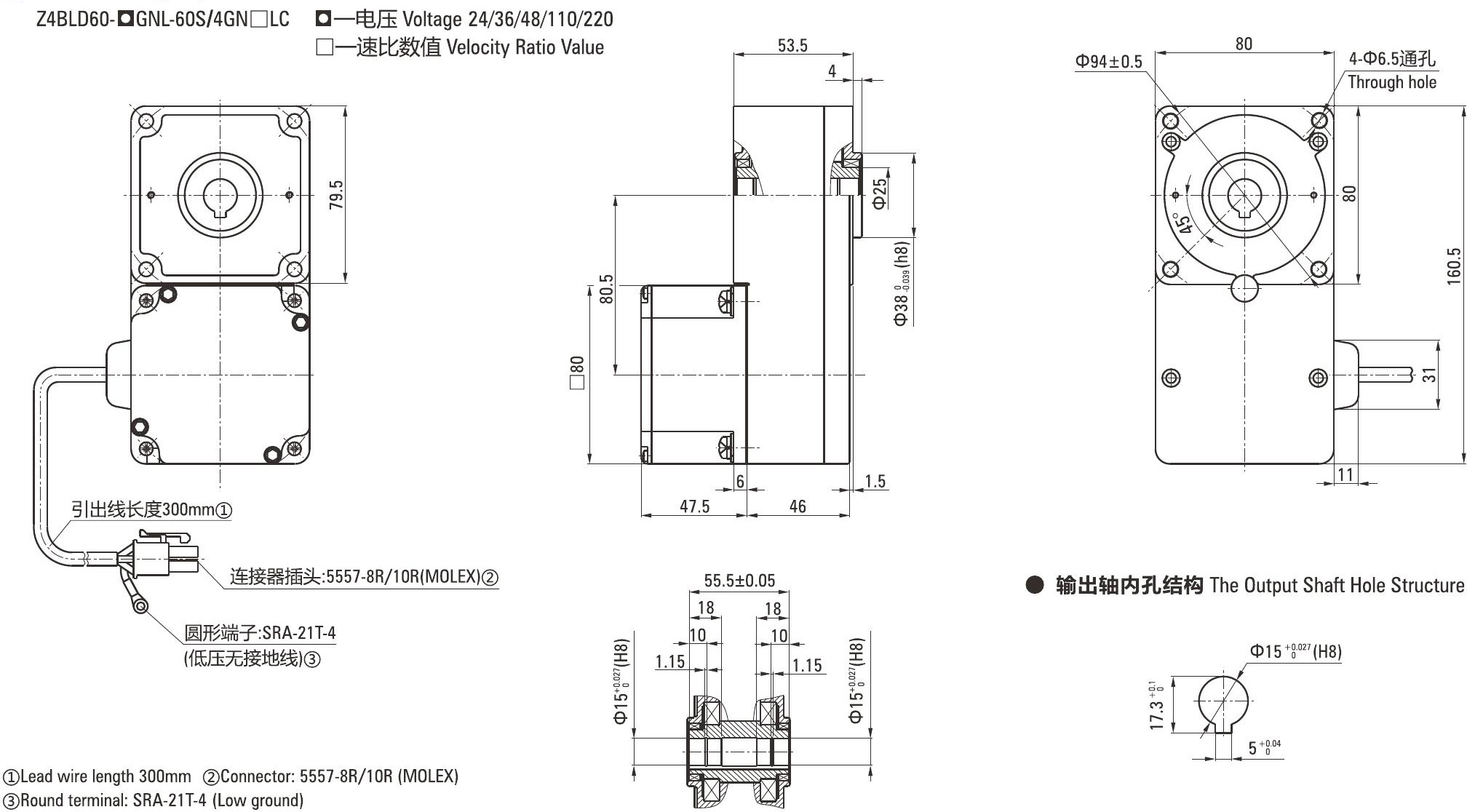

● L Type Speed Reducer





●Z4BLD40-◘GNL-25S/4GND□LC Machine Allowable Torque (Unit: N.m)



Motor Speed/Reduction Ratio

5

10

15

20

30

50

100

200

200~1500RPM

0.73

1.45

2.18

2.90

4.35

7.25

14.5

29.0

2000RPM

0.61

1.23

1.84

2.45

3.68

6.13

12.3

24.5

2500RPM

0.56

1.12

1.67

2.23

3.35

5.58

11.2

22.3



●Z4BLD60-◘GNL-25S/4GN□RT   Machine Allowable Torque (Unit: N.m)



Motor Speed/Reduction Ratio

5

10

15

20

30

50

100

200

200~1500RPM

1.21

2.41

3.62

4.83

6.53

10.9

21.8

39.3

2000RPM

1.02

2.04

3.06

4.08

5.52

9.20

18.4

33.3

2500RPM

0.83

1.67

2.51

3.35

5.02

8.37

16.7

30.3



Note: All gearbox output turn direction in form are opposite as motor turn direction.(The torque under different speed and speed ratio is obtained under the ZD standard.)

Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful 60W 80 Series Of Brushless DC Gear Motors manufacturers and 60W 80 Series Of Brushless DC Gear Motors suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our 60W 80 Series Of Brushless DC Gear Motors and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.

No. of Employees: 1,500 employees

Mission: Zhongda realizes the infinite possibilities in automation applications.

Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.

Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.

Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
