200W 104 Series Of Brushless DC Gear Motors

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Basic Characteristics Of Motor

●200W (DC Power Supply When Applied To 24VDC/36VDC/48VDC)

Rated power (Continuous)		W	200 (200W/400W)
Rated speed		r/min	2500
Rated torque		N.m	0.764
Instantaneous maximum torque		N.m	1.146
Rotor moment of inertia		J:X10-4kg.m2	0.460

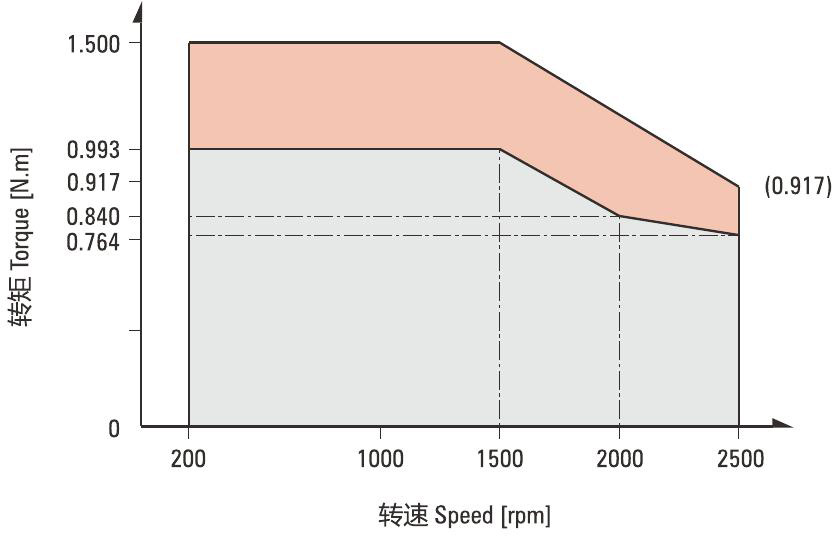

Speed control range		RPM	High pressure 200-2500RPM (Low pressure 200-3000RPM)
Speed control range	On load		Below ± 1 %: condition 0~ rated torque, rated speed, rated voltage, room temperature
	On voltage		Below±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
	On temperature		Below±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed
Power input	Rated voltage	V	Single phase 110V	Single phase 220V	36VDC(Optional 48VDC)
	Voltage tolerance range		±10%
	Frequency	Hz	50/60		/
	Frequency tolerance range		±5%		/
	Rated input current	A	4.7	2.4	7.5
	Instantaneous maximum input current	A	9.0	4.8	11.5

● Z6BLD200-◘A-25S ◘一Voltage 24/36/48/110/220

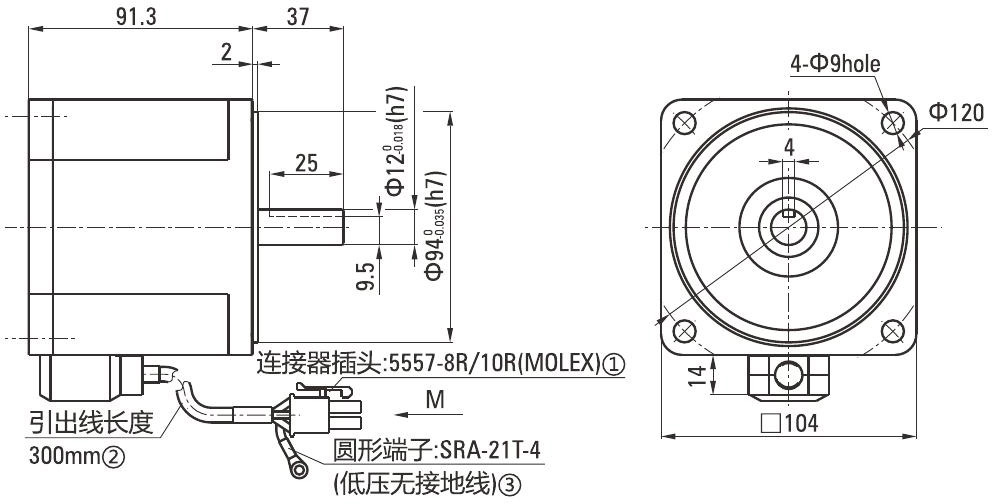

● Z6BLD200-220A-25S Diagram(ZD Standard Drive)

①Connector: 5557-8R/10R (M0LEX) ②Lead wire length 300mm ③Round terminal: SRA-21T-4 (Low ground)

● Low Voltage Wrie Plughole Corresp-onding Signal Explanation

● High Voltage Wrie Plughole Corresp-onding Signal Explanation

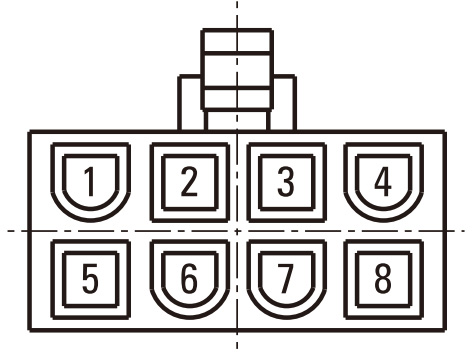

plughole	1	2	3	4
signal	U	W	Hv	Hu
plughole	5	6	7	8
signal	V	GND	Hw	Vcc

Corresponding meaning

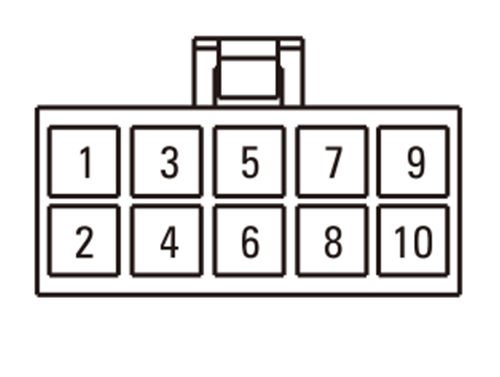

1	2	3	4	5	6	7	8	9	10
Blue (thick)	Yellow (thin)	Yellow (thick)	Green (thin)	Green (thick)	Blue (thin)		Metal mesh	Red (thin)	Black (thin)
W	Hu	U	Hv	V	Hw			Vcc+5V	GND

● Parallel Shaft Speed Reducer

Z6BLD200-◘GU-25S/6GUEIK ◘一Voltage 24/36/48/110/220 □—Velocity Ratio Value

Gearhead Model	Gear Ratio	L Dimension
6GU□K	3-200	72

•Enter the gear ratio in the box (□) within the model name

①Connector: 5557-8R/10R (MOLEX) ②The sheath length of lead line 300mm ③Round terminal: SRA-21T-4 (Low ground)

•Z6BLD200-◘GU-25S/6GU□K Machine Allowable Torque (Unit: N.m)

Model	MotorSpeed/Reduction Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Model	200〜1500RPM	2.41	2.90	4.02	4.83	6.03	7.24	9.06	10.9	13.1	16.4	19.7	23.6	32.8	39.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD200-◘GU	2000RPM	2.04	2.45	3.40	4.08	5.11	6.13	7.67	9.20	11.0	13.9	16.6	20.0	27.7	33.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD200-◘GU	2500RPM	1.86	2.23	3.09	3.71	4.64	5.57	6.97	8.37	10.0	12.6	15.1	18.2	25.2	30.3	37.8	40.0	40.0	40.0	40.0	40.0	40.0

•Z6BLD400- ◘GU-25S/6GU□K Machine Allowable Torque (Unit: N.m)

Model	MotorSpeed/Reduction Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Model	200~1500RPM	4.83	5.79	8.04	9.65	12.1	14.5	14.5	18.1	21.8	26.1	26.2	32.8	39.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD400-◘GU	2000RPM	4.08	4.90	6.81	9.17	10.2	12.3	12.3	15.3	18.4	22.1	22.2	27.7	33.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD400-◘GU	2500RPM	3.71	4.46	6.19	7.42	9.28	11.1	11.2	13.9	16.7	20.1	20.2	25.2	30.3	36.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0

Note :The ■ (gray) in the table indicates that the rotation direction is consistent with the motor.(The torque under different speed and speed ratio is obtained under the ZD standard.)

•L Type Speed Reducer

①Connector: 5557-8R/10R (MOLEX ) ②Lead wire length 300mm ③Round terminal: SRA-21T-4 (Low ground)

•Z6BLD200-◘GUL-25S/6GU□LC Machine Allowable Torque (Unit: N.m)

MotorSpeed/Reduction Ratio	5	10	15	20	30	50	100	200
200~1500RPM	4.02	8.04	12.1	16.1	21.8	36.3	72.5	120
2000RPM	3.40	6.81	10.2	13.6	18.4	30.7	61.3	110
2500RPM	2.79	5.58	8.37	11.2	16.7	27.9	55.8	100

•Z6BLD400-◘GUL-25S/6GU□LC Machine Allowable Torque (Unit: N.m)

MotorSpeed/Reduction Ratio	5	10	15	20	30	50	100	200
200~1500RPM	7.25	14.5	21.8	29.0	43.5	72.5	120	120
2000RPM	6.13	12.3	18.4	24.5	36.8	61.3	120	120
2500RPM	5.58	11.2	16.7	22.3	33.5	55.8	112	120

Note :All gearbox output turn direction in form are opposite as motor turn direction.(The torque under different speed and speed ratio is obtained under the ZD standard.)

•Arc Cone Right Angle Speed Reducer Motor

Z6BLD200-◘GU-25S/6GU□RC◘一Voltage 24/36/48/110/220 □一Velocity Ratio Value

Z6BLD200-◘GU-25S/6GU□RT ◘一Voltage 24/36/48/110/220 □一Velocity Ratio Value

①Connector: 5557-8R/10R (MOLEX ) ②The sheath length of lead line 300mm ③Round terminal: SRA-21T-4 (Low ground)

•Z6BLD200-◘GU-25S/6GU□RC/RT Machine Allowable Torque (Unit: N.m)

Model	MotorSpeed/Reduction Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Model	200~1500RPM	6.03	7.24	9.06	10.9	13.1	16.4	19.7	23.6	32.8	39.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD200-◘GU	2000RPM	5.23	6.27	8.71	10.5	12.6	17.4	20.9	25.1	31.5	37.8	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD200-◘GU	2500RPM	4.18	5.02	6.97	8.37	10.0	13.9	16.7	20.1	25.2	30.3	37.8	40.0	40.0	40.0	40.0	40.0	40.0

•Z6BLD400-◘GU-25S/6GU□RC/RT Machine Allowable Torque (Unit: N.m)

Model	MotorSpeed/Reduction Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Model	200~1500RPM	12.1	14.5	14.5	18.1	21.8	26.1	26.2	32.8	39.3	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD400-◘GU	2000RPM	10.4	12.5	17.4	20.9	25.0	34.8	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
Z6BLD400-◘GU	2500RPM	8.37	10.0	13.9	16.7	20.1	27.8	33.5	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0

Note :The ■ (gray) in the table indicates that the rotation direction is consistent with the motor.(The torque under different speed and speed ratio is obtained under the ZD standard.)

Related Products

25W-80mm DC Spiral Bevel Right Angle Brush Gear Motor

25W-80mm DC Worm Gear Right Angle Brush Gear Motor

40W-80mm DC Spiral Bevel Right Angle Brush Gear Motor

40W-80mm DC Worm Gear Right Angle Brush Gear Motor

40W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

40W-90mm DC Worm Gear Right Angle Brush Gear Motor

60W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

60W-90mm DC Worm Gear Right Angle Brush Gear Motor

90W-90mm DC Spiral Bevel Right Angle Brush Gear Motor

90W-90mm DC Worm Gear Right Angle Brush Gear Motor

Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful 200W 104 Series Of Brushless DC Gear Motors manufacturers and 200W 104 Series Of Brushless DC Gear Motors suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our 200W 104 Series Of Brushless DC Gear Motors and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.

No. of Employees: 1,500 employees

Mission: Zhongda realizes the infinite possibilities in automation applications.

Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.

Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.

Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
