Motor Type |
Voltage |
Rated Power |
No-load Current |
No-load Speed |
Rated Current |
Rated Speed |
Rated Torque |
Motor Life |
|
Z42DPN2425-30S |
24 |
25 |
0.6 |
3500 |
1.6 |
3000 |
0.080 |
600 |
We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.
|
Motor Type |
Gearbox Model |
Gear Ratio |

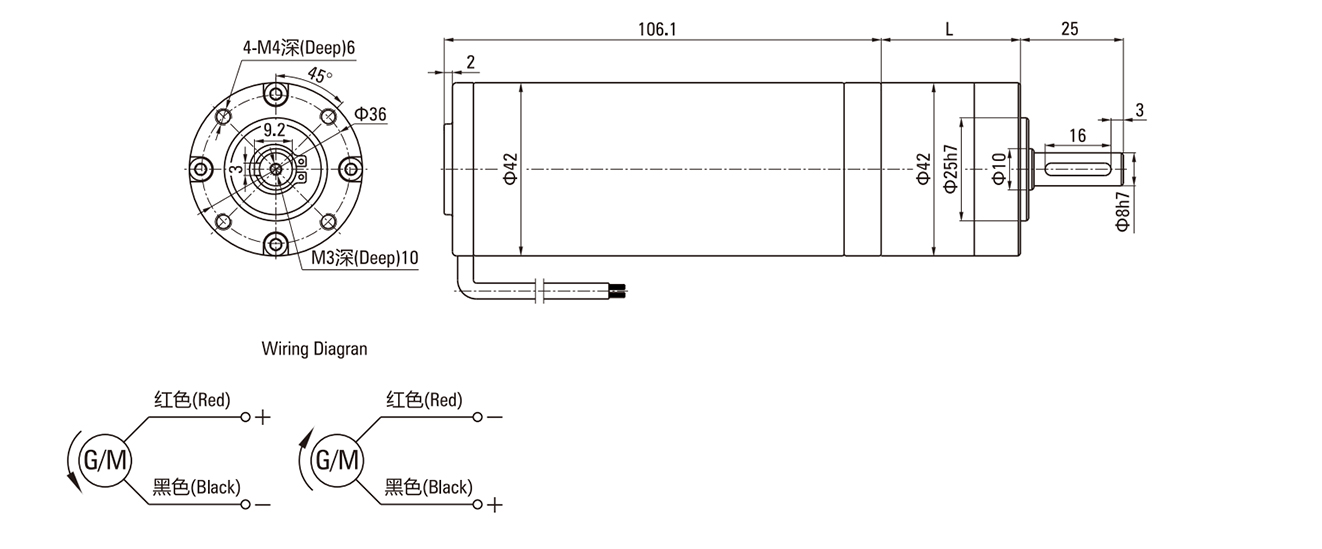

L Dimension (mm) |
|
Z42DPN |
42PN□ |
3.65~8.63 |
33.8 |
|
13.53~58.22 |
47.4 |
||
|
67.08~392.98 |
61.0 |
|
Motor Type |
Voltage |
Rated Power |
No-load Current |
No-load Speed |
Rated Current |
Rated Speed |
Rated Torque |
Motor Life |
|
Z42DPN2425-30S |
24 |
25 |
0.6 |
3500 |
1.6 |
3000 |
0.080 |
600 |
|
Ratio |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
Output shaft speed r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
89 |
67 |
52 |
45 |
37 |
|
Allowable torque N.m |
0.26 |
0.39 |
0.47 |
0.62 |
0.88 |
1.23 |
1.60 |
1.82 |
2.20 |
2.90 |
3.77 |
2.75 |
4.74 |
|
Reduction stage |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
Ratio |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|
|
|
|
Output shaft speed r/min |
33 |
29 |
25 |
24 |
21 |
18 |
16 |
13 |
9.9 |
7.6 |
|
|
|
|
Allowable torque N.m |
5.34 |
6.01 |
6.95 |
7.46 |
8.49 |
9.67 |
11.19 |
13.53 |
15.00 |
15.00 |
|
|
|
|
Reduction stage |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
|
