① |
Comanpy |
ZD MOTOR | |||||
|
② |
Model Dimension |
||||||
|
Code |
2 |
3 |
4 |
5 |
55 |
6 |
|
|
Mounting Flange (mm) |
60x60 |
70x70 |
80x80 |
90x90 |
90x90 |
104x104 |
|
|
Case Diameter (mm) |
60 |
60 |
80 |
80 |
90 |
90 |
|
|

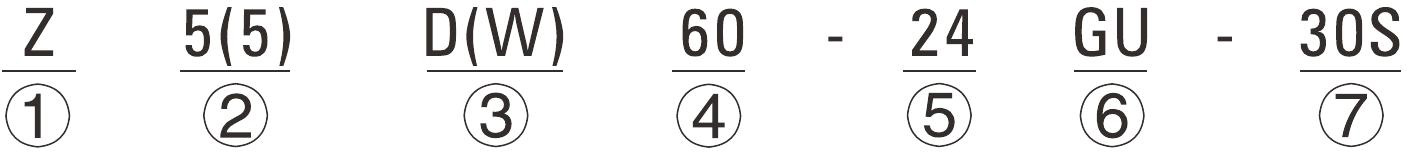

③ |
Motor Type |
D:DC MOTOR DW:For 60、70 series motor,DW means external brush motor |
|||||
|
④ |
Output Power |
e.g. 60:60W |
|||||
|
⑤ |
Voltage |
e.g. 24:24V |
|||||
|
⑥ |
Shape of Motor Shaft |
GN:General Helical Gear A1 :Milling Keyway GU:Reinforced Helical Gear A:Flat Type |
|||||
|
⑦ |
Speed |
30S:3000RPM |
|||||
Note:we use M to symbolise the brake,such as Z5(5)D 60-24 GU-30S-M, the brake voltage is the same as the rated voltage of the motor,Type of motor can be interpreted as a case diameter of 90mm,GU type,rated voltage 24VDC,rated power 60W,rated speed of 3000RPM,with brake-24VDC.
|

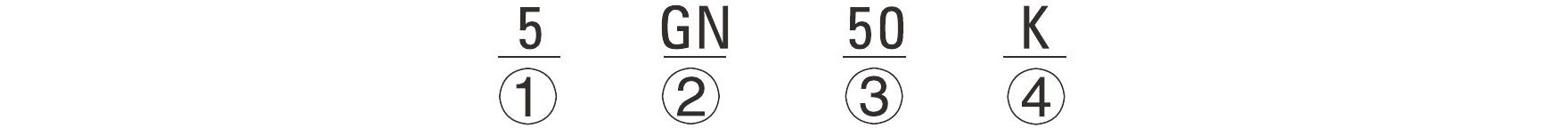

① |
Model Dimension |
2:60mm 3:70mm 4:80mm 5:90mm 6:104mm |
|
② |
Gear Type |
GN:General Helical Gear GU:Reinforced Helical Gear |
|
③ |
Gear Ratio |
Gear Ratio of 1:50 10X denotes the decimal gearhead of ratio 1:10 |
|
④ |
Bearing Type |
K: Bearing(Make KB for type GU square case) |
Note:The code of the non-standard split type is to add "V" before the model number of the motor or reducer (Please specify the detailed parameter requirement in the purchase order)
|

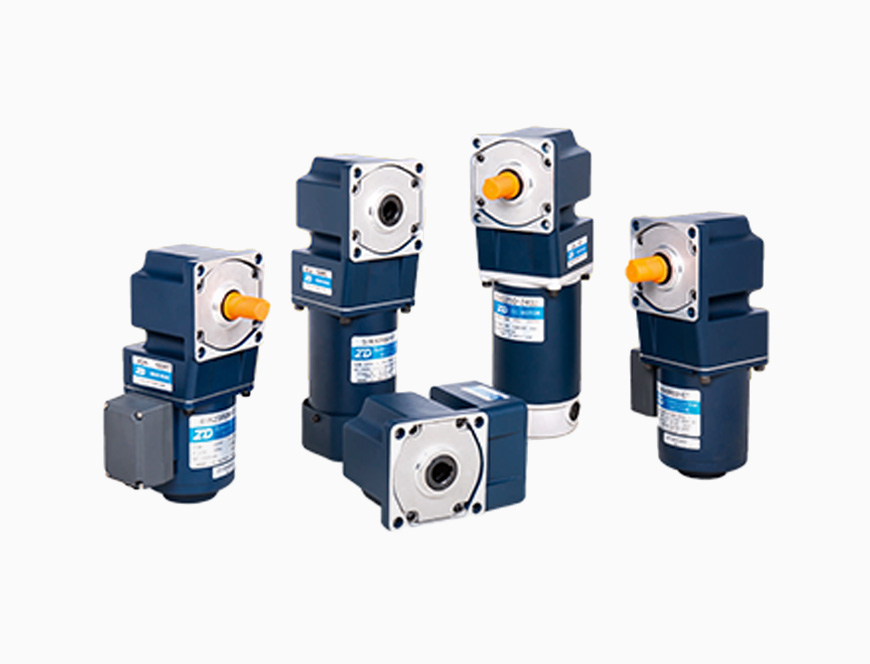

① |
|
ZD MOTOR | |||
|
② |
Model & Specification |
||||
|
Code |
4 |
5 |
55 |
6 |
|
|
Mounting Flange (mm) |
□80 |
□90 |
□90 |
□100 |
|
|
Case Diameter (mm) |
80 |
80 |
90 |
90 |
|
|
③ |
Motor Type |
D:DC MOTOR |
|||
|
④ |
Output Power |
e.g. 60:60W |
|||
|
⑤ |
Voltage |
e.g. 24:24V |
|||
|
⑥ |
Motor Shaft Shape |
GN: GN Pinion Shaft; GU: GU enhanced pinion shaft; A1: With Key way; A: D cut type |
|||
|
⑦ |
Motor Speed |
30S:3000RPM |
|||
|
① |
Frame Size |
4:80mm 5:90mm 6:104mm |
|
② |
Gear Type |
GN: GN General Type GU: Enhanced Type |
|
③ |
Reduction Ratio |
e.g. 1:50 |
|
④ |
Type of output shaft RH: Hollow worm shaft RA: Worm output shaft RC: Spiral bevel hollow shaft RT: Spiral bevel output shaft |
|
|
Items |
Specifications |
|
Insulation Resistance |
In the circumstance of normal ambient temperature and humidity, the resistance can be up to 20MΩ or more when DC 500V megger is applied between the windings and the frame after rated motor operations. |
|
Dielectric Withstanding |
In the circumstance of normal ambient temperature and humidity, there will be no problem to withstand 1.5kV at 50/60hz between the windings and the frame for 1 minute after rated motor operation. |
|
Temperature Rise |
The temperature rise should be lower than 80℃ measured by resistance method when the motor is working. |
|
Insulation Class |
Class B (130℃) |
|
Using Temperature |
-10℃~+40℃ (Non freezing) |
|
Using Temperature |
<85% (Place without dew) |
Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful How to Read DC Gear Motor manufacturers and How to Read DC Gear Motor suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our How to Read DC Gear Motor and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.
No. of Employees: 1,500 employees
Mission: Zhongda realizes the infinite possibilities in automation applications.
Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.
Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.
Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
