Features

High reliability of SMD( surface mount device).

Easy connection method and easy to use.

Built-in run capacitor.

Large range of continuously variable transmission could be realized when work together with a speed controller motor;

Fault Indication & Protection:Show the fault information after the protection for the fault indication, such as: under voltage, over voltage, over current, over load, locked rotor, short circuit, phase shortage, over temperature etc.

User Instructions

Do not use in explosive environments, flammable gas, corrosive environments and anywhere easy to get wet or around combustibles

Avoid continuous vibration or over-impact.

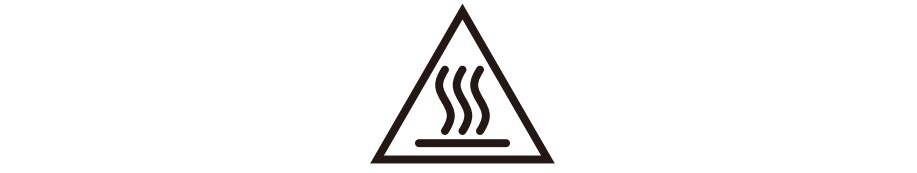

Under normal operation of the motor, sometimes the surface temperature of the motor case will exceed 70℃, therefore, please paste a warning notice (refer to the drawing below) in case people may touch the motor!

No continuously long-time running of the motor under the condition low speed and overload.

Do earthing.

Installation, connection and inspection should be done by professional engineers.

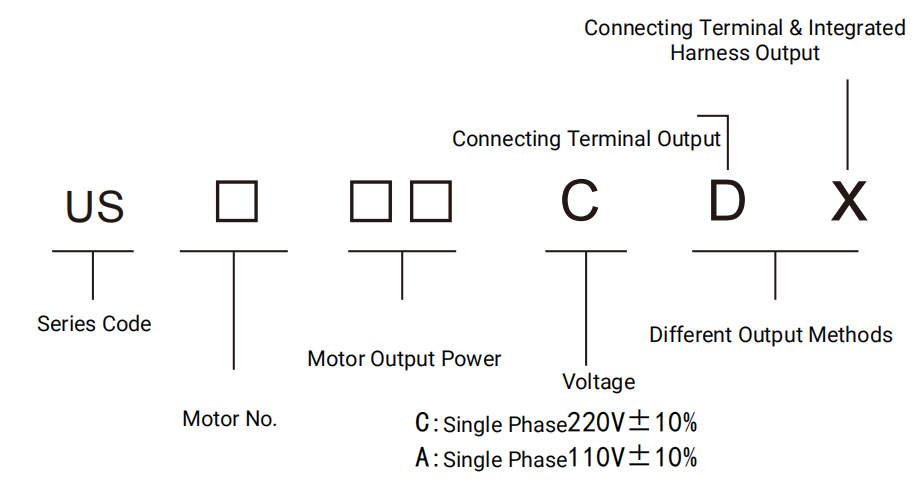

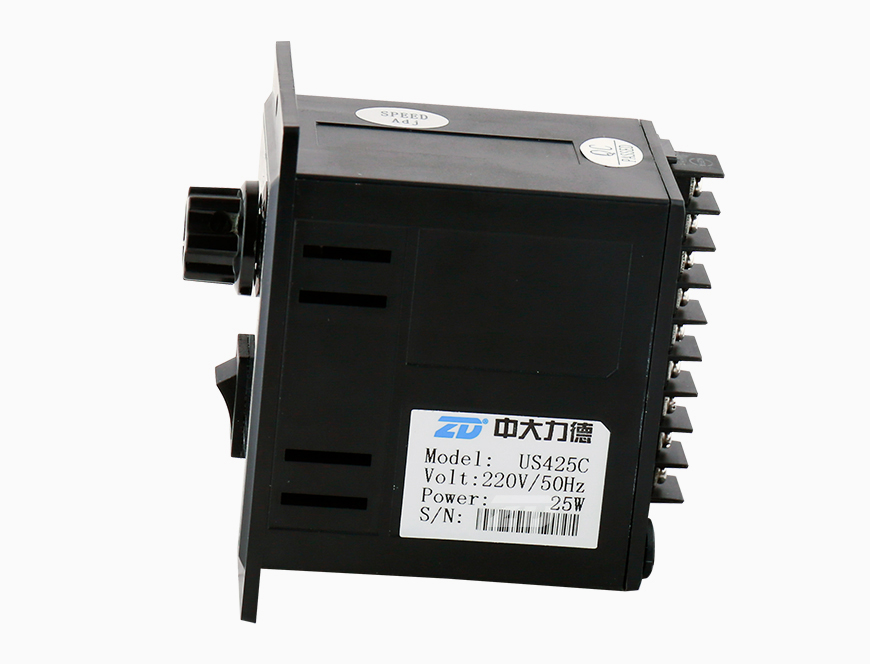

Model No./Specifications

Model

Single Phase 220V

US206C

US315C

US425C

US540C

US560C

US590C

US5120C

US6120C

US6140C

US6200C

Output Method

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

Single Phase 110V

US206A

US315A

US425A

US540A

US560A

US590A

US5120A

US6120A

US6140A

US6200A

Output Method

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

◻D

◻x

Motor Power

6W

15W

25W

40W

60W

90W

120W

120W

140W

200W

Motor Type

Speed Control Motor

Installation Method

Panel Type

Speed Control Method

Panel Potentiometer

Run Capacitor

Built-in

Speed Control Range

50Hz:90-1350r/min; 60Hz:90-1550r/min

Power Supply Frequency

50Hz - 60Hz

Work Environment

-10℃ - +45℃( No Froze),85%(No condensation)

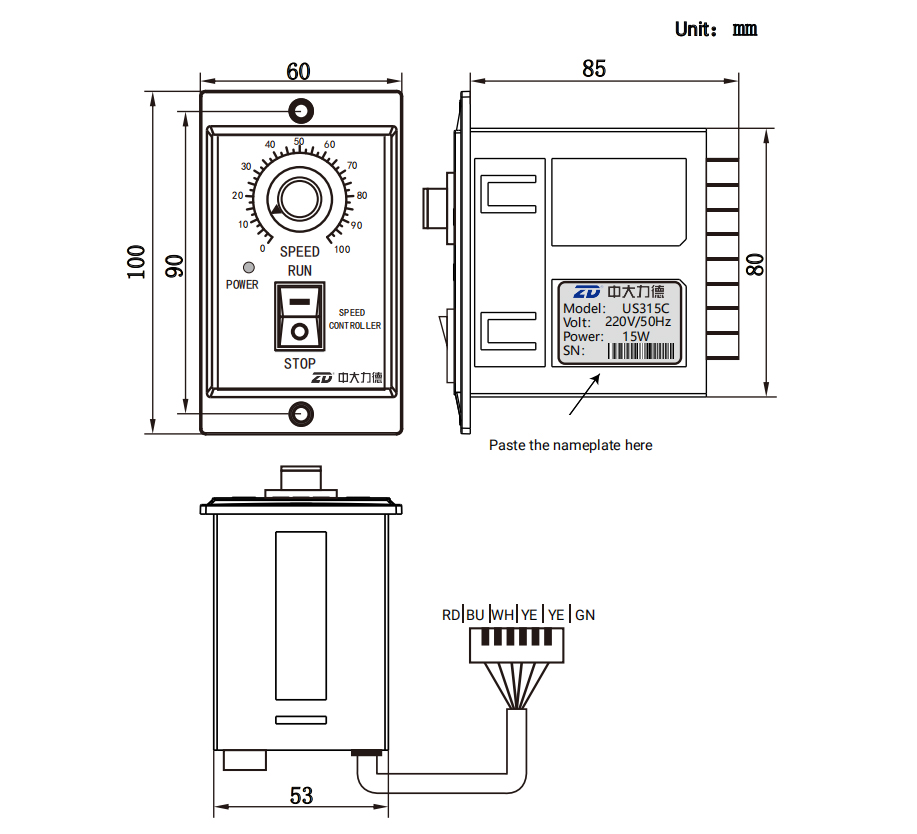

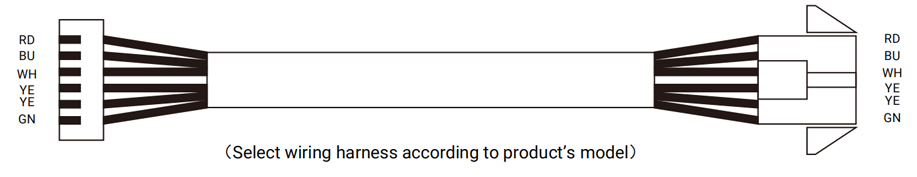

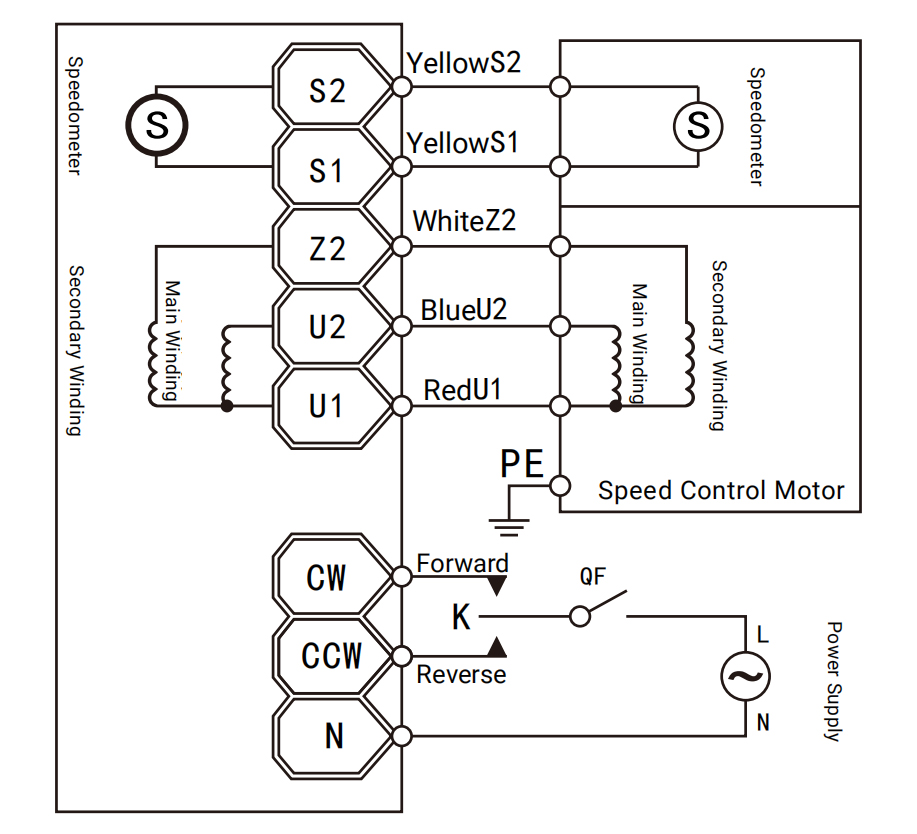

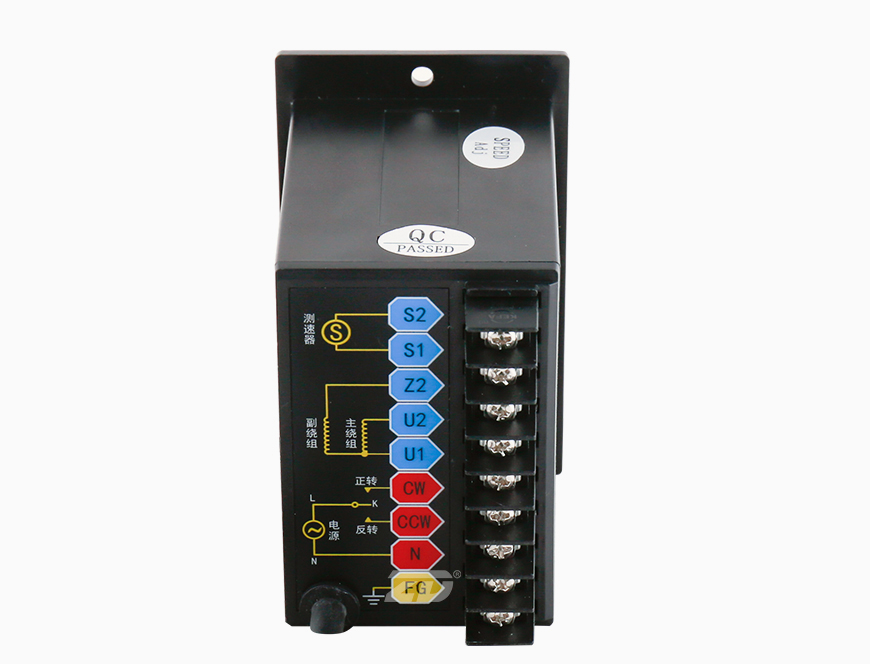

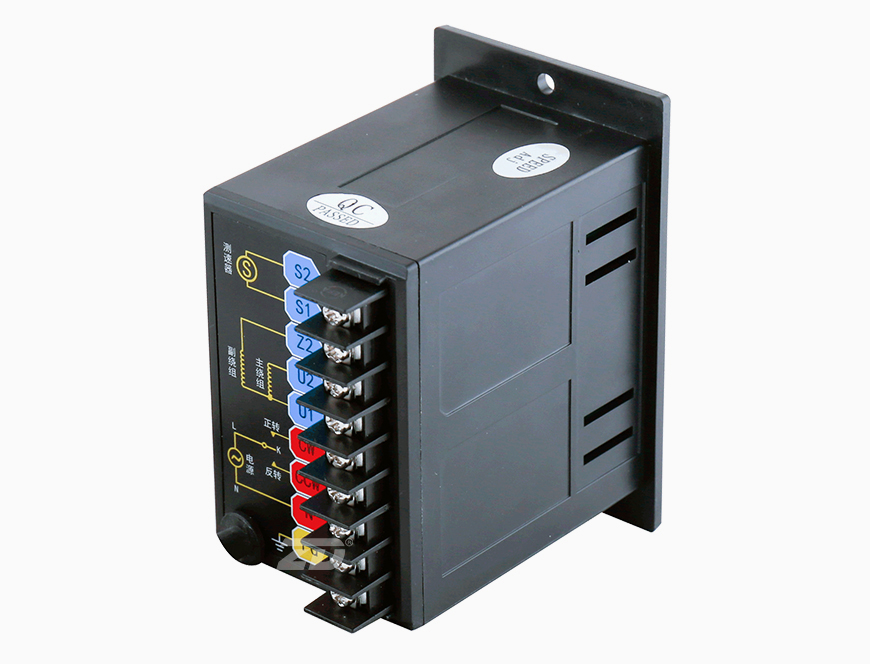

The voltage of the power supply should be the same with that of a speed controller. QF is a circuit breaker, it can protect the speed controller and the

motor in case of short-circuited. K is a switch of forwarding and reversing, its current should be above 10A.


If forwarding of the motor, connect “L” and “CW”;

If reversing of the motor, connect “L” and “CCW”;

If forwarding and reversing, then connect "L","CW","CCW" with switch “K”;

Note: the contact rating of switch “K” shall not less than 10A.

The power of a speed control motor should be the same with that of a speed controller. Pay attention to the power on model No. of the speed controller and make sure that it is same with the power of a motor.

Voltage of Power Supply

Motor Power

QF Current

220V

6-90W

1A

220V

120-200W

2A

110V

6-90W

3A

110V

120-200W

4A
