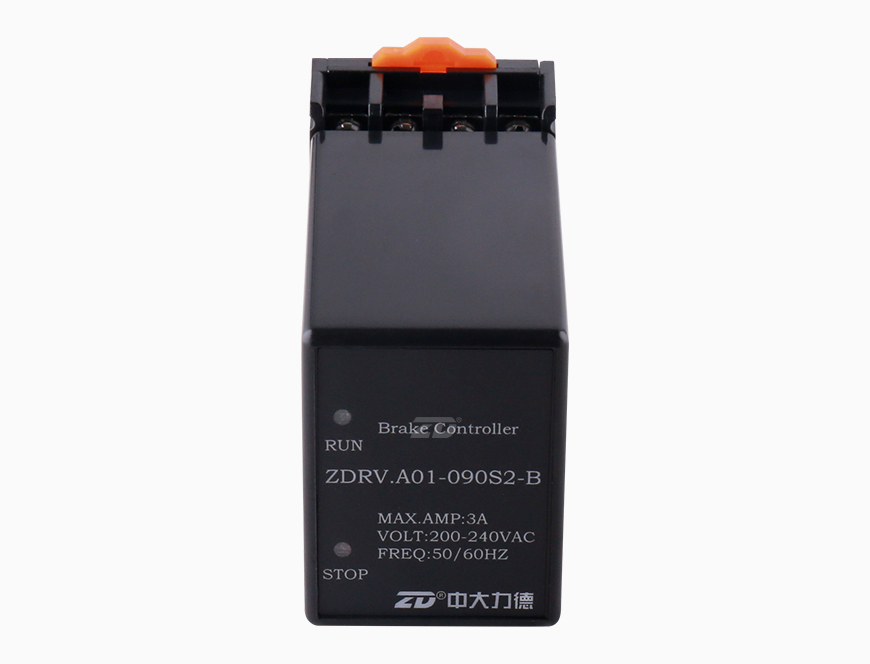

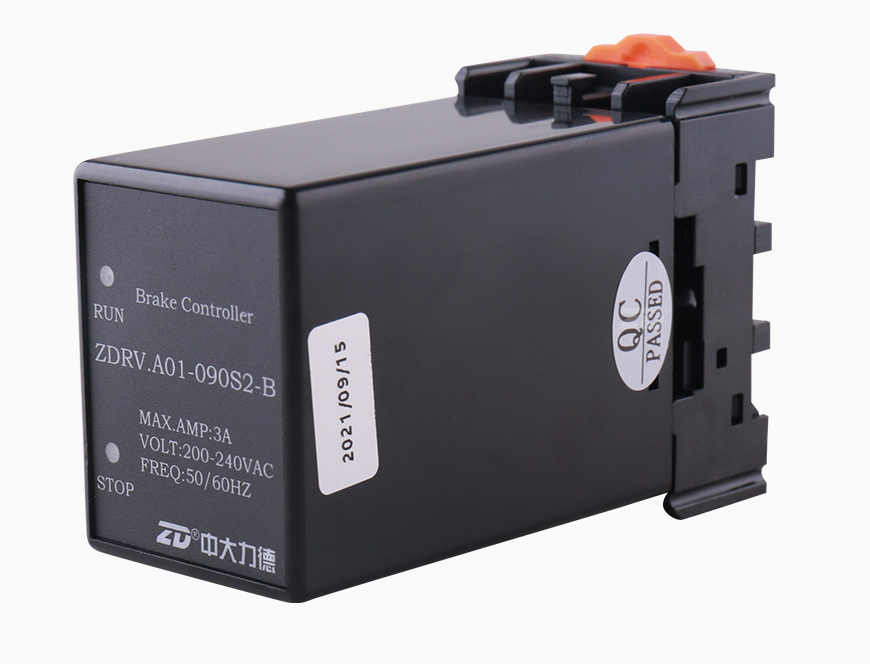

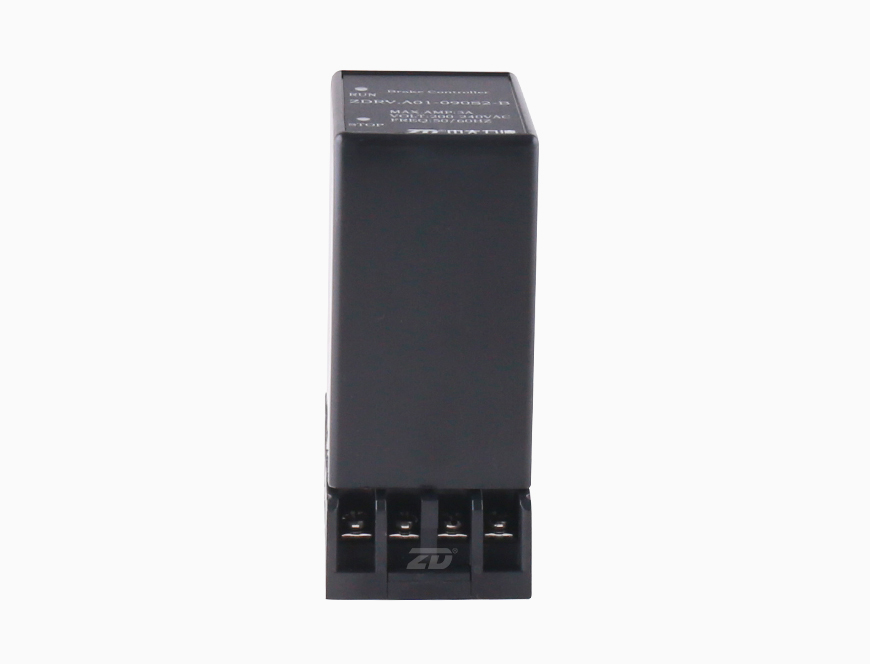

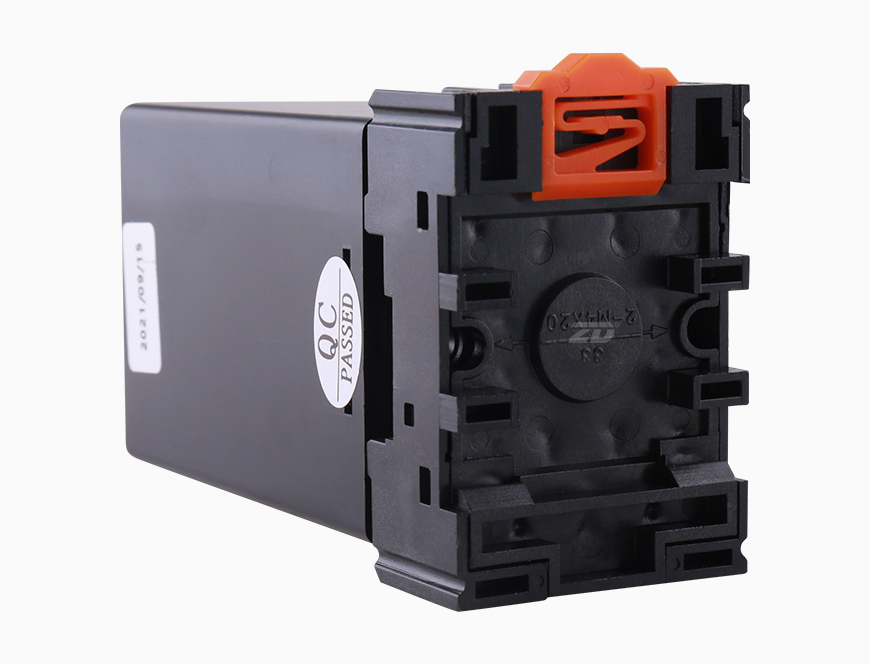

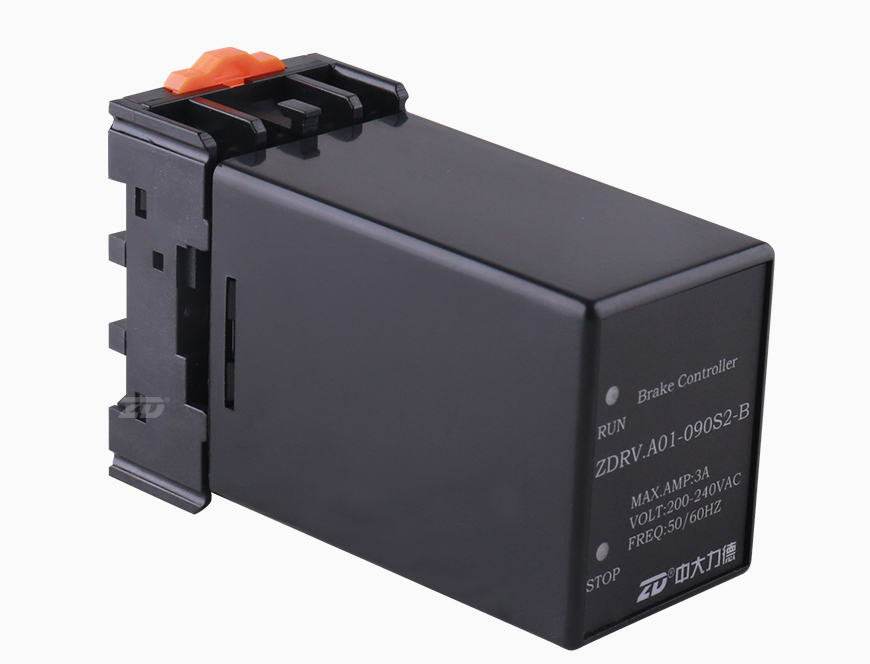

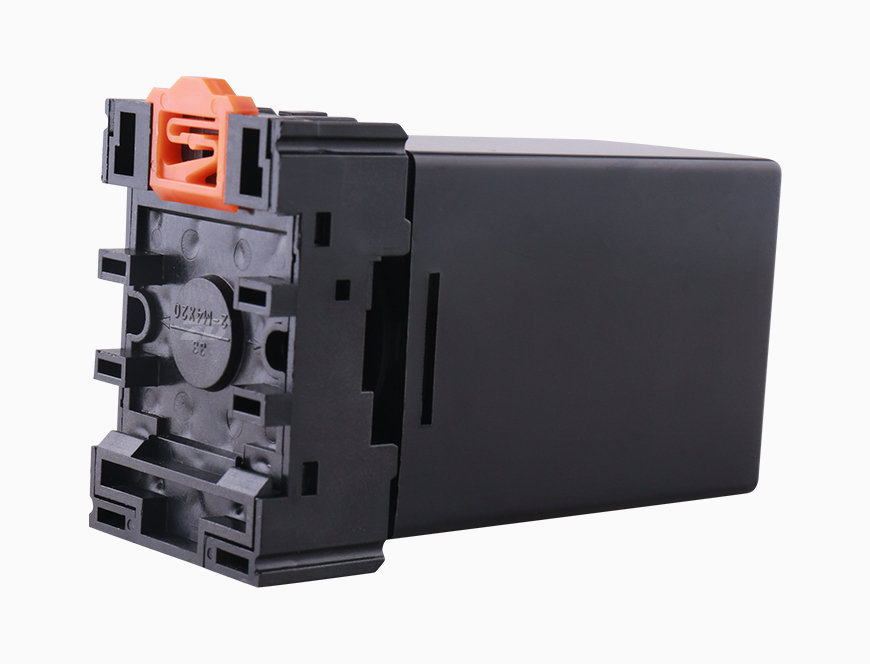

ZDRV.A01-090S2-B Digital AC Speed Controller for Brake Motor Suppliers

Home / Products / Motor Driver & Controller / AC Speed Controller / ZDRV.A01-090S2-B Digital AC Speed Controller for Brake Motor

Model Voltage(V) Quantity of Phase Brake Retention Accuracy of Brake  Motor Power(W) Work Environment Temp. Resistor
ZDRV.A01-090S2-B 220 1ΦSingle Phase 0.5S 200° 6-90 -10°C~+40°C 1*50W/500
1*25W/200
Use Frequency and Limitation

It could lead to temperature rising for frequently run-stop of the motor although the driver has the function of inching motion; please stop thedevice once the temperature of motor surface exceeded 90℃.

Brake Principle

The principle of electric braking circuit: after the half-wave rectification, the pulsed direct current goes into a motor and generates a directional magnetic field which could stop the motor instantly. The reverse braking current which is generated by a controller will go into a motor in short time and will have not have any further influence later. The time (about 0.5 S) of braking current in a motor will be controlled by the timer circuit in a controller. Thus, it can extend the usage life of a motor because its brake function is realized by its electrical characteristics which will nothave the problem of parts wearing.

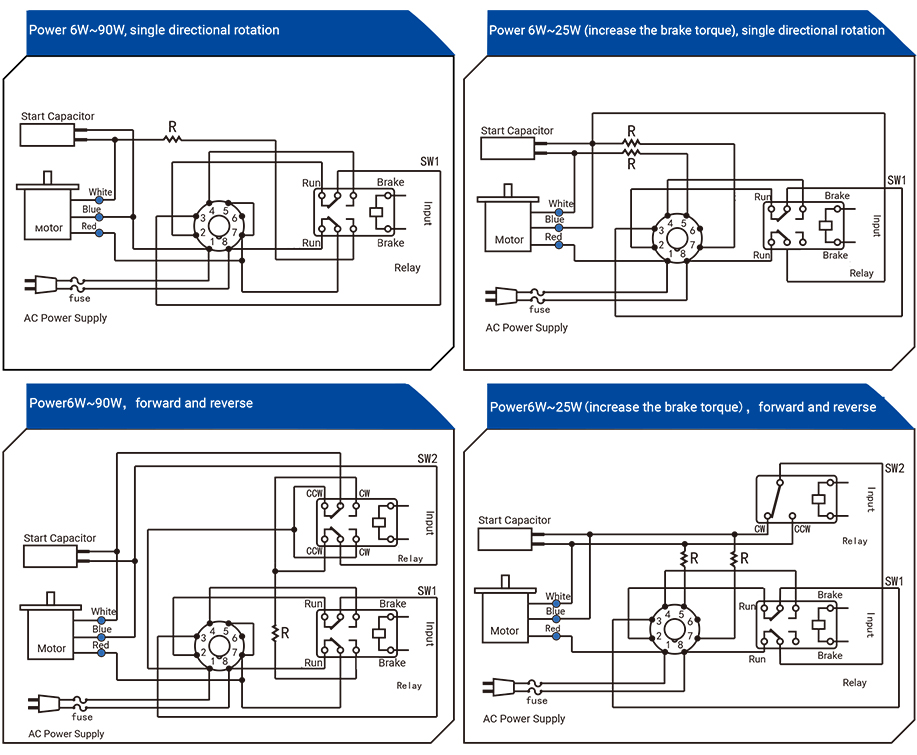

How to Choose the External Resistor

Use 50W/50Ω resistor (Model:DDR50W/50ΩJ)for power 6W~90W, in case of frequent braking, use 80W/50Ω external resistor (Model:DDR80W/50ΩJ) due to high temperature of the resistor.

Use 25W/20Ω resistor (Model:DDR25W/20ΩJ)for power 6W~25W, in case of frequent braking, use 30W/20Ω external resistor (Model:DDR30W/20ΩJ) due to high temperature of the resistor.
