DM/DMX138 AC Motor Roller

We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.

Send Inquiry Contact Us

■ Product Information

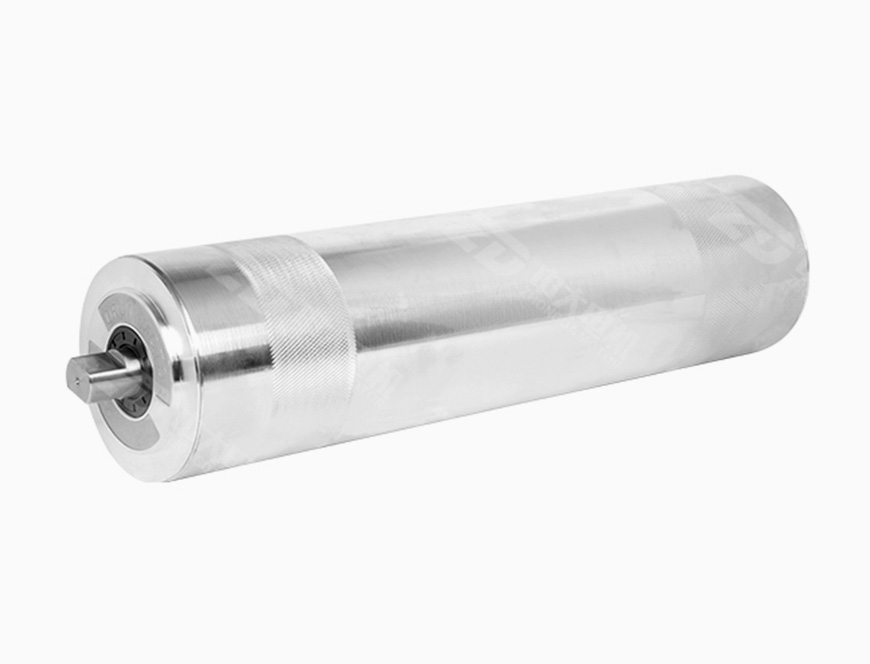

DM/DMX138 motor roller, which is famous for its high eficiency, high power and stable operation, is a very wide range of power and speed.

●High load cycling conveyer
●Food processing industry
●Pharmaceutical industry
●Meat processing industry
●Belt conveyor
●Airport baggage handling system
●Security machine
●Postal sorting
●Logistics application
●Dry, wet and need to develop the application environment

■ DM/DMX138 Characteristics Of Motor Roller

●Roller Shell

•Material of standard roller shell is mild steel, zinc plated, with ECO mark

•Food garde shell is 304 stainless steel

•Standard cylinder surface processing with non slip roller

●Gear Drive

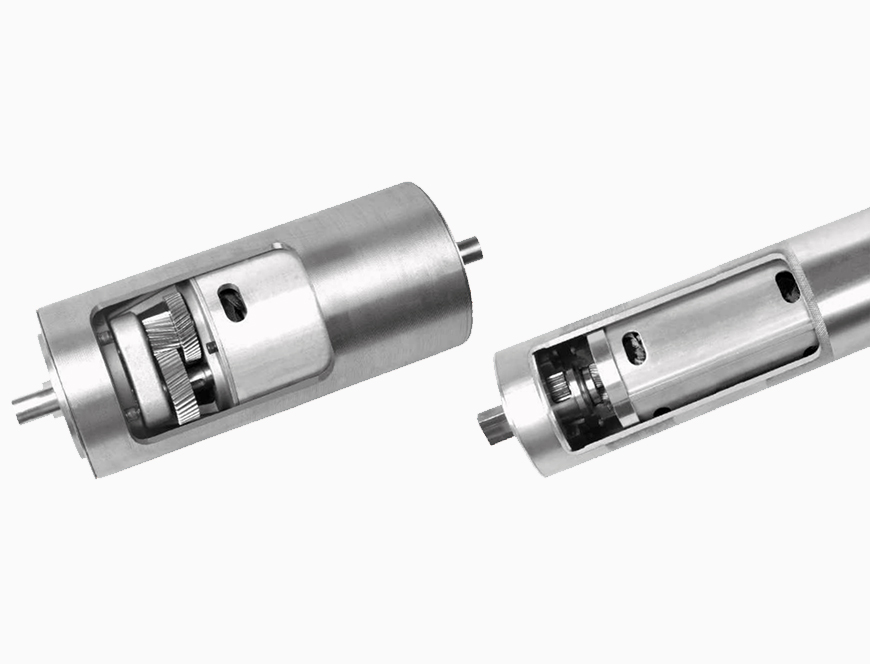

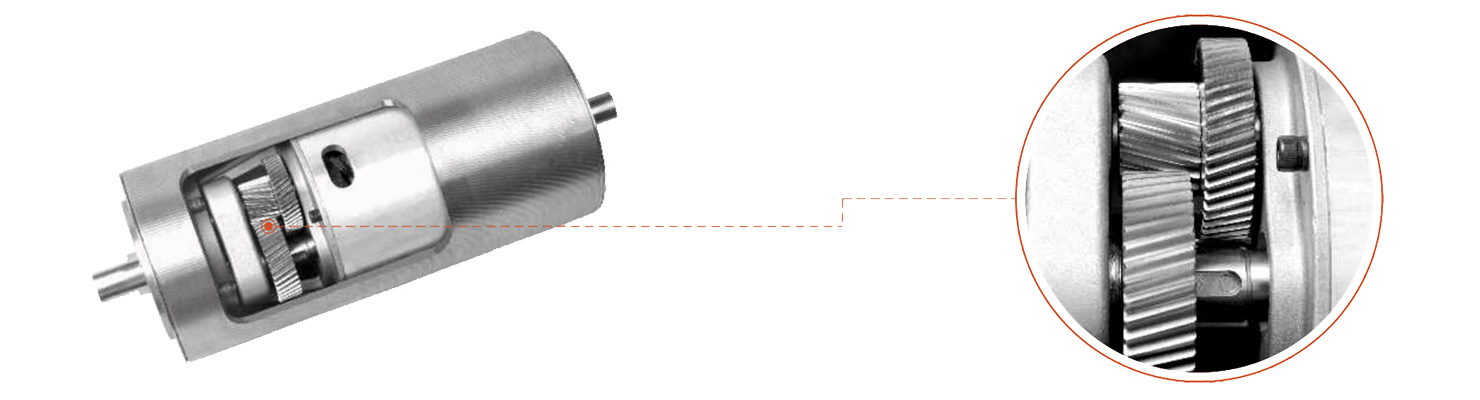

•High alloy steel grinding gear, to ensure the transmission of ultra low noise, aluminum gear box

•Heavy load electric roller adopts planetary gear transmission, according to heavy load design, high torque transmission

●Motor

•When 50Hz or 60Hz is used, it can be applied to all kinds of universal voltage

•Motor insulation class F

•All motor additional overheat protector

•Oil immersed motor cooling

•Cable outlet type, cable length of 1.2M

●Seal Level

•Double seal design for shaft end

•Motor roller sealing protection level is IP66/IP67

●Oiling

•Motor roller factory before has according to the standard oil

•Every 5000 hours to run oil change time

●Other

•Horizontal installation

•Can be equipped with electromagnetic brake, but the shortest length of the cylinder will be extended accordingly

•Belt speed and tube length can be produced according to customer requirements

•According to customer requirements, can produce a variety of non - standard motor roller

P_N kW	np	gs	i	V m/min	n_A min^-1	M_A Nm	F_N N	SL_min mm
0.18	4	2	12.50	46.82	108.0	19.70	286	300
			14.81	39.52	91.20	23.30	338	300
			20.63	28.37	65.40	32.50	471	300
		3	25.60	22.68	52.70	38.10	552	300
			30.34	19.29	44.50	45.10	654	300
			35.09	16.68	38.50	52.20	757	300
			39.39	14.86	34.30	58.60	850	300
			48.87	11.98	27.60	72.70	1054	300
			63.40	9.230	21.30	94.30	1368	300
			70.99	8.240	19.00	105.6	1531	300
0.37	2	2	12.50	97.11	224.0	14.10	204	300
			14.81	81.97	189.1	16.70	241	300
			20.63	58.84	135.7	23.20	336	300
		3	25.60	47.42	109.4	27.20	394	300
			30.34	40.01	92.30	32.20	467	300
			35.09	34.59	79.80	37.30	540	300
			39.39	30.82	71.10	41.80	606	300
			48.87	24.84	57.30	51.90	752	300
			63.40	19.15	44.20	67.30	976	300
			70.99	17.10	39.40	75.40	1093	300
0.55	4	2	12.50	46.82	108.0	43.30	628	300
			14.81	39.52	91.20	51.30	745	300
			20.63	28.37	65.40	71.50	1037	300
		3	25.60	22.86	52.70	83.80	1215	300
			30.34	19.29	44.50	99.30	1440	300
			35.09	16.68	38.50	114.9	1665	300
0.75	2	2	12.50	97.11	224.0	28.50	413	350
			14.81	81.97	189.1	33.80	490	350
			20.63	58.84	135.7	47.00	682	350
		3	25.60	47.42	109.4	55.10	799	350
			30.34	40.01	92.30	65.30	947	350
			35.09	34.59	79.80	75.50	1095	350
			39.39	30.82	71.10	84.80	1229	350
			48.87	24.84	57.30	105.2	1525	350

P_N：Rated power	np：Series	gs：Gear series
i：Reduction ratio of	v：Outside the rated speed	n_A：Outer tube rated speed
M_A：Motor roller rated torque	F_N：Traction force	SL_min：The shortest outer tube length

P_N kW	np	gs	i	V m/min	n_A min^-1	M_A Nm	F_N N	SL_min mm
0.37	4	2	9.860	48.63	137.0	19.30	340	300
			12.01	39.91	112.4	23.60	415	300
			15.26	31.41	88.50	30.00	527	300
			17.63	27.18	76.60	34.60	609	300
			20.99	22.84	49.30	41.20	725	300
			24.66	19.44	54.80	48.40	852	300
			27.38	17.50	49.30	53.70	946	300
			30.82	15.55	43.80	60.50	1065	300
			36.07	13.29	37.40	70.80	1246	300
			39.70	12.07	34.00	77.90	1372	300
			49.62	9.660	27.20	97.40	1714	300
0.55	2	2	9.860	100.86	284.1	13.90	244	300
			12.01	82.77	233.2	16.90	297	300
			15.26	65.15	183.5	21.50	378	300
			17.63	56.37	158.8	24.80	437	300
			20.99	47.36	133.4	29.50	520	300
			24.66	40.31	113.6	34.70	611	300
			27.38	36.31	102.3	38.50	678	300
			30.82	32.25	90.90	43.40	763	300
			36.07	27.55	77.60	50.80	893	300
			39.70	25.04	70.50	55.90	983	300
			49.62	20.03	56.40	69.80	1229	300
0 75	4	2	9.860	48.63	137.0	39.20	690	350
			12.01	39.91	112.4	47.80	841	350
			15.26	31.41	88.50	60.70	1068	350
			17.63	27.18	76.60	70.20	1235	350
			20.99	22.84	64.30	83.50	1470	350
			24.66	19.44	54.80	98.10	1727	350
			27.38	17.50	49.30	108.9	1917	350
			30.82	15.55	43.80	122.6	2158	350
			36.07	13.29	37.40	143.5	2526	350
			39.70	12.07	34.00	158.0	2780	350
1.10	2	2	9.860	100.86	284.1	27.70	488	350
			12.01	82.77	233.2	33.80	595	350
			15.26	65.15	183.5	42.90	756	350
			17.63	56.37	158.8	49.60	873	350
			20.99	47.36	133.4	59.10	1039	350
			24.66	40.31	113.6	69.40	1221	350
			27.38	36.31	102.3	77.00	1356	350
			30.82	32.25	90.90	86.70	1526	350
			36.07	27.55	77.60	101.5	1786	350
			39.70	25.04	70.50	111.7	1966	350
			49.62	20.03	56.40	139.6	2457	350

P_N：Rated power	np：Series	gs：Gear series
i：Reduction ratio of	v：Outside the rated speed	n_A：Outer tube rated speed
M_A：Motor roller rated torque	F_N：Traction force	SL_min：The shortest outer tube length

Standard Drum Length And Weight:
Outer Tube Length SL Unit: mm		300	350	400	450	500	550	600	650	700	750	800	850	900
Average Weight Unit: Kg		14.5	15.7	16.9	18.1	19.3	20.5	21.7	22.9	24.1	25.3	26.5	27.7	28.9
Maximum Power (kW)	4P	0.75
Maximum Power (kW)	2P	1.10
Slowest Ratio	71.88
Minimum Speed Ratio	9.86

Type	ΦA mm	ΦB mm

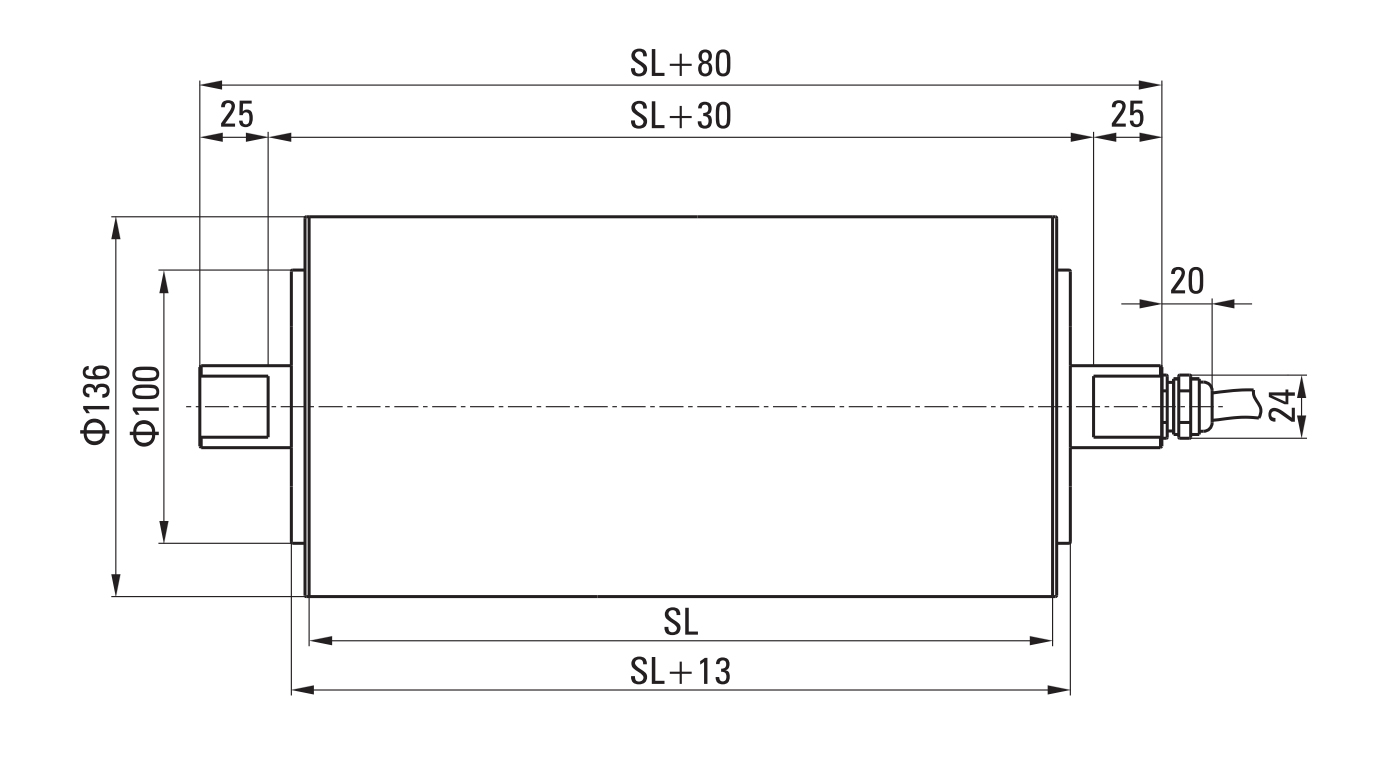

138i tube	138	136
138i cylindrical tube	138	138
138i cylindrical tube + key	138	138

Component Description	Motor Roller
Barrel
Carbon steel tube body	1
Carbon steel tubular	2
Stainless steel (standard 304) coronal tube body	2
Stainless steel (standard 304) straight tube	2
Special coronal and groove type	3
Front end cover
Cast aluminum cover	1
Nickel plated aluminum cover	2
Stainless steel (standard 304) end cover	2
Antero posterior axis
Carbon steel shaft	1
Stainless steel shaft	2
Motor
Single phase or three phase asynchronous motor	1
Voltage 1220V/50Hzor3380V/50Hz	1
Global common voltage under 50Hz or BOHz conditions	1
Motor overtheat protector	1
Low temperature environment	2
Food grade oil & fat (FDA and USDA)	2
Electrical connection

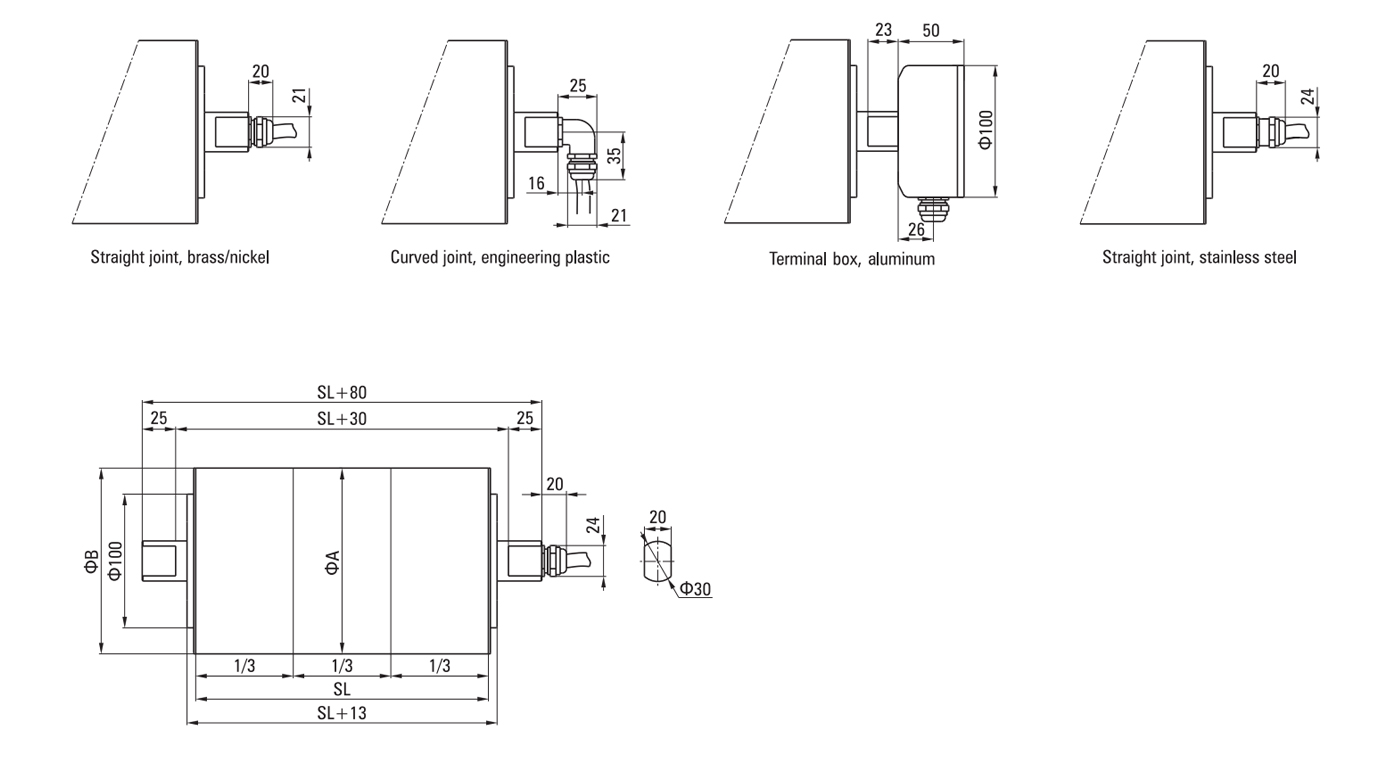

Stainless steel elbow	3
Straight curved line	1
PVC cable	1
Low smoke halogen free cable	2
Cast terminal box	1
Nickel plated aluminum terminal box	1
Stainless steel terminal box	1
Sidebar
Electromagnetic stop device	2
Vertical or inclined installation	3
Connected converter	2

Note：
1-Standard option	2-Non-standard option	3-Restrained option，contact manufacturer if needed
