90W Induction AC Motor/Gear Motor Suppliers

Home / Products / AC Motors/Gear Motors / Induction AC Motors / Gear Motors / 90W Induction AC Motor/Gear Motor

Model •Type
Upper:Pinion Shaft
Below:Round Shaft

Output power
W

Voltage
V

Frequency
Hz

Current
A

Starting Torque
mN.m

Rated
Torque
mN.m

Rated
Speed
r/min

Capacitor
μF

Lead Wire Type
Dimensions ①

Terminal Box Type
 Dimensions ②

5IK90GU-AF
(5IK90A-AF)

5IK90GU-AFT
(5IK90A-AFT)

90

1ph 100

50

1.55

450

700

1250

25.0

60

1.85

570

1550

5IK90GU-EF
(5IK90A-EF )

5IK90GU-EFT
(5IK90A-EFT)

90

1ph 110

60

1.40

500

570

1550

20.0

1ph 120

1.45

5IK90GU-CF
(5IK90A-CF)

5IK90GU-CFT
(5IK90A-CFT)

90

1ph 220

50

0.72

450

700

1250

5.0

1ph 230

0.70

5IK90GU-HF
(5IK90A-HF )

5IK90GU-HFT
(5IK90A-HFT)

90

1ph 220

60

0.71

450

570

1550

1ph 230

0.75

5IK90GU-SF
(5IK90A-SF)

5IK90GU-SFT
(5IK90A-SFT)

90

3ph 220

50

0.60

1350

700

1250

-

60

0.55

1100

570

1550

5IK90GU-S3F
(5IK90A-S3F)

5IK90GU-S3FT (5IK90A-S3FT)

90

3ph 380

50

0.35

1350

700

1250

-

60

0.32

1100

570

1550





●When the motor is approved under various safety standards,the model name on the nameplate is the approved model name.

●Note:"-A"it means the voltage 110V,the assembly capacitor vaule it is according the label.

●Motor

Type

Model

Pinion Shaft

Round Shaft

Lead
Wire
Type

5IK90GU-AF

5IK90A-AF

5IK90GU-EF

5IK90A-EF

5IK90GU-CF

5IK90A-CF

5IK90GU-HF

5IK90A-HF

5IK90GU-SF

5IK90A-SF

5IK90GU-S3F

5IK90A-S3F

Terminal
Box
Type

5IK90GU-AFT

5IK90A-AFT

5IK90GU-EFT

5IK90A-EFT

5IK90GU-CFT

5IK90A-CFT

5IK90GU-HFT

5IK90A-HFT

5IK90GU-SFT

5IK90A-SFT

5IK90GU-S3FT

5IK90A-S3FT





●Parallel Shaft Gearhead(Sold Separately)





 Gearhead Type

Gearhead Model

Gear Ratio

Long Life • Low Noise

5GU□KB

3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200

5GU10XK (Decimal Gearhead )





●Enter the gear ratio in the box (□) within the model name

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box(□)within the model name.

●The speed is calculated by dividing the motor's synchronous speed (50Hz : 1500r/min、60Hz : 1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 20 N.m.

Type
Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

41

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

9

5IK90GU-AF□
5IK90GU-EF□
5IK90GU-CF□
5IK90GU-HF□
5IK90GU-SF□

5GU□KB
5GU□K

50Hz

1.1

2.0

2.8

3.4

4.3

5.1

6.4

7.7

9.2

11.6

13.6

16.6

20

20

20

20

20

20

20

20

20

17.3

20.4

28.6

34.7

43.9

52.0

65.3

78.6

93.3

118

142

169

200

200

200

200

200

200

200

200

200

60Hz

1.4

1.7

2.3

2.8

3.5

4.2

5.2

6.2

7.5

9.4

11.3

13.5

18.8

20

20

18.8

20

20

20

20

20

14.3

17.3

23.5

28.6

35.7

42.9

53.1

63.3

76.5

95.9

115

138

19.2

200

200

192

200

200

200

200

200

Mounting screws are included with gearhead.

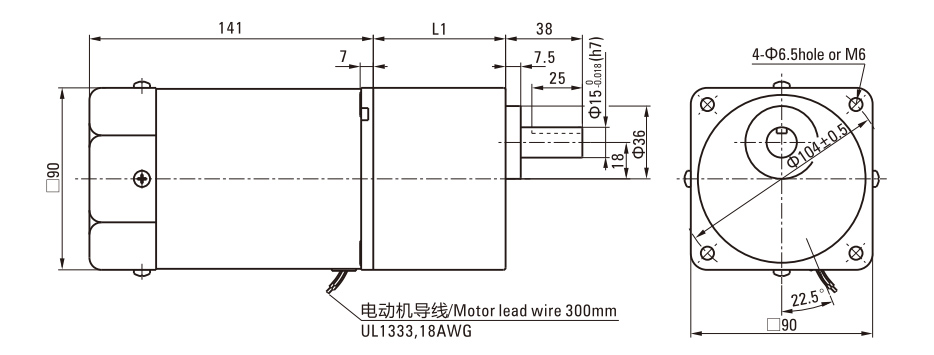

●Lead Wiring Type①

Weight:Motor:3.2kg Gearhead:1.5kg

Motor Model

Gearhead Model

Gear Ratio

L1

5IK90GU-AF
5IK90GU-EF
5IK90GU-CF
5IK90GU-HF
5IK90GU-SF
5IK90GU-S3F

5GU□KB

3~200

65.5

●Enter the gear ratio in the box (□) within the model name





●Terminal Box Type②

Weight:Motor:3.35kg Gearhead:1.5kg

●Use cable with a diameter of Φ6-Φ12mm

Motor Model

Gearhead Model

Gear Ratio

L1

5IK90GU-AFT
5IK90GU-EFT
5IK90GU-CFT
5IK90GU-HFT
5IK90GU-SFT
5IK90GU-S3FT

5GU□KB

3~200

65.5

●Enter the gear ratio in the box (□) within the model name

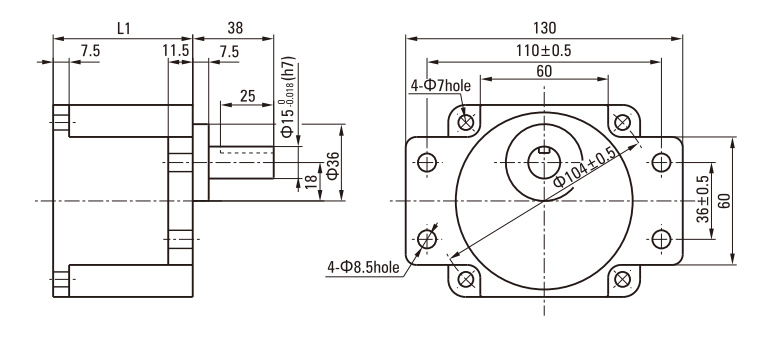

●Flange Mounting Reducer

Can be mounted on GU type gear shaft
5GU□K
Weight:1.5kg

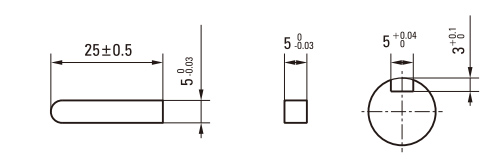

●Key•Keyway(Accessory Of Gearhead)





●Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.





●Decimal Gearhead

Can be connected to GU pinion shaft type
5GN10XK
Weight:0.65kg

Model

Capacitor Model

L

W

H

Pinion Shaft

Round Shaft

5IK90GU-AF□

5IK90A-AF□

ZD250CFAUL

47

27

37

5IK90GU-EF□

5IK90A-EF□

ZD200CFAUL

47

23

35

5IK90GU-CF□

5IK90A-CF□

ZD50BFAUL

47

20

31

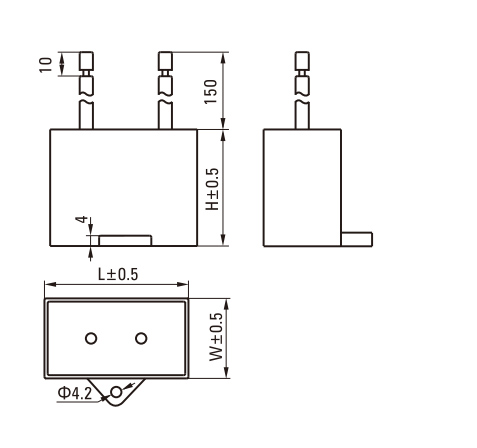

●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional





●Enter the code that represents the terminal box type (T) in the box (□) within the model name





■Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box (□) within the model name.

●The speed is calculated by diving the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a mid-gearbox(gear ratio:10)between the gearhead and motor. In that case,the permissible torque is 20N.m.





■Allowable Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed
r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

42

30

25

20

16

15

12

10

8

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

5IK90GU-AF□
5IK90GU-EF□
5IK90GU-CF□
5IK90GU-HF□
5IK90GU-SF□
5IK90GU-S3F□

5GU□RC
5GU□RT

Allowable Torque

50Hz

1.28

1.53

2.13

2.56

3.55

4.26

5.92

7.10

8.52

11.8

14.2

15.3

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

13.0

15.7

21.7

26.1

36.2

43.5

60.4

72.5

87.0

121

145

157

200

200

200

200

200

200

200

200

60Hz

1.03

1.24

1.72

2.06

2.86

3.44

4.77

5.73

6.87

9.54

11.5

12.4

17.2

20.0

20.0

20.0

20.0

20.0

20.0

20.0

10.5

12.6

17.5

21.0

29.2

35.1

48.7

58.4

70.1

97.4

117

126

175

200

200

200

200

200

200

200

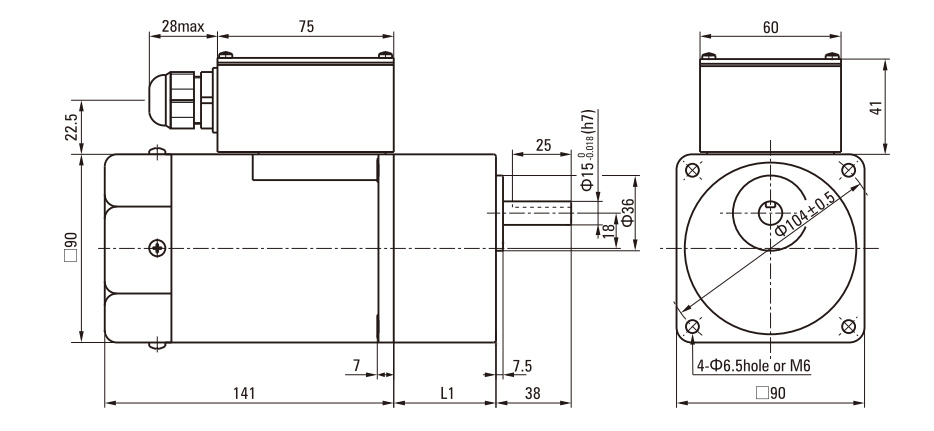

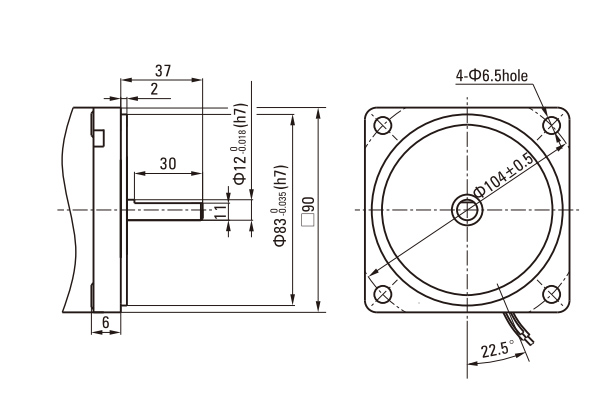

■Induction Type Drawing

■Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box (□) within the model name.

●The speed is calculated by diving the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a mid-gearbox (gear ratio:10) between the gearhead and motor. In that case, the permissible torque is 20N.m.





■Allowable Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed
r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

42

30

25

20

16

15

12

10

8

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

5IK90GU-AF□
5IK90GU-EF□
5IK90GU-CF□
5IK90GU-HF□
5IK90GU-SF□
5IK90GU-S3F□

5GU□RH
5GU□RA

Allowable
Torque

50Hz

0.93

1.11

1.39

1.67

2.09

2.51

3.48

4.18

5.01

6.96

8.35

10.0

13.9

16.7

20.0

20.0

20.0

20.0

20.0

20.0

9.47

11.4

14.2

17.0

21.3

25.6

35.5

42.6

51.1

71.0

85.2

102

142

170

204

200

200

200

200

200

60Hz

0.75

0.90

1.12

1.35

1.68

2.02

2.81

3.37

4.04

5.61

6.74

8.08

11.2

13.5

16.8

20.0

20.0

20.0

20.0

20.0

7.64

9.17

11.5

13.7

17.2

20.6

28.6

34.4

41.2

57.3

68.7

82.5

115

137

172

200

200

200

200

200

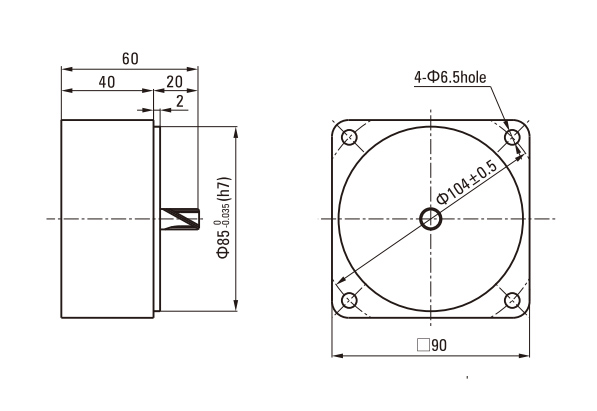

■Induction Type Drawing

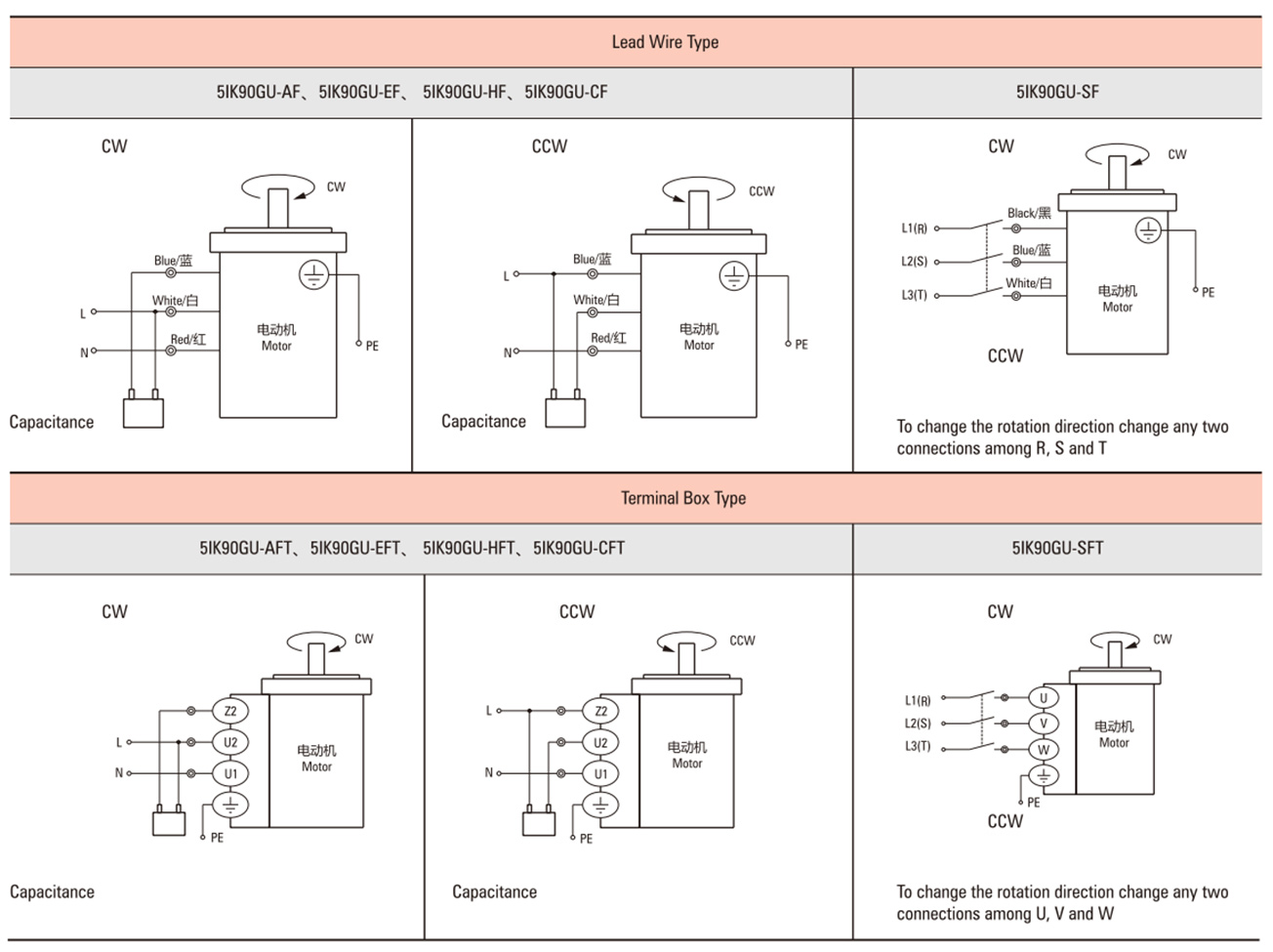

■Wiring Diagram

●The direction of motor rotation is as viewed from the shaft end of motor.CW represents the clockwise direction,while CCW represents the counterclockwise direction.

●Name indicated in the list is pinion shaft type,also valid for the equivalent round shaft type.









Note:

Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating,motor may ignore reversing command or change its direction of rotation after some delay.
