Model•Type
Lead Wire Type

Output power
W

Voltage
V

Frequency
Hz

Current
A

Starting
Torque
mN.m

Rated
Torque
mN.m

Rated
Speed
r/min

Capacitor
μF

Pinion Shaft

Round Shaft

2IK6GN-A

2IK6A-A

6

1ph 100

50

0.240

55

48

1200

3.5

60

0.250

50

40

1450

2IK6GN-E

2IK6A-E

6

1ph 110

60

0.160

40

40

1450

2

1ph 120

0.180

2IK6GN-C

2IK6A-C

6

1ph 220

50

0.130

50

48

1200

0.8

1ph 230

0.140

40

1450

2IK6GN-H

2IK6A-H

1ph 220

60

0.130

55

40

1450

1ph 230

0.140

2IK6GN-S

2IK6A-S

6

3ph 220

50

0.076

85

48

1200

-

60

0.065

70

40

1450

2IK6GN-S3

2IK6A-S3

6

3 ph 380

50

0.044

85

48

1200

-

60

0.038

70

40

1450





●When the motor is approved under various safety standards,the model name on the nameplate is the approved model name.

●Note:"-A"it means the voltage 110v,the assembly capacitor vaule it is according the label.

●Motor



Type

Model

Pinion Shaft

Round Shaft

Lead
Wire
Type

2IK6GN-A

2IK6A-A

2IK6GN-E

2IK6A-E

2IK6GN-C

2IK6A-C

2IK6GN-H

2IK6A-H

2IK6GN-S

2IK6A-S

2IK6GN-S3

2IK6A-S3





●Parallel Shaft Gearhead(Sold Separately)





Gearhead Type

Gearhead Model

Gear Ratio

Long Life • Low Noise

2GN□K

3、3.6、5、6、7.5、9、12.5、 15、18、25、30、36、50、60、 75、90、100、120、150、180、200

2GN10XK (Decimal Gearhead)





●Enter the gear ratio in the box (□) within the model name

●Gearhead and mid-gearbox can be sold separately.

●Enter the gear ratio in the box(□)within the model name.

●The speed is calculated by dividing the motor's synchronous speed (50Hz : 1500/min, 60Hz : 1800/min) by the gear ratio. The actual speed is 2%-20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3 N.m.

Type Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

41

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

9

2IK6GN-A
2IK6GN-E
2IK6GN-C
2IK6GN-H
2IK6GN-S 2IK6GN-S3

2GN□K

50Hz

0.12

0.14

0.19

0.23

0.29

0.35

0.49

0.58

0.70

0.88

1.1

1.3

1.6

1.9

2.4

2.9

3

3

3

3

3

1.22

1.43

1.94

2.35

2.96

3.57

5.0

5.92

7.14

8.98

11.2

13.3

16.3

19.4

24.5

29.6

30

30

30

30

30

60Hz

0.10

0.12

0.16

0.19

0.24

0.29

0.41

0.49

0.58

0.73

0.88

1.1

1.3

1.6

2.0

2.4

2.6

3

3

3

3

1.02

1.22

1.63

1.94

2.45

2.96

4.18

5.0

5.92

7.45

8.98

11.2

13.3

16.3

20.4

24.5

26.5

30

30

30

30

Mounting screws are included with gearhead.

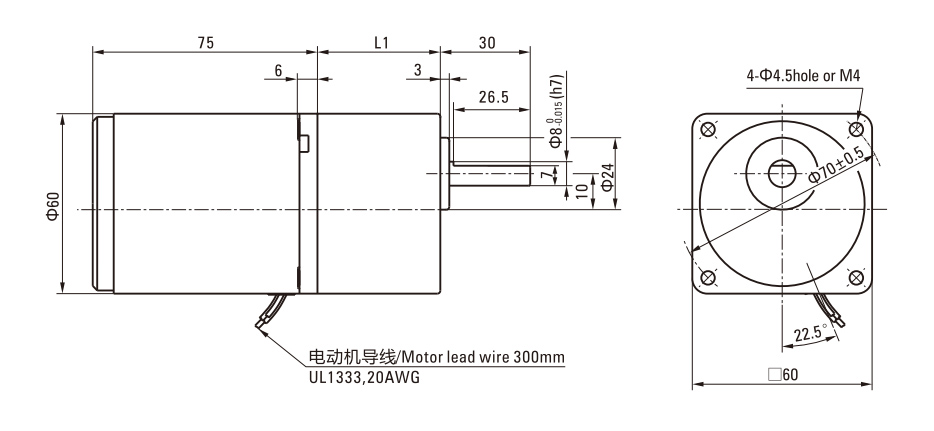

●Lead Wiring Type

Weight:Motor:0.75kg Gearhead:0.4kg

Motor Model

Gearhead Model

Gear Ratio

L1

2IK6GN-A
2IK6GN-E
2IK6GN-C
2IK6GN-H
2IK6GN-S
2IK6GN-S3

2GN□K

3~18

32

25~200

41.5





Enter the gear ratio in the box(□)within the model name

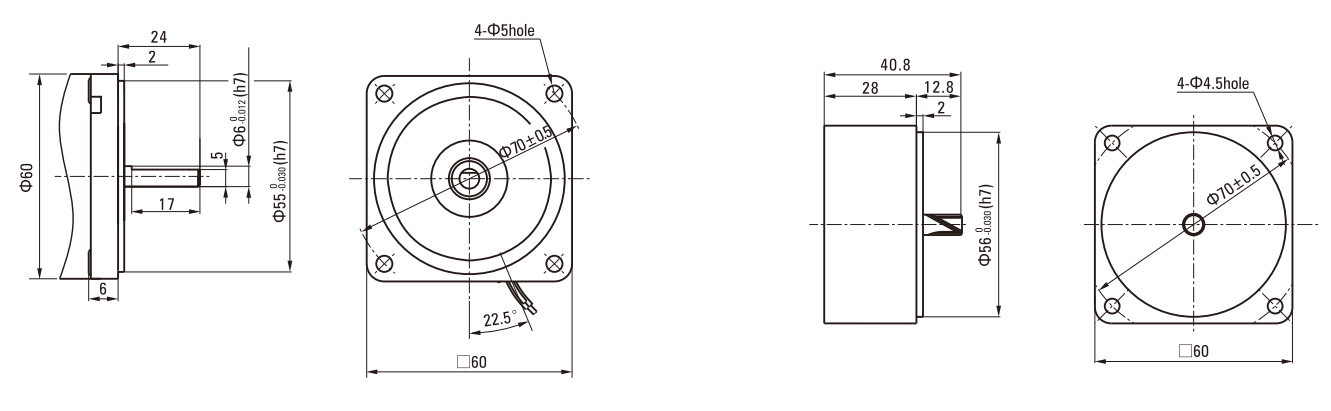

●Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.





●Decimal Gearhead

Can be connected to GN pinion shaft type
2GN10XK
Weight:0.2kg

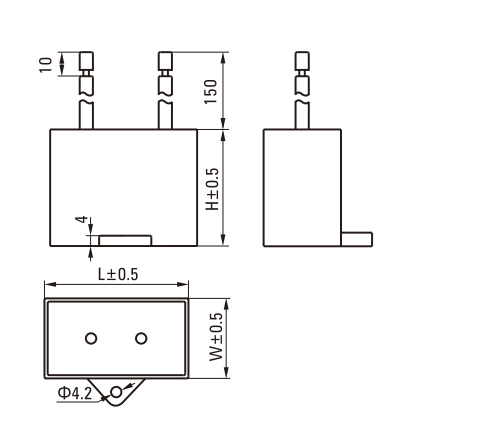

Model

Capacitor Model

L

W

H

Pinion Shaft

Round Shaft

2IK6GN-A

2IK6A-A

ZD35CFAUL

38

19.5

31

2IK6GN-E

2IK6A-E

ZD20CFAUL

36

15

25

2IK6GN-C

2IK6A-C

ZD08CFAUL

36

10.5

20





●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional

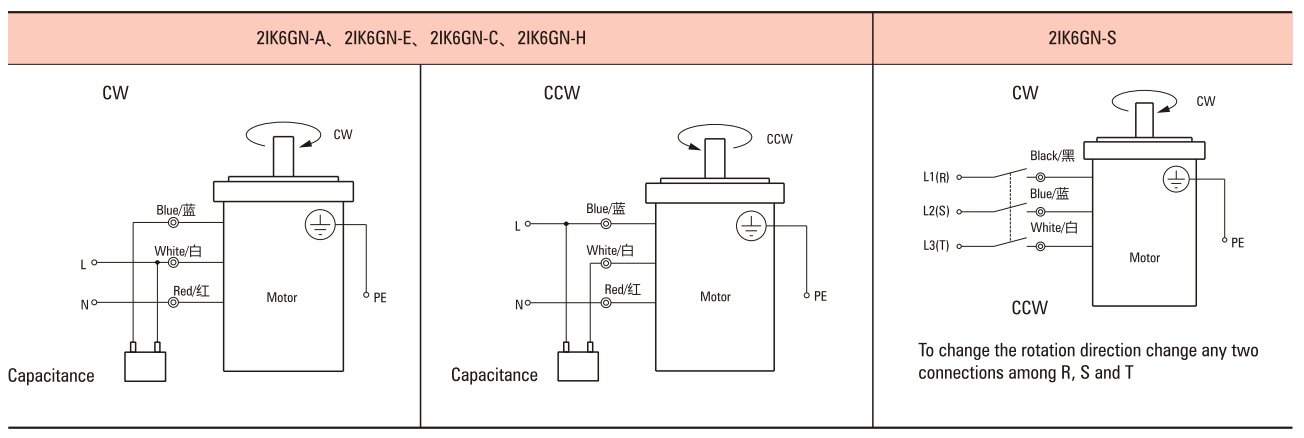

●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.

●Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.









Note:

Change the direction of single-phase motor rotation only after bring the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating,motor may ignore reversing command or change its direction of rotation after some delay.
