40W Induction AC Motor/Gear Motor Suppliers

Home / Products / AC Motors/Gear Motors / Induction AC Motors / Gear Motors / 40W Induction AC Motor/Gear Motor

Model •Type
Upper:Pinion Shaft
Below:Round Shaft

Output power
W

Voltage
V

Frequency
Hz

Current
A

Starting Torque
mN.m

Rated
Torque
mN.m

Rated
Speed
r/min

Capacitor
μF

Lead Wire Type Dimensions ①

Terminal Box Type  Dimensions ②

5IK40GN-A (5IK40A-A )

5IK40GN-AT (5IK40A-AT )

40

1ph 100

50

0.65

220

315

1250

12.0

60

0.70

260

1550

5IK40GN-E (5IK40A-E)

5IK40GN-ET (5IK40A-ET)

40

1ph 110

60

0.55

200

260

1550

8.0

1ph120

0.60

5IK40GN-C (5IK40A-C )

5IK40GN-CT (5IK40A-CT)

40

1ph 220

50

0.35

220

315

1250

2.5

1ph 230

0.40

5IK40GN-H (5IK40A-H)

5IK40GN-HT (5IK40A-HT)

40

1ph 220

60

0.35

200

260

1550

1ph 230

0.40

5IK40GN-S (5IK40A-S )

5IK40GN-ST (5IK40A-ST)

40

3ph 220

50

0.30

800

315

1250

-

60

0.25

660

250

1550

5IK40GN-S3 (5IK40A-S3)

5IK40GN-S3T (5IK40A-S3T)

40

3ph 380

50

0.17

800

315

1250

-

60

0.14

660

250

1550





●When the motor is approved under various safety standards,the model name on the nameplate is the approved model name.

●Note:90-40W right angle gear motor all motor is(GU)strength type.

●Note:"-A"it means the voltage 110v,the assembly capacitor vaule it is according the label.

●Motor

Type

Model

Pinion Shaft

Round Shaft

Lead
Wire
Type

5IK40GN-A

5IK40A-A

5IK40GN-E

5IK40A-E

5IK40GN-C

5IK40A-C

5IK40GN-H

5IK40A-H

5IK40GN-S

5IK40A-S

5IK40GN-S3

5IK40A-S3


Terminal
Box
Type

5IK40GN-AT

5IK40A-AT

5IK40GN-ET

5IK40A-ET

5IK40GN-CT

5IK40A-CT

5IK40GN-HT

5IK40A-HT

5IK40GN-ST

5IK40A-ST

5IK40GN-S3T

5IK40A-S3T





●Parallel Shaft Gearhead(Sold Separately)





 Gearhead Type

 Gearhead Model

Gear Ratio

Long Life • Low Noise

5GN□K

3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200

5GN10XK ( Decimal Gearhead )





●Enter the gear ratio in the box (□) within the model name

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box(□)within the model name.

●The speed is calculated by dividing the motor's synchronous speed (50Hz : 1500r/min、60Hz : 1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 10 N.m.

Type Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

41

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

9

5IK40GN-A□
5IK40GN-E□
5IK40GN-C□
5IK40GN-H□
5IK40GN-S□
5IK40GN-S3□

5GN□K

50Hz

0.77

0.92

1.3

1.5

1.9

2.3

3.2

3.8

4.6

5.7

6.9

8.3

10

10

10

10

10

10

10

10

10

7.85

9.38

13.2

15.3

19.4

23.4

32.6

38.7

46.9

58.1

70.4

84.7

100

100

100

100

100

100

100

100

100

60Hz

0.63

0.76

1.1

1.3

1.6

1.9

2.6

3.2

3.8

4.7

5.7

6.8

8.6

10

10

10

10

10

10

10

10

6.42

7.75

11.2

13.2

16.3

19.3

26.5

32.6

38.7

47.9

58.1

69.3

87.7

100

100

100

100

100

100

100

100

Mounting screws are included with gearhead.

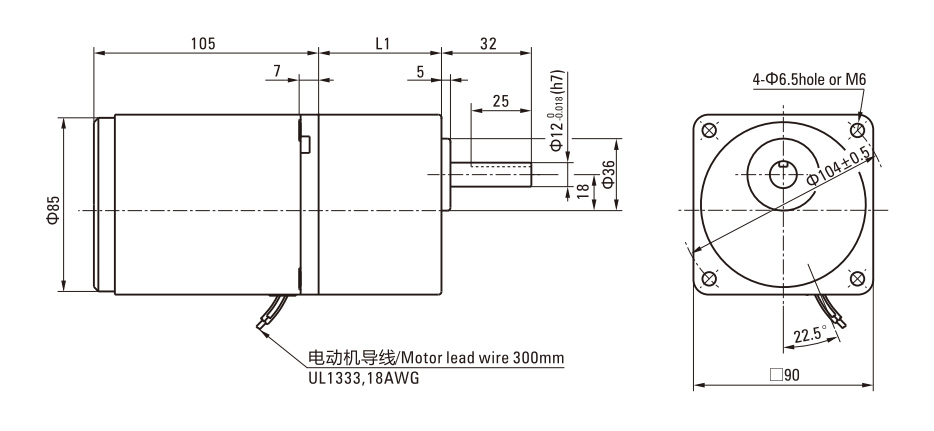

●Lead Wiring Type①

Weight:Motor:2.4kg Gearhead:1.35kg

Motor Model

Gearhead Model

 Gear Ratio

L1

5IK40GN-A
5IK40GN-E
5IK40GN-C
5IK40GN-H
5IK40GN-S
5IK40GN-S3

5GN□K

3~18

42

25~200

60

●Enter the gear ratio in the box (□) within the model name





●Terminal Box Type②

Weight:Motor:2.55kg Gearhead:1.35kg

Motor Model

Gearhead Model

Gear Ratio

L1

5IK40GN-AT
5IK40GN-ET
5IK40GN-CT
5IK40GN-HT
5IK40GN-ST
5IK40GN-S3T
5GN□K

3~18

42

25~200

60

●Enter the gear ratio in the box (□) within the model name

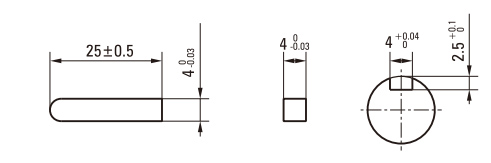

●Key•Keyway(Accessory Of Gearhead)

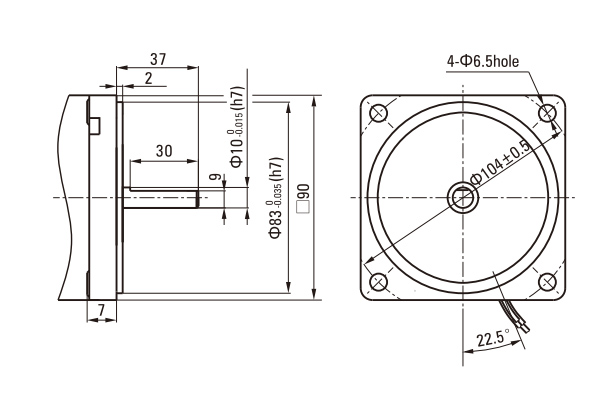

●Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

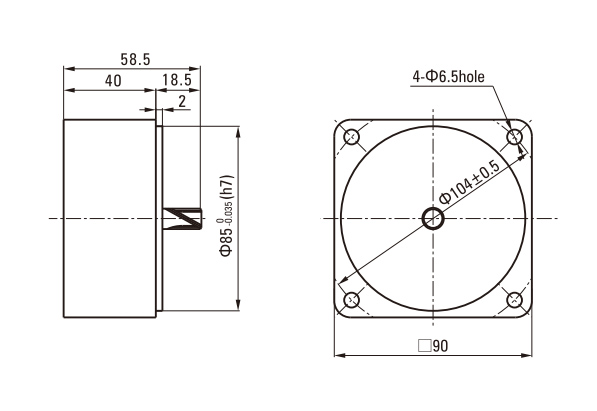

●Decimal Gearhead

Can be connected to GN pinion shaft type
5GN10XK
Weight:0.6kg

Model

Capacitor Model

L

W

H

Pinion Shaft

Round Shaft

5IK40GN-A□

5IK40A-A□

ZD120CFAUL

47

17

31

5IK40GN-E□

5IK40A-E□

ZD80CFAUL

48

26.5

38

5IK40GN-C□

5IK40A-C□

ZD25BFAUL

38

17

28

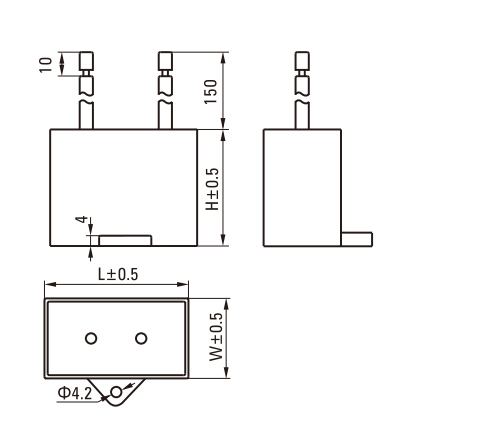

●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional





●Enter the code that represents the terminal box type (T) in the box (□ ) within the model name





■ Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box (□) within the model name.

●The speed is calculated by diving the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displaved value,depending on the size of the load.

●To reduce the speed beyond the qear ratio in the table, attach a mid-gearbox (gear ratio:10) between the gearhead and motor. In that case, the permissible torque is 20N.m.





■Allowable Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead

Gear Rato

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed
r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

42

30

25

20

16

15

12

10

8

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

5IK40GU-A□
5IK40GU-E□
5IK40GU-C□
5IK40GU-H□
5IK40GU-S□
5IK40GN-S3□

5GU□ RC
5GU□ RT

Allowable Torque

50Hz

0.57

0.68

0.59

1.14

1.58

1.89

2.63

3.16

3.79

5.26

6.31

6.8

9.5

11.4

14.2

17.0

18.9

20.0

20.0

20.0

5.80

6.96

9.66

11.6

16.1

19.3

26.8

32.2

38.6

53.7

64.4

70

97

116

145

174

193

200

200

200

60Hz

0.46

0.55

0.76

0.92

1.27

1.53

2.12

2.55

3.05

4.24

5.09

5.50

7.64

9.16

11.5

13.7

15.3

18.3

20.0

20.0

4.67

5.61

7.79

9.35

13.0

15.6

21.6

26.0

31.2

43.3

51.9

56.1

77.9

93.5

117

140

156

187

200

200

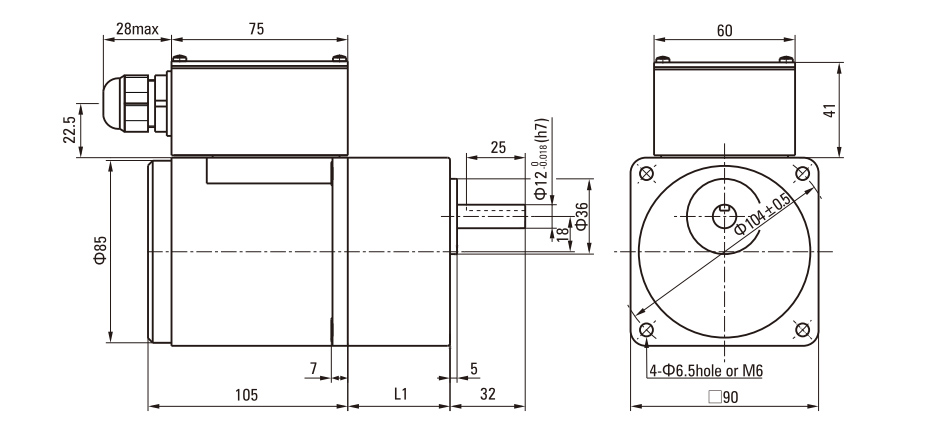

■Induction Type Drawing

■Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (口) within the model name.

Enter the gear ratio in the box (口) within the model name.

The speed is calculated by diving the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value,depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a mid-gearbox (gear ratio:10) between the gearhead and motor. In that case, the permissible torque is 20N.m.





■Allowable Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed
r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

42

30

25

20

16

15

12

10

8

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

5IK40GU-A□
5IK40GU-E□
5IK40GU-C□
5IK40GU-H□
5IK40GU-S□
5IK40GN-S3□

5GU□RH
5GU□RA

Allowable
Torque

50Hz

0.41

0.50

0.62

0.74

0.93

1.11

1.55

1.86

2.23

3.09

3.71

4.46

6.19

7.43

9.28

11.1

12.4

14.9

18.6

20.0

4.21

5.05

6.31

7.58

9.47

11.4

15.8

18.9

22.7

31.6

37.9

45.5

63.1

75.8

94.7

114

126

152

189

200

60Hz

0.33

0.40

0.50

0.60

0.75

0.90

1.25

1.50

1.80

2.50

2.99

3.59

4.99

5.99

7.49

8.98

9.98

12.0

15.0

18.0

3.39

4.07

5.09

6.11

7.64

9.17

12.7

15.3

18.3

25.5

30.6

36.7

50.9

61.1

76.4

91.7

102

122

153

183





■Induction Type Drawing





■Wiring Diagram

●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.

●Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.





Note:

Change the direction of single-phase motor rotation only after bring the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating,motor may ignore reversing command or change its direction of rotation after some delay.

Ningbo Zhongda Leader Intelligent Transmission Co., Ltd is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox. August 29, 2017, Zhongda went public in the Shenzhen Stock Exchange SME board A-shares (stock code 002896), As a one of the powerful 40W Induction AC Motor/Gear Motor manufacturers and 40W Induction AC Motor/Gear Motor suppliers in China. our company Participated in the drafting of 7 National Industrial Standards, Own 90 national patents, Have Zhejiang provincial enterprise R & D Center, our 40W Induction AC Motor/Gear Motor and other products are widely used in industrial robots, intelligent logistics, new energy, machine tools and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical, etc. for their differentiated and cost-effective advantages.

No. of Employees: 1,500 employees

Mission: Zhongda realizes the infinite possibilities in automation applications.

Main Business: It is a High-tech public enterprise specializing in research & development, manufacture, sales and service of motor driver, micro motor and high precision gearbox.

Main Products: Micro DC & AC gear motor, small AC gear motor, planetary gearbox, high precision cycloidal gearbox and motor driver, etc.

Tips: Not all gearbox catalogue listed. Feel free to inquire and get latest catalogue. Need solution? We'd like to help.
