We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.
|
Model•Type |
Output power |
Voltage |
Frequency |
Current |
Starting Torque |
Rated |
Rated |
Capacitor |
|
|
Pinion Shaft |
Round Shaft |
||||||||
|
0IK3GN-B |
0IK3A-B |
3 |
1ph 110 |
50 |
0.120 |
5 |
11 |
2500 |
1.5 |
|
60 |
0.130 |
10 |
3000 |
||||||
|
0IK3GN-D |
0IK3A-D |
3 |
1ph 220 |
50 |
0.060 |
5 |
11 |
2500 |
0.35 |
|
60 |
0.064 |
10 |
3000 |
||||||
●When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
|
Type |
Model |
|
|
Pinion Shaft |
Round Shaft |
|
|
Lead Wire Type |
0IK3GN-B |
0IK3A-B |
|
0IK3GN-D |
0IK3A-D |
|
|
Gearhead Type |
Gearhead Model |
Gear Ratio |
|
Long Life • Low Noise |
0GN□K |
3、3.6、5、6、7.5、9、 12.5、15、18、25、30、36、 50、 60 |
●Enter the gear ratio in the box (□) within the model name
●Gearhead are sold separately. Decimal gearheads are not available.
●Enter the gear ratio in the box（□） within the model name
●The speed is calculated by dividing the motor's synchronous speed（2P Type 50Hz ： 3000r/min ﹑60Hz ： 3600r/min） by the gear ratio. The actual speed is 2%~33% less than the displayed value, depending on the size of the load.
|
Type Motor/Gearhead |
Gear Ratio |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
|
|
Speed r/min |
50Hz |
1000 |
833 |
600 |
500 |
400 |
333 |
240 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
|
|
60Hz |
1200 |
1000 |
720 |
600 |
480 |
400 |
288 |
240 |
200 |
144 |
120 |
100 |
72 |
60 |
||
|
0IK3GN-B |
0GN□K |
50Hz |
0.027 |
0.032 |
0.045 |
0.053 |
0.067 |
0.080 |
0.10 |
0.12 |
0.14 |
0.18 |
0.22 |
0.26 |
0.36 |
0.44 |
|
0.28 |
0.33 |
0.46 |
0.54 |
0.68 |
0.82 |
1.02 |
1.22 |
1.43 |
1.84 |
2.24 |
2.65 |
3.67 |
4.49 |
|||
|
60Hz |
0.024 |
0.029 |
0.041 |
0.049 |
0.061 |
0.073 |
0.091 |
0.1 |
0.13 |
0.17 |
0.20 |
0.24 |
0.33 |
0.40 |
||
|
0.24 |
0.30 |
0.42 |
0.50 |
0.62 |
0.74 |
0.93 |
1.12 |
1.33 |
1.73 |
2.04 |
2.45 |
3.67 |
4.08 |
|||
Mounting screws are included with gearhead.

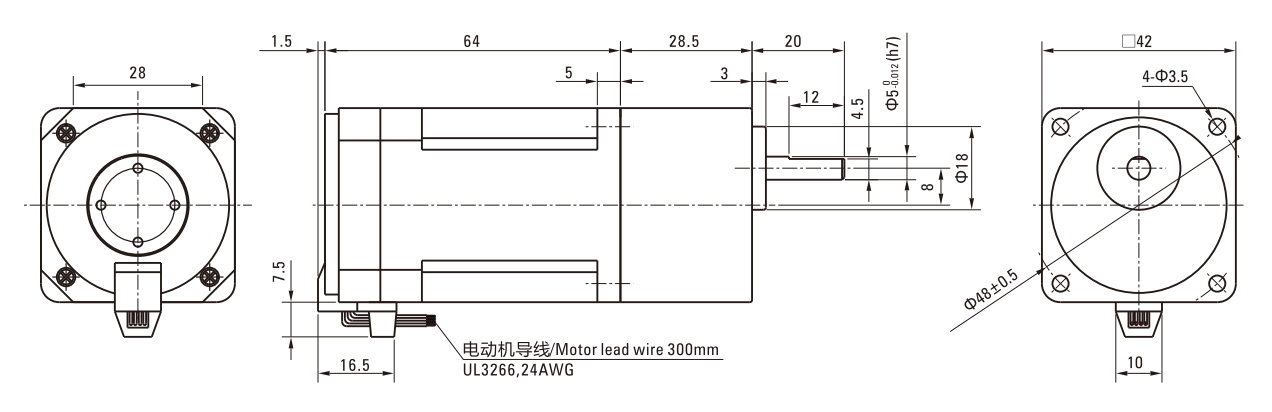

●Lead Wiring Type
Weight：Motor：0.3kg Gearhead：0.2kg

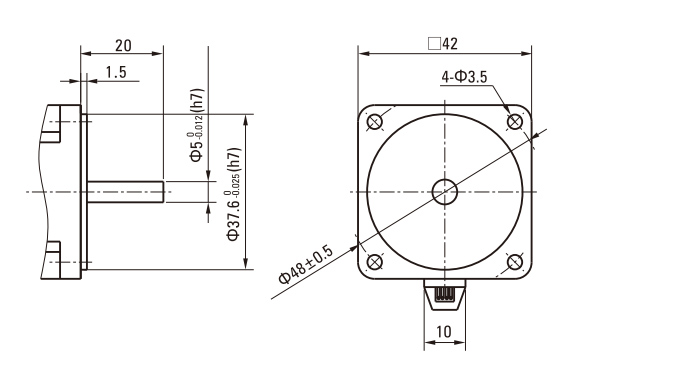

●Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
|

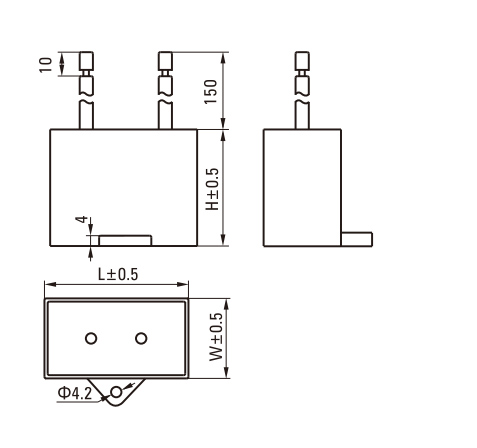

Model |
Capacitor Model |
L |
W |
H |
|
|
Pinion Shaft |
Round Shaft |
||||
|
0IK3GN-B |
0IK3A-B |
ZD15CFAUL |
36 |
12.5 |
24 |
|
0IK3GN-D |
0IK3A-D |
ZD035CFAUL |
26 |
8 |
17 |
●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional

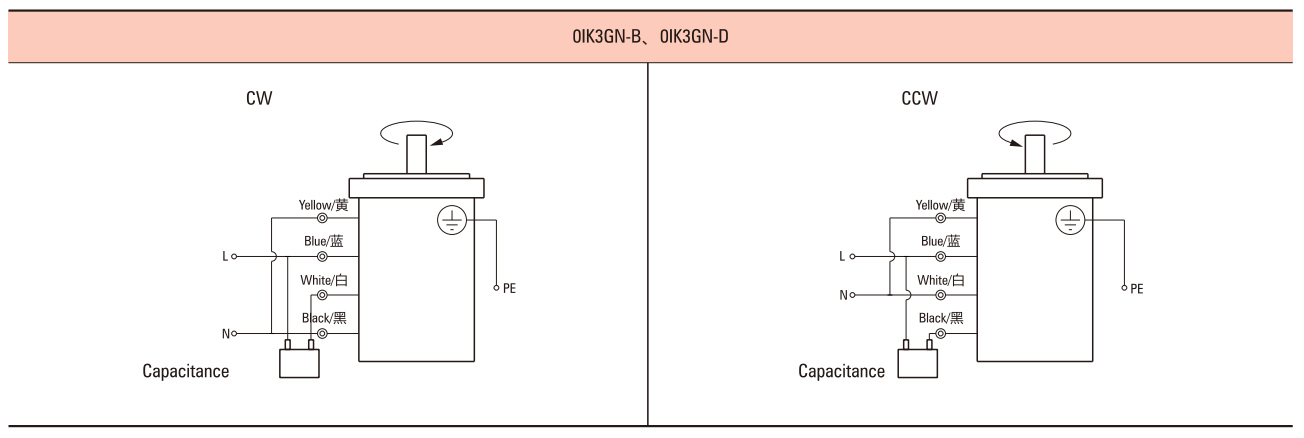

●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction
●Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Note:
Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating，motor may ignore reversing command or change its direction of rotation after some delay.
