Model •Type
Upper:Pinion Shaft
Below:Round Shaft

Output power
W

Voltage
V

Frequency
Hz

Current
A

Starting Torque
mN.m

Rated
Torque
mN.m

Rated
Speed
r/min

Capacitor
μF

Lead Wire Type
Dimensions ①

Terminal Box Type
Dimensions ②

6IK200GU-AF
(6IK200A-AF)

6IK200GU-AFT
(6IK200A-AFT)

200

1ph 100

50

3.2

900

1520

1250

45.0

60

3.5

1230

1550

6IK200GU-EF
(6IK200A-EF )

6IK200GU-EFT
(6IK200A-EFT)

200

1ph 110

60

2.75

850

1230

1550

35.0

1ph 120

2.65

6IK200GU-CF
(6IK200A-CF)

6IKZ00GU-CFT
(6IK200A-CFT)

200

1ph 220

50

1.40

1000

1520

1250

10.0

1ph 230

6IK200GU-HF
(6IK200A-HF)

6IK200GU-HFT
(6IK200A-HFT)

200

1ph 220

60

1.40

900

1230

1550

1ph 230

6IK200GU-SF
(6IK200A-SF)
6IK200GU-SFT
(6IK200A-SFT)

200

3ph 220

50

1.20

3400

1520

1250

-

60

1.0

2700

1230

1550

6IK200GU-S3F (6IK200A-S3F)
6IK200GU-S3FT (6IK200A-S3FT)

200

3ph 380

50

0.69

3400

1520

1250

-

60

0.58

2700

1230

1550





●When the motor is approved under various safety standards,the model name on the nameplate is the approved model name.

●Note:"-A"it means the voltage 110v,the assembly capacitor vaule it is according the label.

●Motor

Type

Model

Pinion Shaft

Round Shaft

Lead
Wire
Type

6IK200GU-AF

6IK200A-AF

6IK200GU-EF

6IK200A-EF

6IK200GU-CF

6IK200A-CF

6IK200GU-HF

6IKZ00A-HF

6IK200GU-SF

6IK200A-SF

6IK200GU-S3F

6IK200A-S3F

Terminal
Box
Type

6IK200GU-AFT

6IK200A-AFT

6IK200GU-EFT

6IK200A-EFT

6IK200GU-CFT

6IK200A-CFT

6IK200GU-HFT

6IK200A-HFT

6IK200GU-SFT

6IK200A-SFT

6IK200GU-S3FT

6IK200A-S3FT





●Parallel Shaft Gearhead(Sold Separately)





Geartiead Type

Geartiead Model

Gear Ratio

Long Life • Low Noise

6GU□K

3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200





●Enter the gear ratio in the box (□) within the model name

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box(□)within the model name.

●The speed is calculated by dividing the motor's synchronous speed (50Hz : 1500r/min、60Hz : 1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 20 N.m.

Type
Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

42

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

9

6IK200GU-AF□
6IK200GU-EF□
6IK200GU-CF□
6IK200GU-HF□
6IK200GU-SF□

6GU□K

50Hz

3.71

4.46

6.19

7.43

9.28

11.1

13.9

16.7

20.1

25.2

30.3

36.3

40

40

40

40

40

40

40

40

40

37.9

45.5

63.1

75.8

94.7

114

142

171

205

257

309

370

400

400

400

400

400

400

400

400

400

60Hz

2.99

3.59

4.99

5.99

7.49

8.98

11.2

13.5

16.2

20.3

24.4

29.3

40

40

40

40

40

40

40

40

40

30.6

36.7

50.9

61.1

76.4

91.7

115

138

165

207

249

299

400

400

400

400

400

400

400

400

400

Mounting screws are included with gearhead.

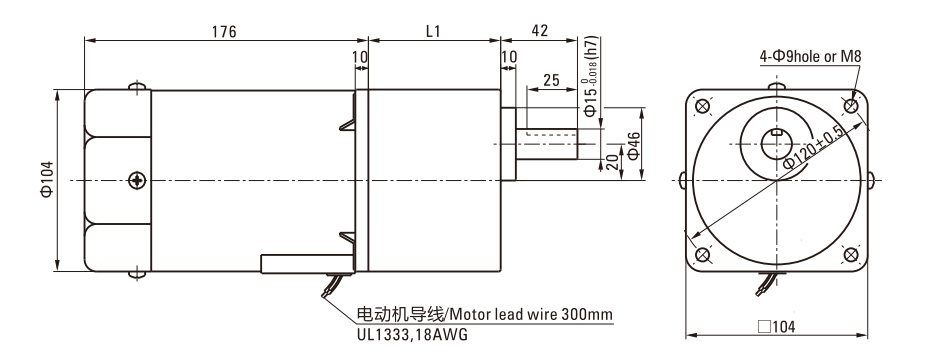

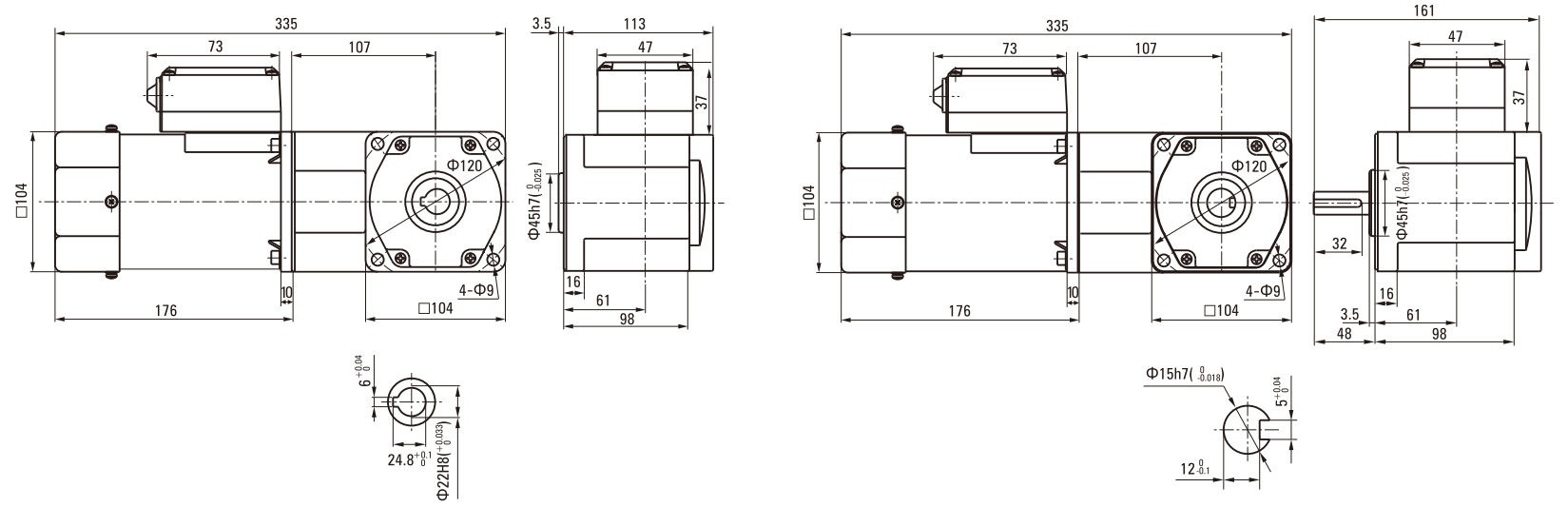

●Lead Wiring Type①

Weight:Motor:5.0kg Gearhead:2.1kg

Motor Model

Gearhead Model

Gear Ratio

L1

6IK200GU-AF

6GU□K

3~200

72

6IK200GU-EF

6IK200GU-CF

6IK200GU-HF

6IK200GU-SF

6IK200GU-S3F

●Enter the gear ratio in the box(□)within the model name

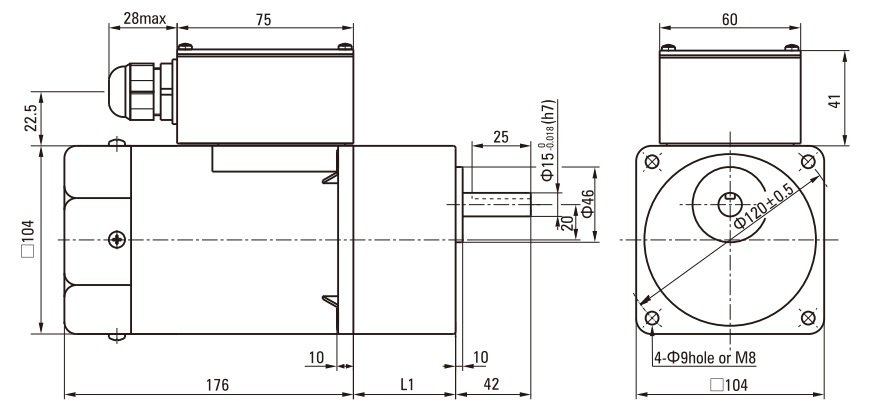

●Terminal Box Type②

Weight:Motor:5.15kg Gearhead:2.1kg

●Use cable with a diameter ofΦ6~Φ12mm

Motor Model

Gearhead Model

Gear Ratio

L1

6IK200GU-AFT

6GU□K

3~200

72

6IK200GU-EFT

6IK200GU-CFT

6IK200GU-HFT

6IK200GU-SFT

6IK200GU-S3FT

●Enter the gear ratio in the box (□) within the model name

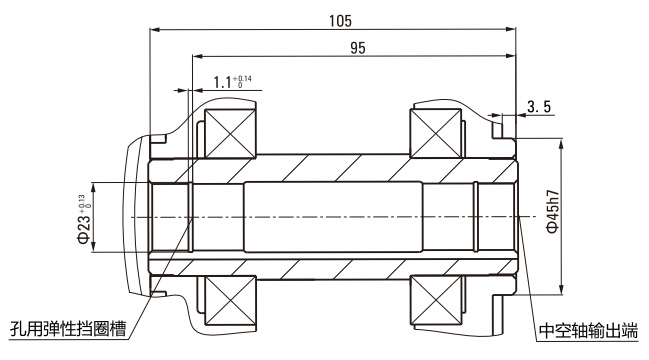

●Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

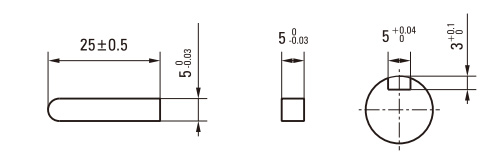

●Key•Keyway(Accessory Of Gearhead)

Model

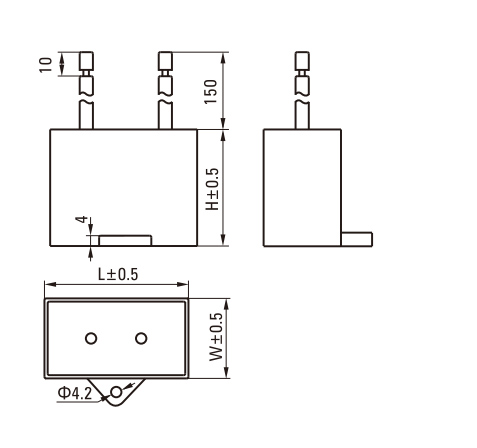

Capacitor Model

L

W

H

Pinion Shaft

Round Shaft

6IK200GU-AF

6IK200A-AF

ZD450CFAUL

70

38

52

6IK200GU-EF

6IK200A-EF

ZD350CFAUL

58

30

40

6IK200GU-CF

6IK200A-CF

ZD100BFAUL

58

26

38





●Note: Conventional capacitor is a lead wire type. Inserted 187# is optional





●Enter the code that represents the terminal box type (T) in the box (□) within the model name





■ Gear Motor-Torque Table

●Gearhead and mid-gearbox can be sold separately. Enter the code that represents the terminal box type (T) in the box (□) within the model name.

●Enter the gear ratio in the box (□) within the model name.

●The speed is calculated by diving the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%-20% less than the displayed value,depending on the size of the load.

●To reduce the speed beyond the gear ratio in the table. In that case, the permissible torque is 60N-m.





■Allowable Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead

Ratio

3

3.6

5

6

7.5

9

12.5

15

18

25

30

36

50

60

75

90

100

120

150

180

Speed r/min

50Hz

500

417

300

250

200

166

120

100

83

60

50

42

30

25

20

16

15

12

10

8

60Hz

600

500

360

300

240

200

144

120

100

72

60

50

36

30

24

20

18

15

12

10

6IK200GU-AF□
6IK200GU-EF□
6IK200GU-CF□
6IK200GU-HF□
6IK200GU-SF□
6IK200GU-S3F□

6GU□RC
6GU□RT

Allowable
Torque

50Hz

3.71

4.46

6.19

7.43

9.28

11.1

13.9

16.7

20.1

25.2

30.3

36.3

50.4

60.0

60.0

60.0

60.0

60.0

60.0

60.0

37.9

45.5

63.1

75.8

94.7

114

142

171

205

257

30.9

370

515

600

600

600

600

600

600

600

60Hz

2.99

3.59

4.99

5.99

7.49

8.98

11.2

13.5

16.2

20.3

24.4

29.3

40.7

48.8

60.0

60.0

60.0

60.0

60.0

60.0

30.6

36.7

50.9

61.1

76.4

91.7

115

138

165

207

249

299

415

498

600

600

600

600

600

600

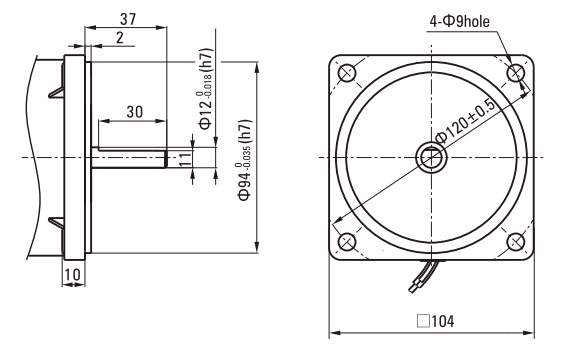

■Induction,Reversible Type Drawing

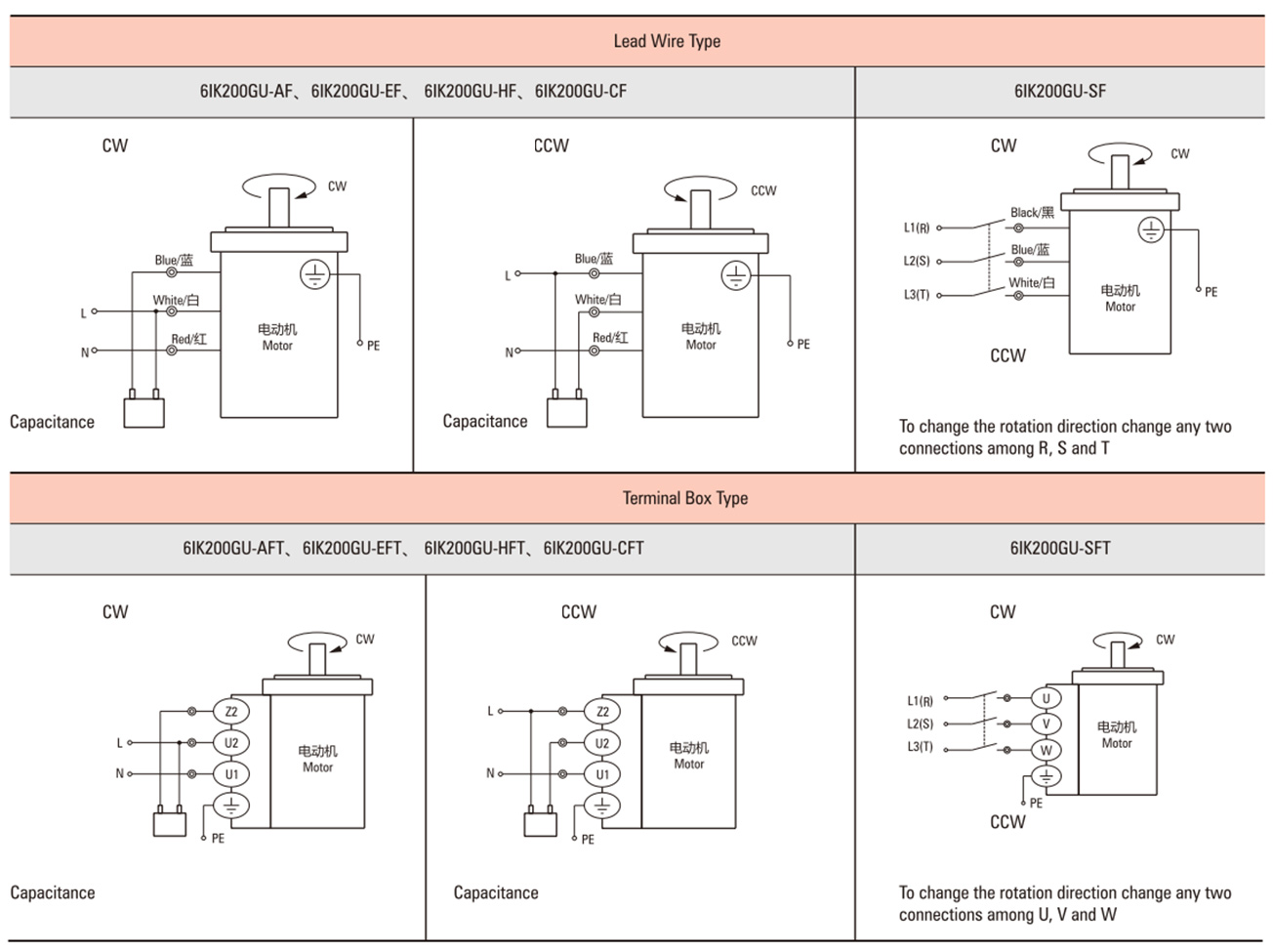

■Wiring Diagram

●The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction,while CCW represents the counterclockwise direction.
●Name indicated in the list is pinion shaft type,also valid for the equivalent round shaft type.









Note:

Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating,motor may ignore reversing command or change its direction of rotation after some delay.
