1500W~3700W Gearbox With Shaft Dia ф50mm With 3-Phase Small AC Gear Motor Suppliers

Home / Products / Small AC Gear Motor / 3-Phase Small AC Gear Motor / 1500W~3700W Gearbox With Shaft Dia ф50mm With 3-Phase Small AC Gear Motor

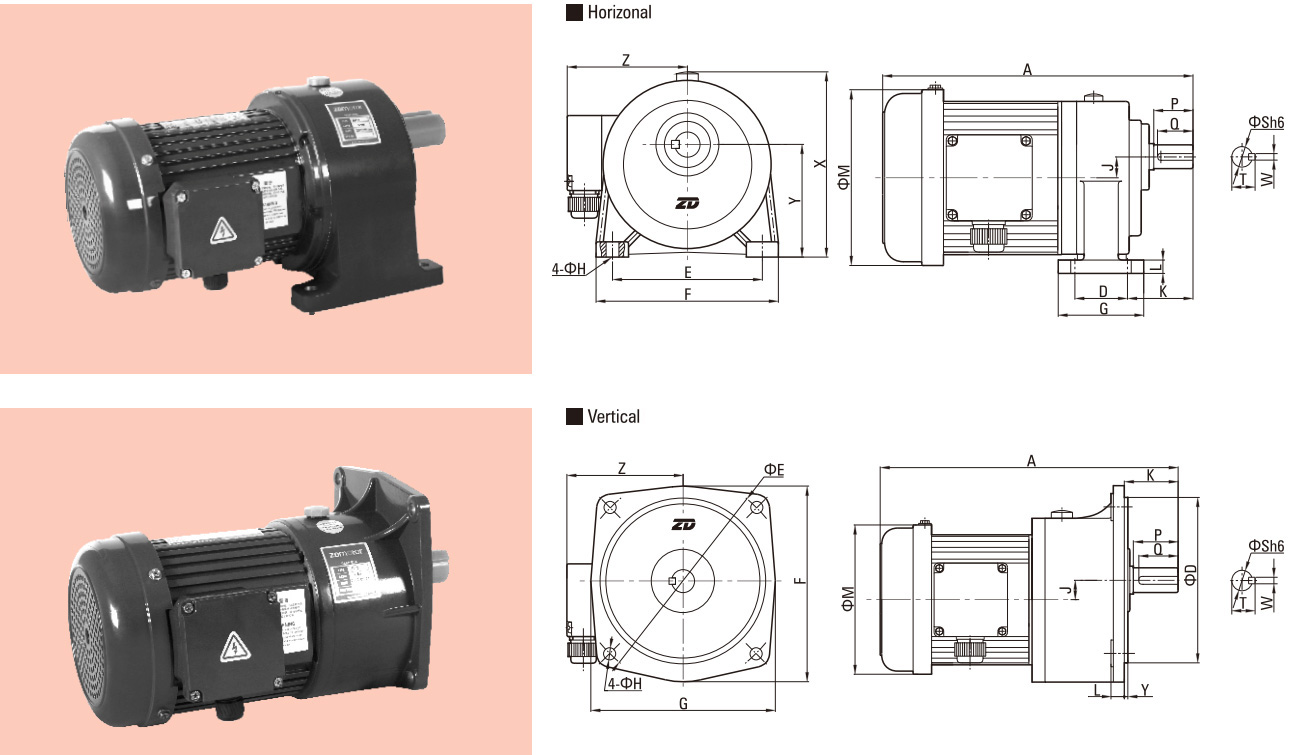

Power

Ratio

A

D

E

F

G

H

J

K

L

M

X

Y

Z

S

P

Q

W

T

Weight

1500W
2HP

Standard type110-180

560

170(280)

265(390)

335(367)

238(342)

18

51

97(92)

25

192

312(/)

200(5)

146

50

80

75

14

54

94.0

2200W
3HP

Standard type45-100

563

170(280)

265(390)

335(367)

238(342)

18

51

97(92)

25

213

312(/)

200(5)

160

50

80

75

14

54

97.0

3700W
5HP

Standard type15-60

605

170(280)

265(390)

335(367)

238(342)

18

51

97(92)

25

213

312(/)

200(5)

160

50

80

75

14

54

98.0





※ Labulation"()"denote vertical box dimension.





※ Note: In order to reach this ratio, must be used 6P motor.
