400W~3700W Gearbox With Shaft Dia ф40mm With 3-Phase Small AC Gear Motor Suppliers

Home / Products / Small AC Gear Motor / 3-Phase Small AC Gear Motor / 400W~3700W Gearbox With Shaft Dia ф40mm With 3-Phase Small AC Gear Motor

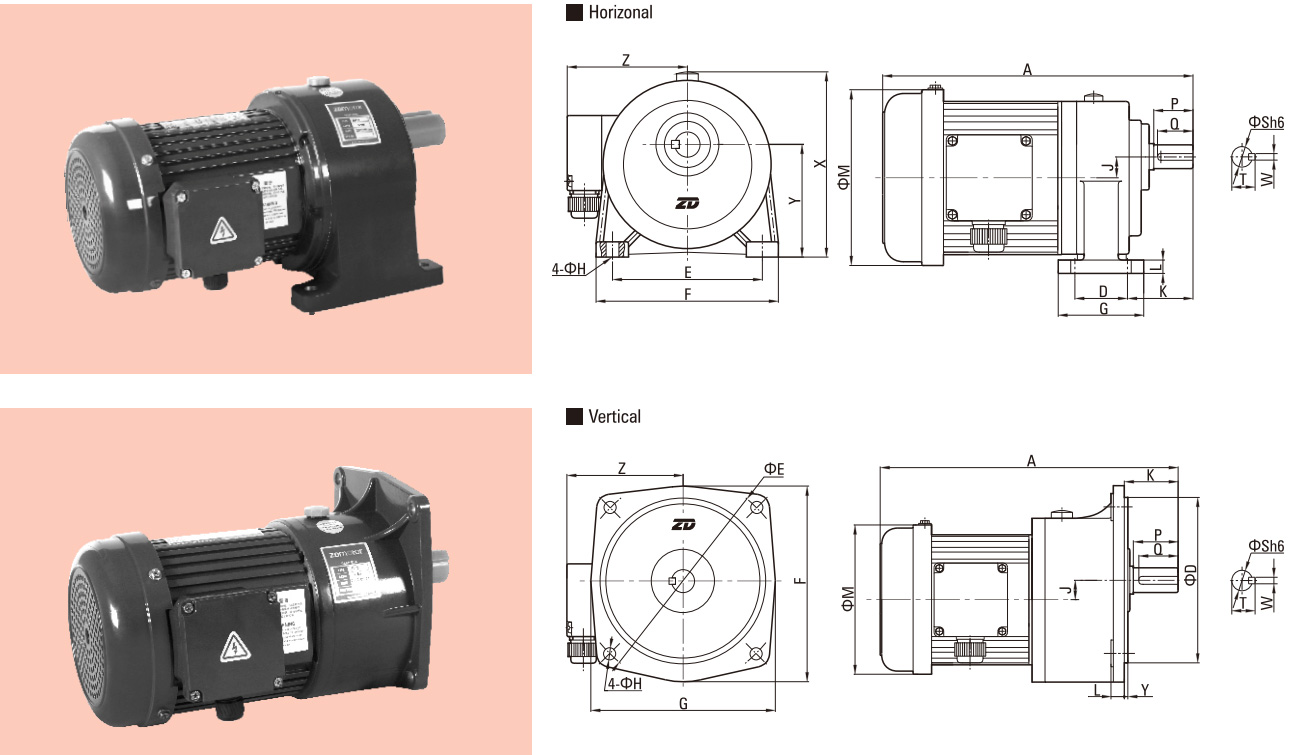

Power

Ratio

A

D

E

F

G

H

J

K

L

M

X

Y

Z

S

P

Q

W

T

Weight

400W
1/2HP

Standard type 250-1800 (3#+5#)

530

150(230)

210(310)

265(277)

203(255)

15

59

83

20(18)

172

255(/)

160(5)

126

40

65

60

10

43.5

46.0

Light duty type

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

750W
1HP

Standard type 125-200

455

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

172

255(/)

160(5)

126

40

65

60

10

43.5

42.5

Light duty type 250-1800 (3#+5#)

555

150(230)

210(310)

265(277)

203(255)

15

59

83

20(18)

172

255(/)

160(5)

126

40

65

60

10

43.5

50.0

1500W
2HP

Standard type 40-100

503

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

192

255(/)

160(5)

137

40

65

60

10

43.5

52.0

Light duty type 110-150

503

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

192

255(/)

160(5)

137

40

65

60

10

43.5

52.0

2200W
3HP

Standard type 3-40

506

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

213

255(/)

160(5)

160

40

65

60

10

43.5

58.0

Light duty type 45-80

506

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

213

255(/)

160(5)

160

40

65

60

10

43.5

58.0

3700W
5HP

Standard type 3-10

548

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

213

255(/)

160(5)

160

40

65

60

10

43.5

62.0

Light duty type 15-60

548

150(230)

210(310)

265(277)

203(255)

15

36

83

20(18)

213

255(/)

160(5)

160

40

65

60

10

43.5

62.0





※ Labulation"()" denote vertical box dimension.
