100W~1500W Gearbox With Shaft Dia ф28mm With 1-Phase Small AC Gear Motor Suppliers

Home / Products / Small AC Gear Motor / 1-Phase Small AC Gear Motor / 100W~1500W Gearbox With Shaft Dia ф28mm With 1-Phase Small AC Gear Motor

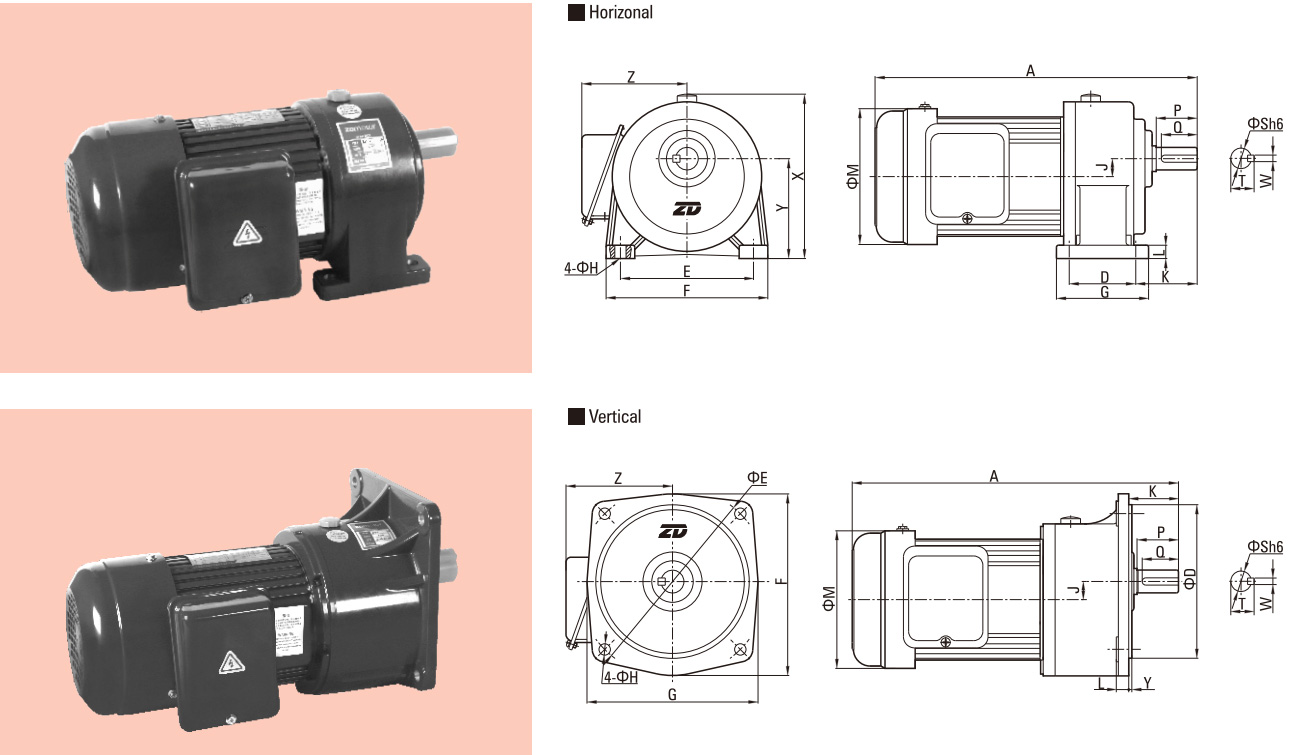

Power

Ratio

A

D

E

F

G

H

J

K

L

M

X

Y

Z

S

P

Q

W

T

Weight

100W
1/8HP

Standard type250-1800 (1#+3#)

375

90(170)

140(220)

178(205)

120(195)

12

39

68(58)

17(13)

133

178(/)

116(3)

120

28

45

40

7

31.1

14.5

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

200W
1/4HP

Standard type100-200

350

90(170)

140(220)

178(205)

120(195)

12

23

68(58)

17(13)

133

178(/)

116(3)

105

28

45

40

7

31.1

9.00

Light duty type250-1800 (1#+3#)

410

90(170)

140(220)

178(205)

120(195)

12

39

68(58)

17(13)

167

178(/)

116(3)

105

28

45

40

7

31.1

18.0

400W
1/2HP

Standard type15-90

390

90(170)

140(220)

178(205)

120(195)

12

23

68(58)

17(13)

167

178(/)

116(3)

135

28

45

40

7

31.1

14.0

Light duty type100-200

390

90(170)

140(220)

178(205)

120(195)

12

23

68(58)

17(13)

167

178(/)

116(3)

135

28

45

40

7

31.1

14.0

750W
1HP

Standard type3-25

410

90(170)

140(220)

178(205)

120(195)

12

23

68(58)

17(13)

167

178(/)

116(3)

135

28

45

40

7

31.1

16.0

Light duty type30-120

410

90(170)

140(220)

178(205)

120(195)

12

23

68(58)

17(13)

167

178(/)

116(3)

135

28

45

40

7

31.1

16.0

1500W
2HP

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

Light duty type3-30

418

90(170)

140(220)

178(205)

120(195)

12

23

68(58)

17(13)

192

193(/)

116(3)

139

28

45

40

7

31.1

25.0





※ Labulation"()"denote vertical box dimension.
