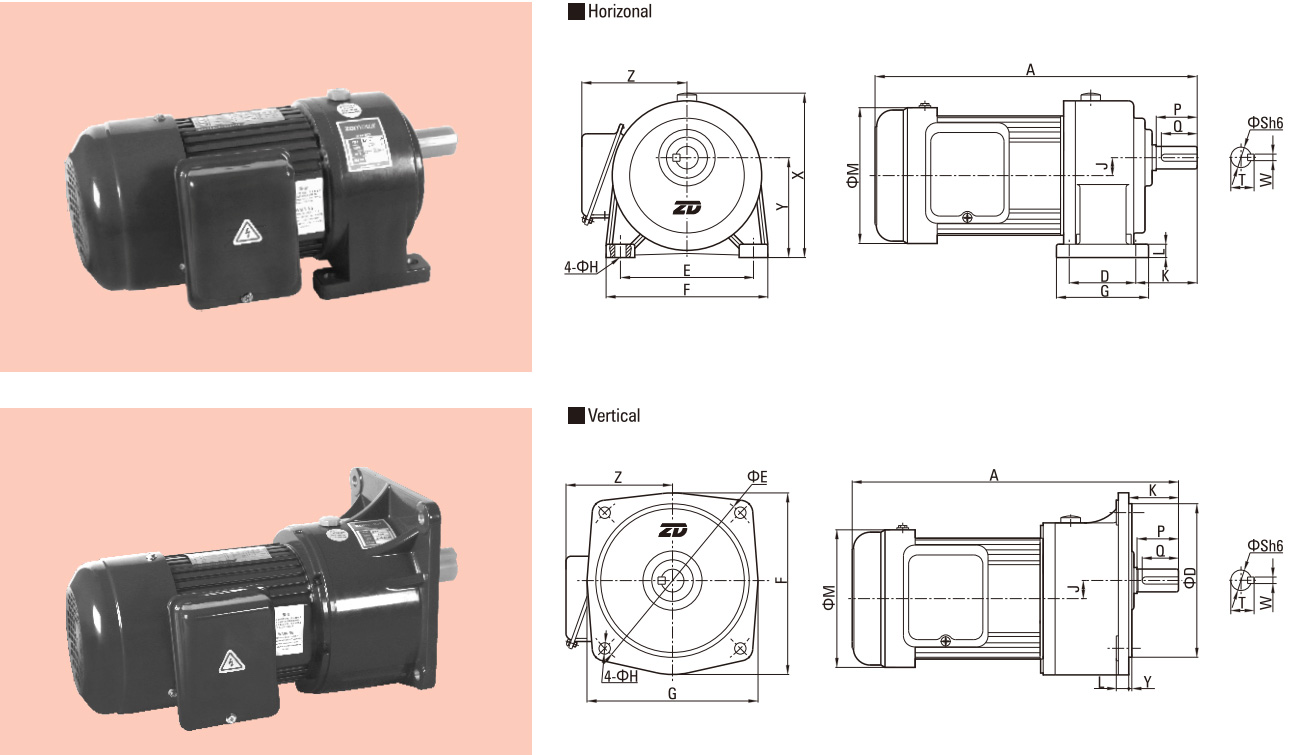

2#GEARBOX WITH SHAFT DIA Ф22mm WITH 1-PHASE MOTOR PARAMETERS
Power |
Ratio |
A |
D |
E |
F |
G |
H |
J |
K |
L |
M |
X |
Y |
Z |
S |
P |
Q |
W |
T |
Weight |
100W |
Standard type60-200 |
280 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
133 |
152(/) |
97.5(3) |
105 |
22 |
40 |
35 |
7 |
25 |
7.30 |
Light duty type250-180 (1#+2#) |
345 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
33.5 |
60(48) |
13(12) |
133 |
152(/) |
97.5(3) |
105 |
22 |
40 |
35 |
7 |
25 |
12.0 |
|
200W |
Standard type15-90 |
315 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
133 |
152(/) |
97.5(3) |
105 |
22 |
40 |
35 |
7 |
25 |
9.00 |
Light duty type100-200 |
315 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
133 |
152(/) |
97.5(3) |
105 |
22 |
40 |
35 |
7 |
25 |
9.00 |
|
400W |
Standard type3-10 |
360 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
167 |
152(/) |
97.5(3) |
135 |
22 |
40 |
35 |
7 |
25 |
11.5 |
Light duty type15-90 |
360 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
167 |
|
97.5(3) |
135 |
22 |
40 |
35 |
7 |
25 |
11.5 |
|
750W |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
Light duty type3-25 |
380 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
167 |
152(/) |
97.5(3) |
135 |
22 |
40 |
35 |
7 |
25 |
13.5 |
※ Labulation"()"denote vertical box dimension.
