We can provide customized products and project products according to specific requirements. Please feel free to contact us if you need.
|
Model •Type |
Output |
Voltage |
Frequency |
Current |
Starting |
Rated |
Rated |
Capacitor |
|
|
Pinion Shaft |
Round Shaft |
||||||||
|
2RK6GN-A |
2RK6A-A |
6 |
1ph 100 |
50 |
0.265 |
60 |
48 |
1200 |
4.0 |
|
60 |
0.232 |
55 |
40 |
1450 |
|||||
|
2RK6GN-E |
2RK6A-E |
6 |
1ph 110 |
50 |
0.185 |
45 |
40 |
1450 |
2.5 |
|
1ph 120 |
60 |
0.200 |
|||||||
|
2RK6GN-C |
2RK6A-C |
6 |
1ph 220 |
50 |
0.145 |
55 |
48 |
1200 |
1.0 |
|
1ph 230 |
60 |
0.150 |
|||||||
|
2RK6GN-H |
2RK6A-H |
6 |
1ph 220 |
50 |
0.145 |
40 |
60 |
1450 |
1.0 |
|
1ph 230 |
60 |
0.150 |
|||||||
●Values shown for rated torque and starting torque are measured for operation without the friction brake installed.
●When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
●Contains a built-in thermal protector(automatic return). If a motor overheats for any reason, the thermal protector is opened and the motor stops.
●When the motor temperature drops, the thermal protector closes and the motor restarts. Be sure to turn the motor off before inspecting.
●Note:"-A"it means the voltage 110v, the assembly capacitor vaule it is according the label.
|
Type |
Model |
|
|
Pinion Shaft |
Round Shaft |
|
|
Lead |
2RK6GN-A |
2RK6A-A |
|
2RK6GN-E |
2RK6A-E |
|
|
2RK6GN-C |
2RK6A-C |
|
|
2RK6GN-H |
2RK6A-H |
|
|
Gearhead Type |
Gearhead Model |
Gear Ratio |
|
Long Life•Low |
2GN□K |
3、3.6、5、 6、7.5、9、 12.5、15、18、25、30、 36、 50、 60、 75、90、100、 120、 150、 180、 200 |
|
2GN10XK ( Decimal Gearhead ) |
||
•Enter the gear ratio in the box(□)within the model name
•Gearhead and mid-gearbox can be sold separately.
•Enter the gear ratio in the box（口）within the model name.
•The speed is calculated by dividing the motor's synchronous speed（50Hz：1500r/min，60Hz：1800/min）by the gear ratio.The actual speed is 2%~ 20% less than the displayed value，depending on the size of the load.
•To reduce the speed beyond the gear ratio in the table，attach a decimal gearhead(gear ratio：10)between the gearhead and motor.In that case，the permissible torque is 3 N.m.
|
Type |
Gear Ratio |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
Speed r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
41 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
144 |
120 |
100 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
2RK6GN-A |
2GN口K |
50Hz |
0.12 |
0.14 |
0.19 |
0.23 |
0.29 |
0.35 |
0.49 |
0.58 |
0.70 |
0.88 |
1.1 |
1.3 |
1.6 |
1.9 |
2.4 |
2.9 |
3 |
3 |
3 |
3 |
3 |
|
1.22 |
1.43 |
1.94 |
2.35 |
2.96 |
3.57 |
5.0 |
5.92 |
7.14 |
8.98 |
11.2 |
13.3 |
16.3 |
19.4 |
24.5 |
29.6 |
30 |
30 |
30 |
30 |
30 |
|||
|
60Hz |
0.10 |
0.12 |
0.16 |
0.19 |
0.24 |
0.29 |
0.41 |
0.49 |
0.58 |
0.73 |
0.88 |
1.1 |
1.3 |
1.6 |
2.0 |
2.4 |
2.6 |
3 |
3 |
3 |
3 |
||
|
1.02 |
1.22 |
1.63 |
1.94 |
2.45 |
2.96 |
4.18 |
5.0 |
5.92 |
7.45 |
8.98 |
11.2 |
13.3 |
16.3 |
20.4 |
24.5 |
2.65 |
30 |
30 |
30 |
30 |
|||
Mounting screws are included with gearhead.

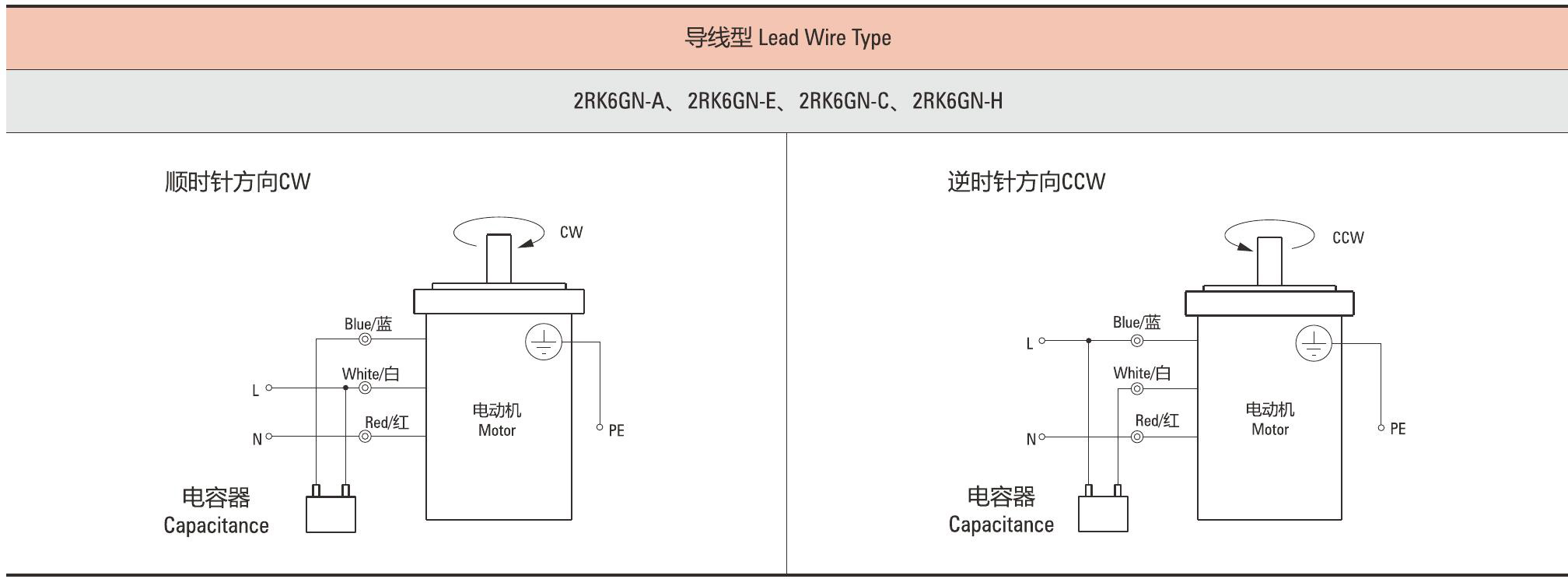

•Lead Wiring Type
Weight：Motor：0.8kg Gearhead：0.4kg
 |
|
||||||||||
|
• Shaft Section Of Round Shaft Type Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
|
•Decimal Gearhead Can be connected to GN pinion shaft type 2GN10XK Weight : 0.24kg
|
|

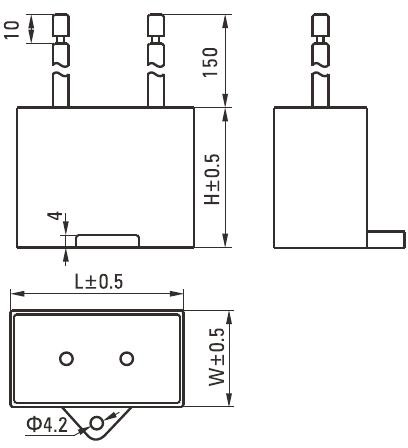

Model |
Capacitor Model |
L |
W |
H |
|
|
Pinion Shaft |
Round Shaft |
||||
|
2RK6GN-A |
2RK6A-A |
ZD40CFAUL |
47 |
17 |
31 |
|
2RK6GN-E |
2RK6A-E |
ZD25CFAUL |
38 |
17 |
28 |
|
2RK6GN-C |
2RK6A-C |
ZD10CFAUL |
36 |
11 |
22 |
•Note: Conventional capacitor is a lead wire type.
•The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.
•Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Note：
Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating, motor may ignore reversing command or change its direction of rotation after some delay.
