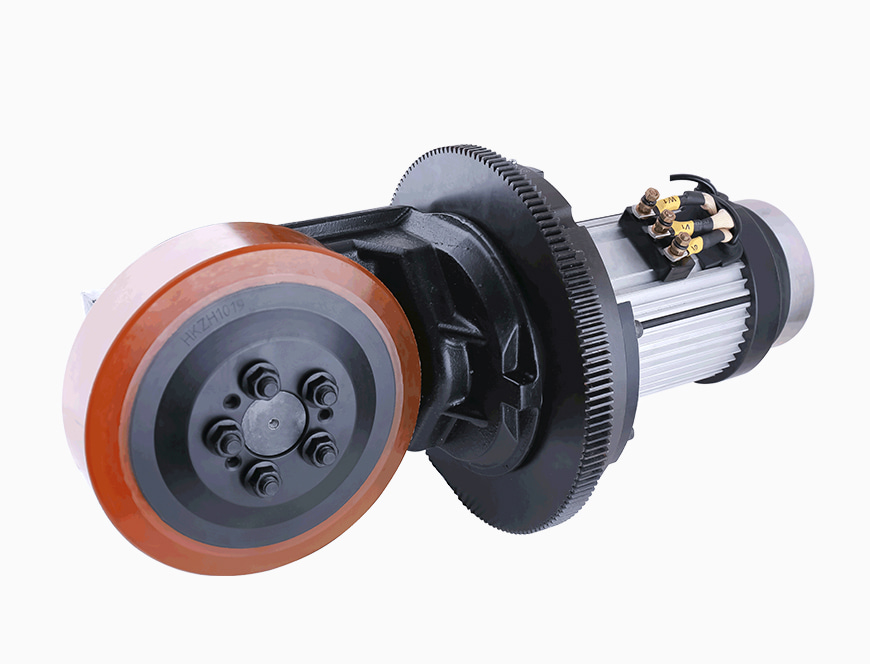

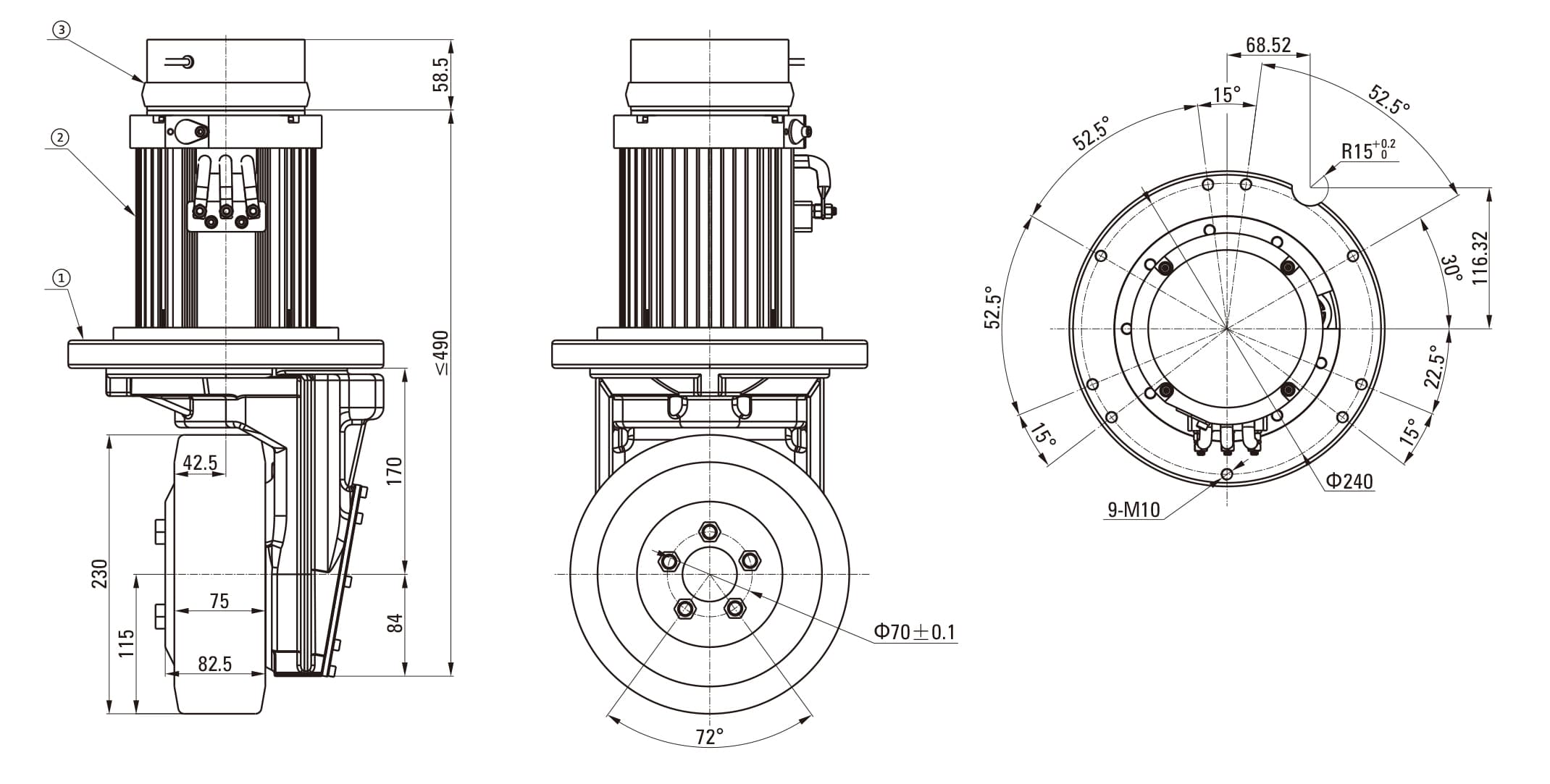

① Geared drive wheel basic performance specs |
|||||
| Model |
Ratio |
Wheel diameter |
Reducer rated load |
Drive wheel output torque |
Drived steer or not |
|
ZV-230-004 |
21.5K/25.59K |
230mm |
1300Kg |
96.3N.m/114.6N.m |
No drived steer |
|
② Table of basic performance parameters of gearbox motor |
|||||||||||||
|
Model |
Rated voltage |
Rated power |
Rated current |
Rated speed |
Rated torque |
Work duty |
Insulation resistance |
Protetion grade |
Anbient temperature |
Noise |
Temperature sensor |
Encoder |
|
|
ZDL-1.5KW-S16V |
16V/90Hz AC (Controler 24V DC) |
1.5KW |
76A |
2590rpm |
5.5N.m |
S2-60min |
F |
Ip42 |
-10℃~+40℃ |
＜75dB (L=100cm) |
KTY84-150+ Black AMP two core terminal seat |
48 bites+ black AMP four core terminal seat |
a. VCC（YEL） b. OUT A（WHT） c. OUT B（BLU） d.GND（BLK） Speed sensor |
|
③ Brake basic performance specs |
|||||
|
Model |
Rated voltage |
Rated power |
Brake torque |
Release voltage |
Clutch voltage |
|
CDC-C10(24V15)16G |
24V DC |
30W |
16N.m |
＞1.5V DC |
＜16.8V DC |
